Name: Circulation heating system Mod. 303
Brand: Patura
SKU: 1010303
Price: 1299.0 CHF
Availability: InStock

Sanilu_Umlaufheizsystem-Mod300-303-3017_Patura

Thermostat-controlled temperature regulation
Energy-efficient 3 kW heating coil
Fully assembled and ready for connection

Artikelnummer: 1010303

Price
You save CHF 57!

incl. VAT Shipping information

Delivery time 5-10 working days

Product family

Quantity

Order now

Water meter Default Title

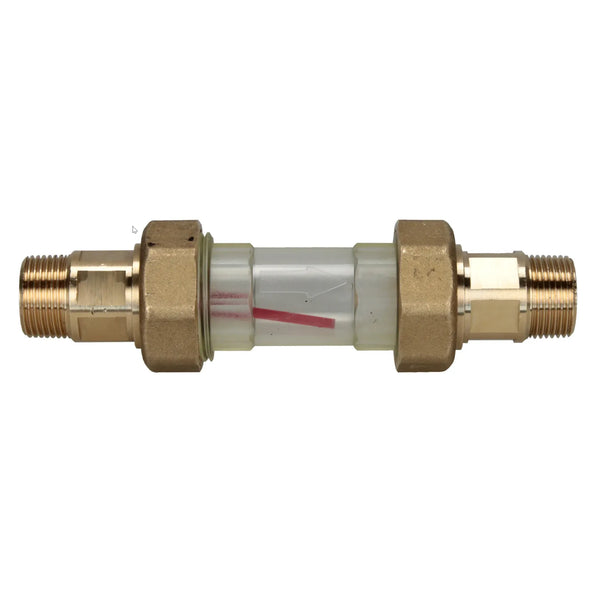

Flow rate indicator for 3/4" connection

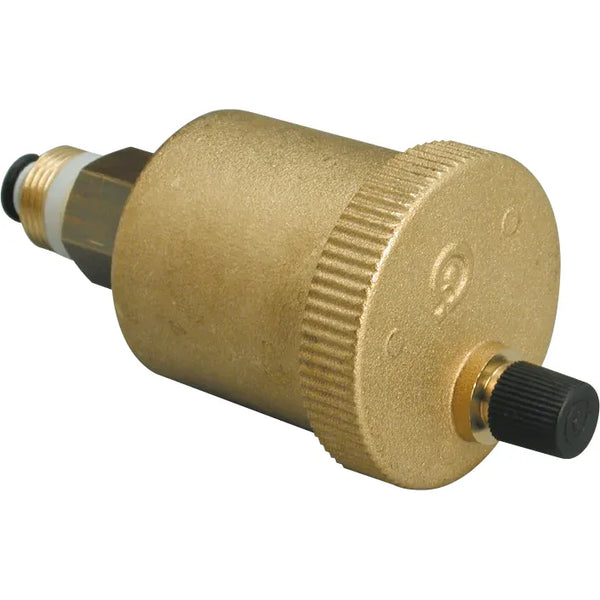

Automatic air vent valve Default Title

Pipe protection Hot-dip galvanized steel

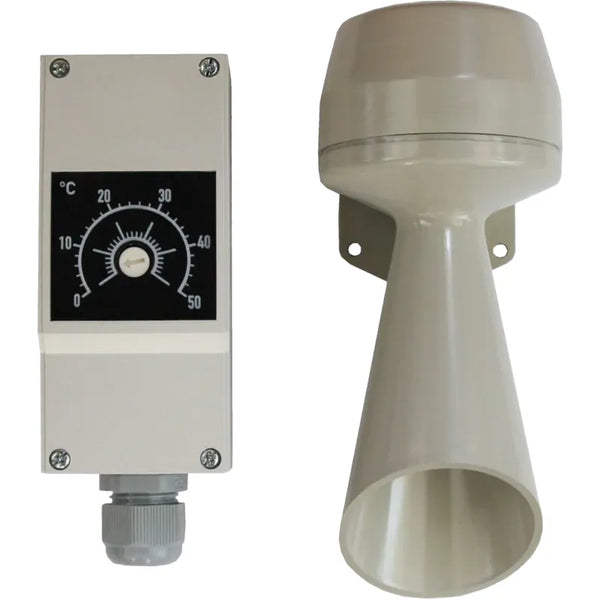

Warning system for circulation heating system Default Title

Ideal für:

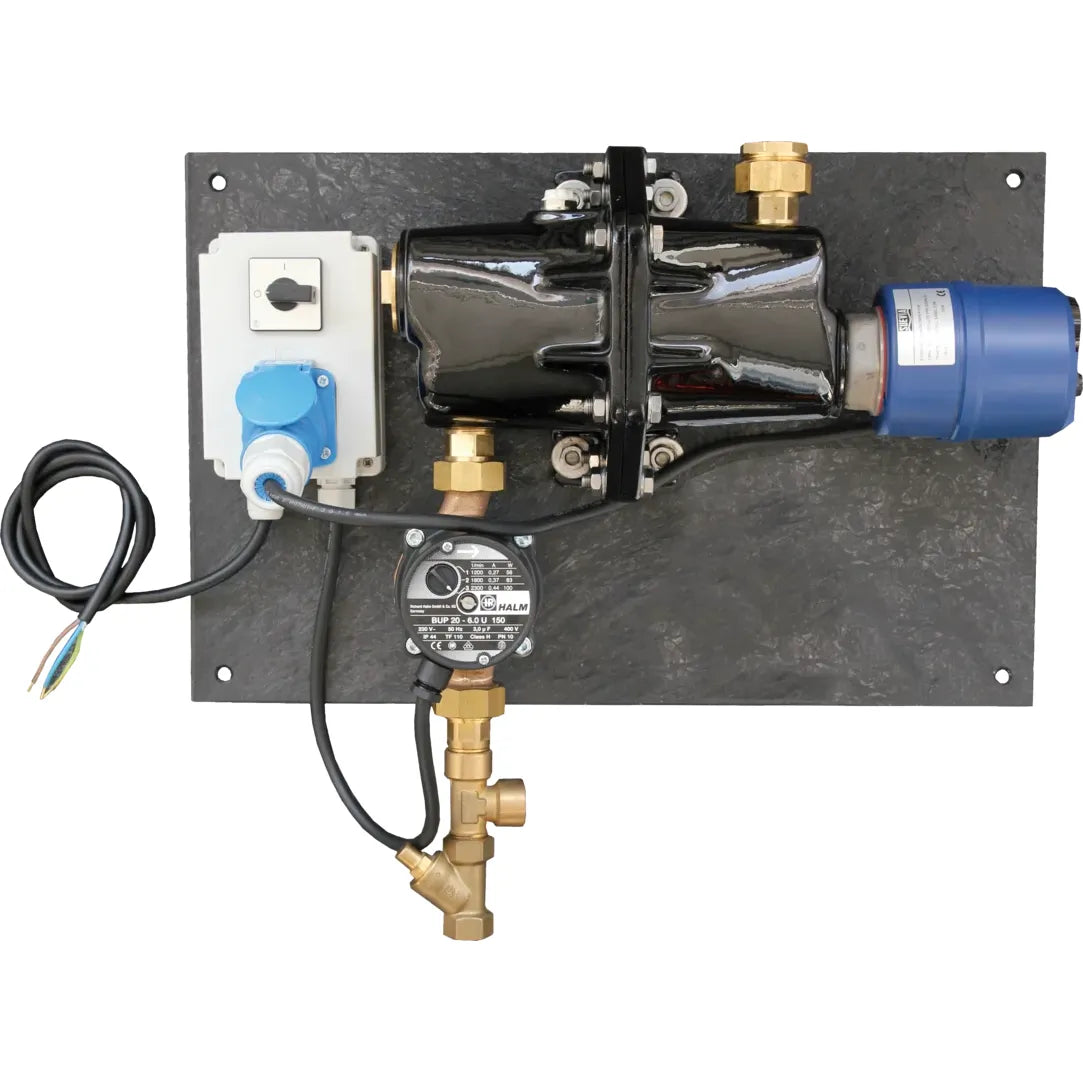

Circulation heating system Mod. 303:
- with thermostat in the flow
- 1 piece 230 V / 3 kW heating coil
- Circulation pump (93 W)
- Non-return valve
- Non-return valve
- Pressure relief valve
- Automatic air vent and main switch
- Mounted on base plate ready for connection
- RCD 30 mA required on site
- Water pressure max. 4 bar
- Water connections 1/2" or 3/4"
- Pipe length: max. 200 m
- Max. height difference (flow-return) 5 m
- ideal in conjunction with drinking trough models 25R, 115, 19R

Scope of delivery:

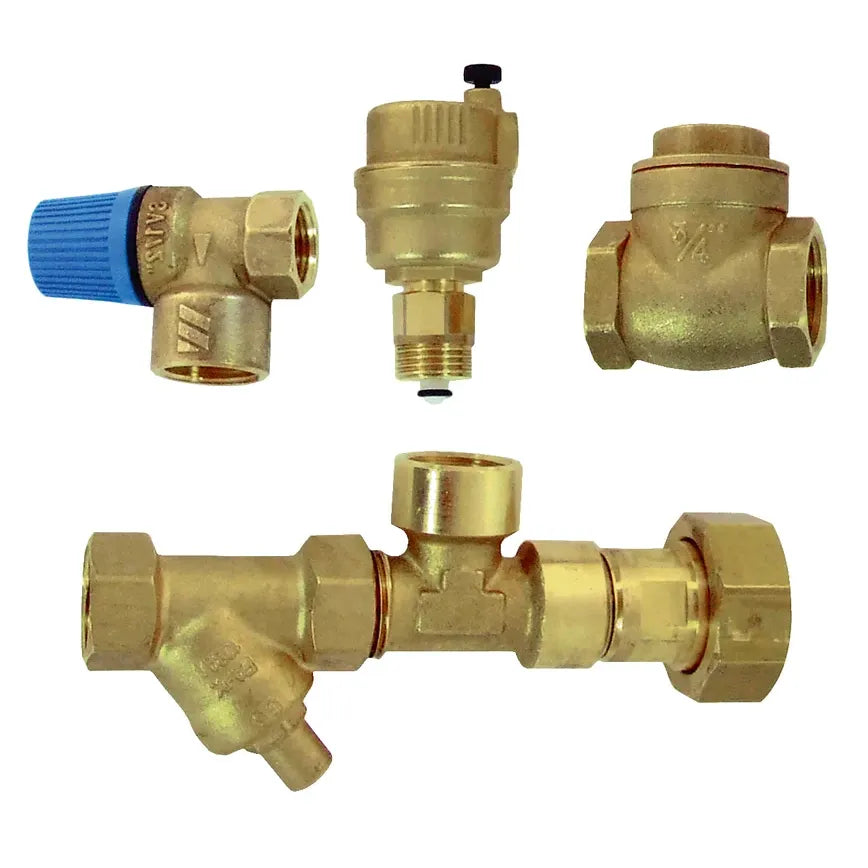

Heater 3 kW, control thermostat (0 - 40° C), 3-stage circulation pump, main switch, pressure relief valve, automatic air vent, non-return valve and non-return flap

-Operating instructions

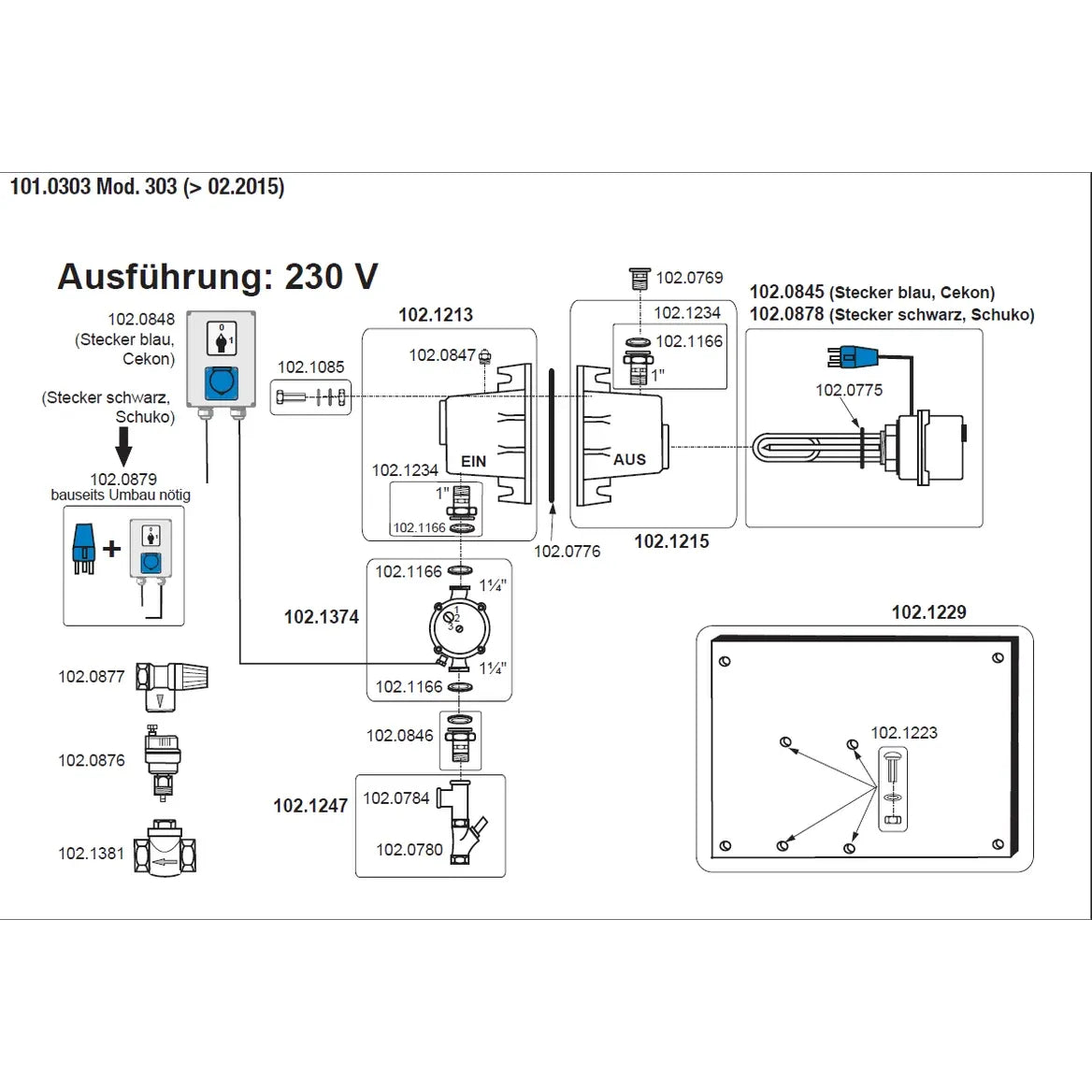

-Spare parts list

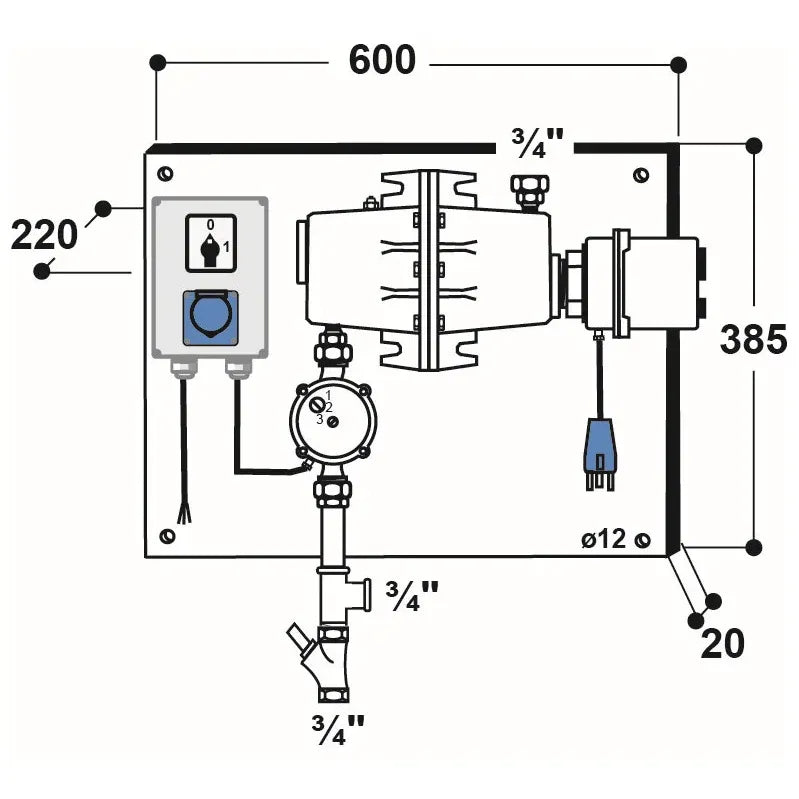

Length: 60 cm
Width: 39 cm
Height: 22 cm

-Have the installation carried out by a specialist.
-Do not forget to protect the supply line against freezing.
against freezing.
