Sanilu_Umlaufheizsystem-Mod311-312_Patura

3 kW heating element, efficient 400 W circulation pump
Including control thermostat and safety valves
Ready for connection, simple installation

Artikelnummer: 1010311

Price

incl. VAT Shipping information

Delivery time 5-10 working days

Product family

Quantity

Order now

Water meter Default Title

Automatic air vent valve Default Title

Flow rate indicator for 3/4" connection

Pipe protection Hot-dip galvanized steel

Warning system for circulation heating system Default Title

Ideal für:

Circulation heating system Mod. 311
- with thermostat in the return
- 1 piece 400 V / 3 kW heating element
- High-performance circulation pump (400 W)
- non-return valve
- Non-return valve
- Pressure relief valve
- Automatic air vent and main switch
- Mounted on base plate ready for connection
- 2 30 mA RCDs required on site
- Water connections 3/4" or 1"
- Cable length: max. 250 m
- Max. height difference (flow-return) 7 m

Scope of delivery:

Heater 3 kW, control thermostat (0 - 40° C), 3-stage circulation pump, main switch, pressure relief valve, automatic air vent, non-return valve and non-return flap, flow and return temperature sensor

-Operating instructions

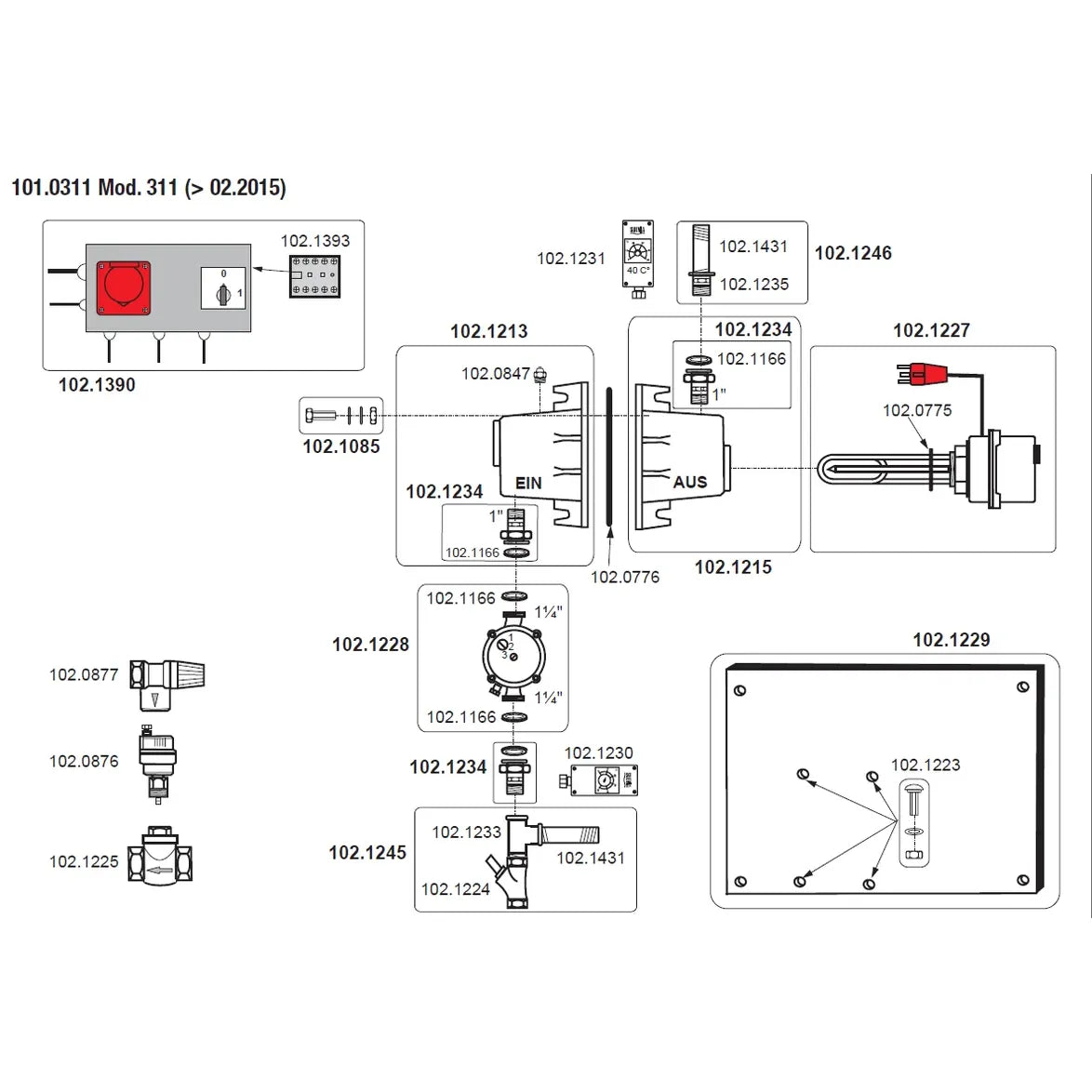

-Spare parts list

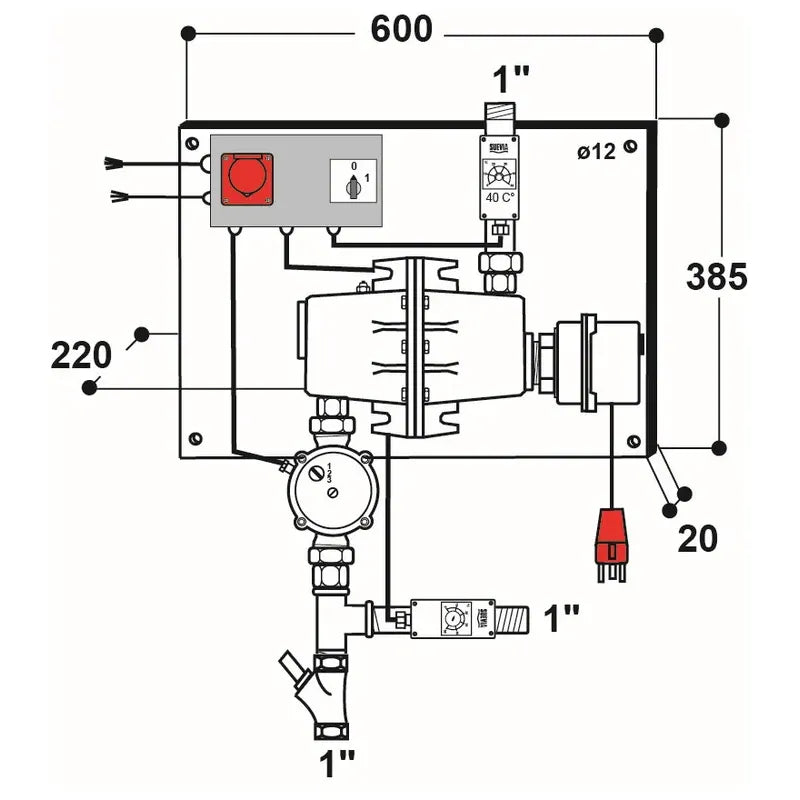

Length: 60 cm
Width: 39 cm
Height: 22 cm

Have the installation carried out by a specialist.
