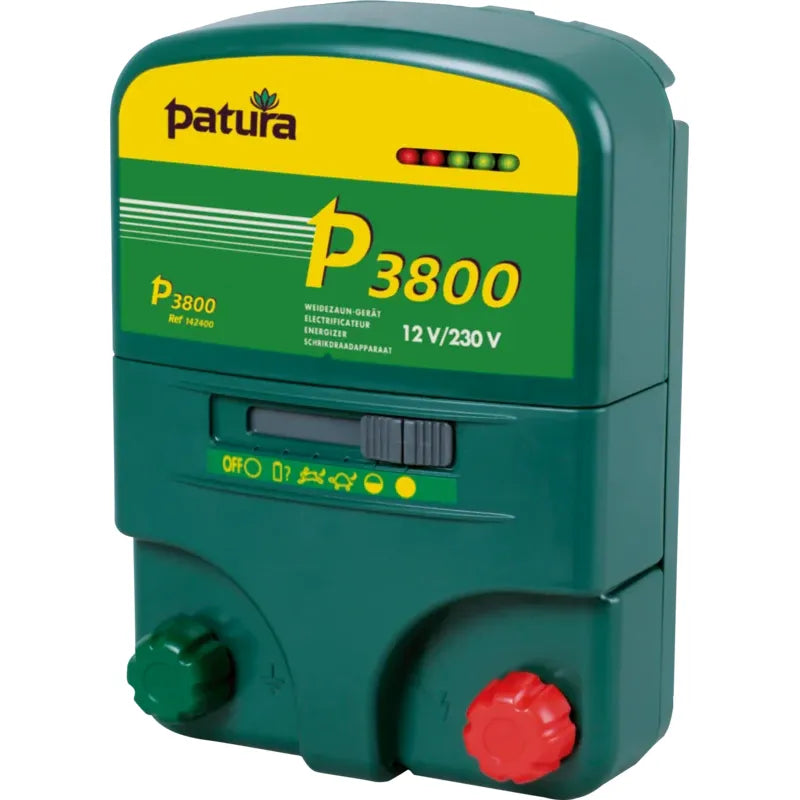

P3800, multifunctional device, 230V/12V
The PATURA multifunctional device with the latest, efficient device technology, also for longer fences with thicker grass growth.

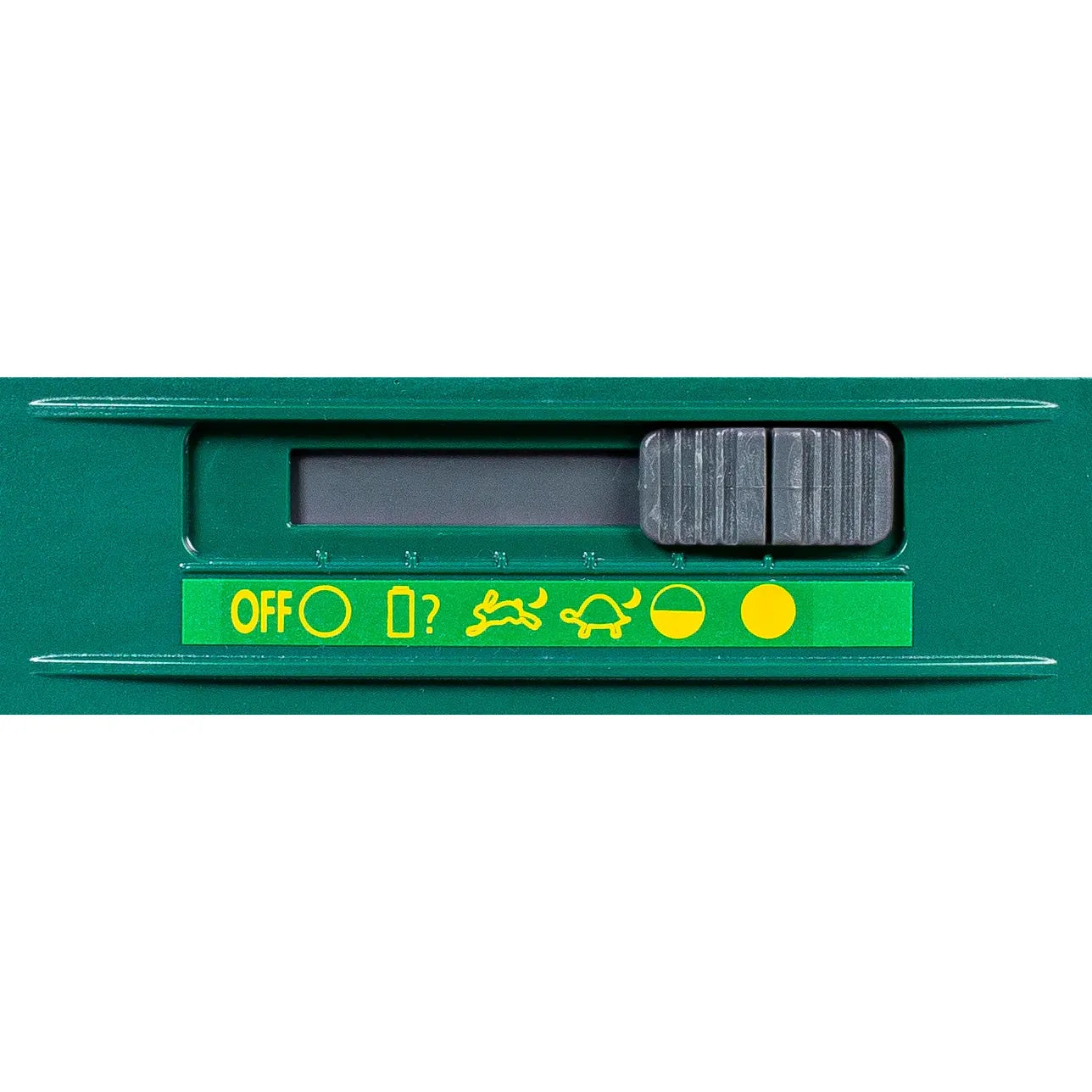

- 6-step switch
- Incl. 230 V power supply unit, 12 V stainless steel connection cable and fence / ground cable set
- Charging energy: 6.3 joules
- Max. Pulse energy (joules): 3.8
- Open circuit voltage (volts): 11000
- Voltage at 500 ohms (volts): 6300
- Voltage at 100 ohms (volts): 2600
- Power consumption at 230 V (W): 6.7
- Max. Current consumption at 12 V (mA): 230-480
- Operation with 12 V battery or 230 V mains adapter
- 2 impact strengths / day and night mode

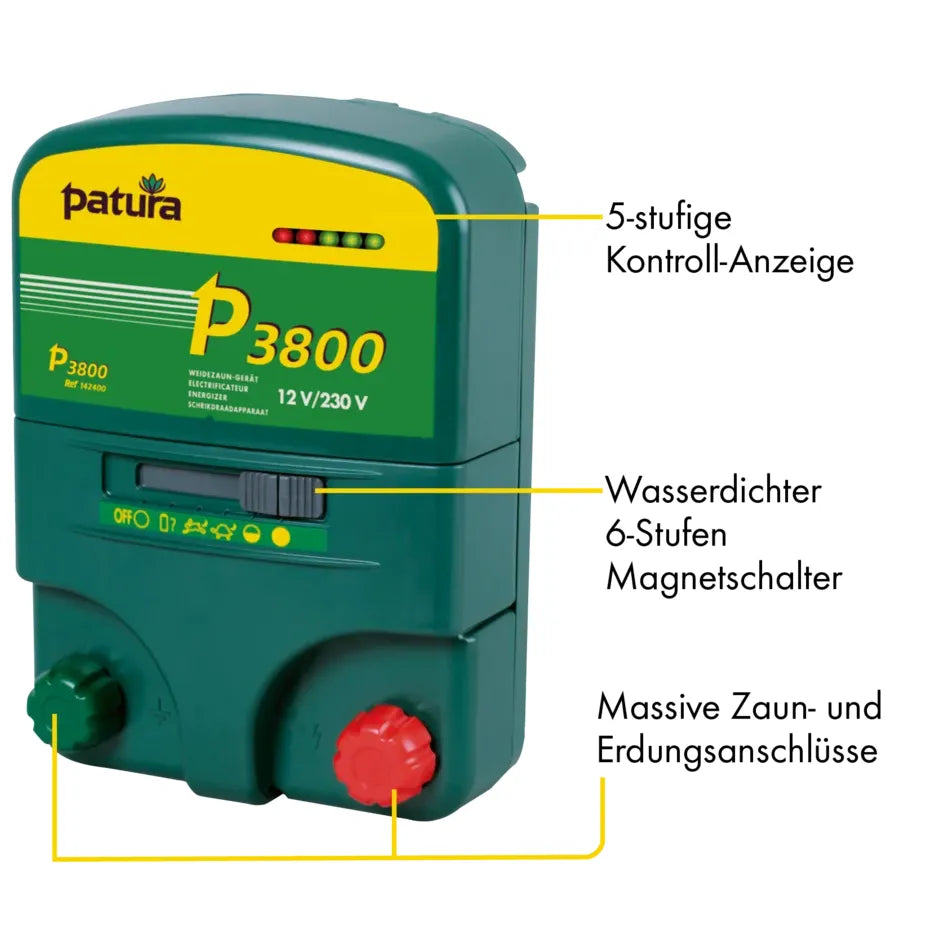

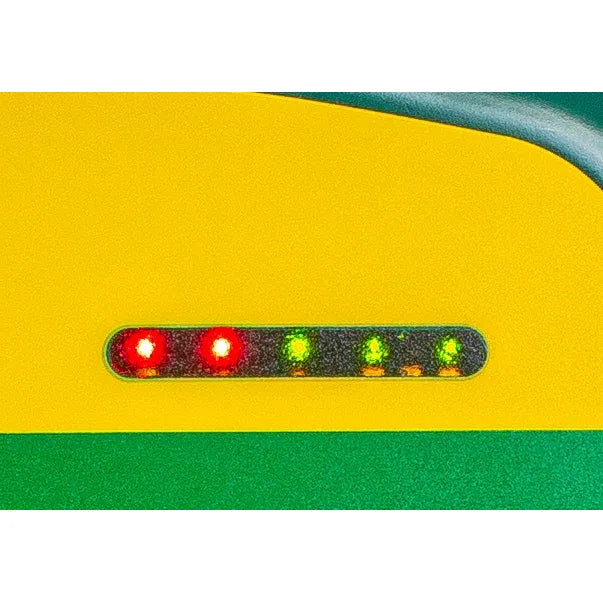

- 5-stage fence and battery control
- Battery deep discharge protection
- Recommended battery (Ah min.): 100
- Recommended number of earth rods 1 m (min.): 3
- Recommended solar module output (W): 40
- 5 year guarantee
- Instruction manual
Max. Fence length in km (stranded)
- Without vegetation: 25
- Light vegetation: 17
- Normal vegetation: 8.5
- Heavy fouling: 3
P3800, multifunctional device, 230V/12V with carrying box
The PATURA multifunctional device with the latest, efficient device technology, also for longer fences with thicker grass growth.
- Incl. open carrying box
- 6-step switch
- Incl. 230 V power supply unit, 12 V stainless steel connection cable and fence / ground cable set
- Charging energy: 6.3 joules
- Max. Pulse energy (joules): 3.8
- Open circuit voltage (volts): 11000
- Voltage at 500 ohms (volts): 6300
- Voltage at 100 ohms (volts): 2600
- Power consumption at 230 V (W): 6.7
- Max. Current consumption at 12 V (mA): 230-480
- Operation with 12 V battery or 230 V mains adapter
- 2 impact strengths / day and night mode
- 5-stage fence and battery control
- Battery deep discharge protection
- Recommended battery (Ah min.): 100
- Recommended number of earth rods 1 m (min.): 3
- Recommended solar module output (W): 40

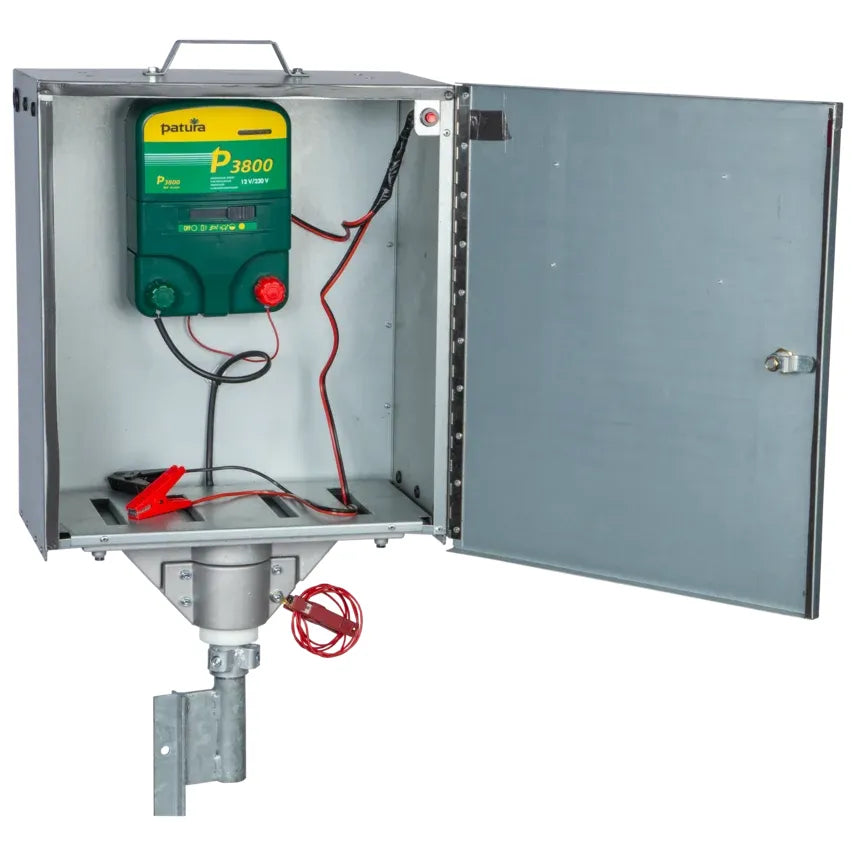

P3800, multifunctional device, 230V/12V with electrified box and earth rod
The PATURA multifunctional device with the latest, efficient device technology, also for longer fences with heavy grass growth.
- Incl. safety box and ground rod
- Day and night switching not possible
- 6-step switch
- Incl. 230 V power supply unit, 12 V stainless steel connection cable and fence / earth cable set
- Charging energy: 6.3 joules
- Max. Pulse energy (joules): 3.8
- Open circuit voltage (volts): 11000
- Voltage at 500 ohms (volts): 6300
- Voltage at 100 ohms (volts): 2600
- Power consumption at 230 V (W): 6.7
- Max. Current consumption at 12 V (mA): 230-480
- Operation with 12 V battery or 230 V mains adapter
- 5-stage fence and battery control
- Battery deep discharge protection
- Recommended battery (Ah min.): 100
- Recommended number of earth rods 1 m (min.): 3
- Recommended solar module output (W): 40
