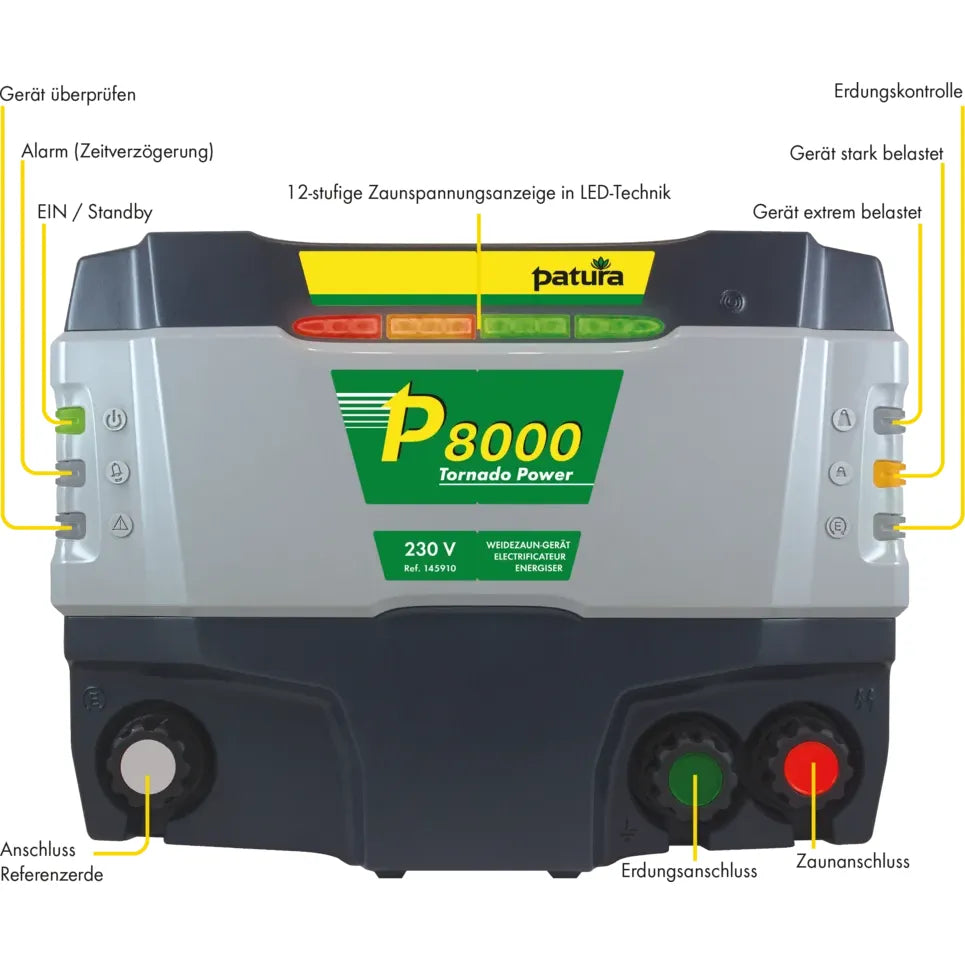

P8000 Tornado Power 230V power supply unit

Since 2010, only electric fence energizers with a maximum pulse energy of 15 joules may be sold in Europe. Through intensive development work and many years of practical testing PATURA has introduced a completely new type of technology for electric fence energizers. With 15 joules of pulse energy, the new PATURA P8000 Tornado Power achieves the same or even higher voltages on the fence than the predecessor model P8000 with 37 joules, even under heavy loads.

This extreme increase in efficiency was made possible by the use of an insulated power supply (IPC) in conjunction with a modified transformer design. The P8000 Tornado Power is the first IPC power supply unit to be used in electric fencing devices. The power supply unit with inductive power transmission is simply plugged into the back of the device. There is no direct connection from the power supply unit to the device.

The design with Tornado Power technology enables the highest voltages on the fence even with the heaviest vegetation.

Despite the pulse energy being limited to 15 joules, the P8000 Tornado Power power supply delivers at least the same and often even higher fence voltages than the significantly more powerful predecessor model P8000 with 37J pulse energy.

• Delivers significantly higher fence voltages with grass cover than comparable conventional devices
• 50% lower power consumption with the same fence safety compared to the predecessor model
• The power supply via the isolated power transmission (IPC) offers at least 10 times higher protection against lightning strikes and overvoltage
• Charging energy: 21 joules
• Max. Pulse energy (joules): 15
• Open circuit voltage (volts): 8200
• Voltage at 500 ohms (volts): 7200
• Voltage at 100 ohms (volts): 7800
• Voltage at 50 ohms (volts): 5800
• Power consumption at 230 V (W): 25
• Earthing control
• Recommended number of earthing rods 2 m (min.): 6
• Time delay
• Separate remote control available
• 5 year warranty
• Instruction manual
