Stainless steel bowl: unbreakable, resistant
High water supply: up to 20 l/min
Brass valve: smooth-running, double connection option

Artikelnummer: 1001203

Valve material

Brass

Stainless steel

Price

incl. VAT Shipping information

Delivery time 3-5 working days – Parcel shipping

Quantity

Order now

Protective bracket A3 for wall and pipe mounting Default Title

Protective bracket A5 for wall mounting Default Title

Valve protection Default Title

Mounting bracket for posts 1 ½" - 2" Default Title

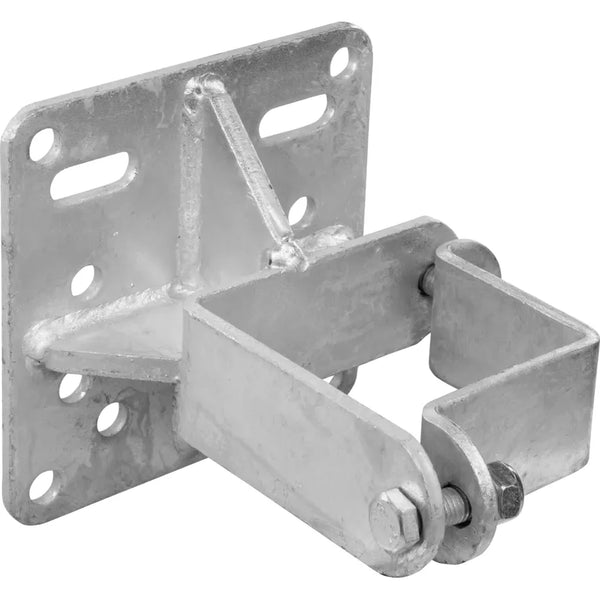

Clamp 90 Drinking bowl holder Default Title

[{"id":44083512181014,"title":"Brass","option1":"Brass","option2":null,"option3":null,"sku":"1001203","requires_shipping":true,"taxable":true,"featured_image":{"id":81828754522491,"product_id":8097952399638,"position":1,"created_at":"2026-01-22T16:34:36+01:00","updated_at":"2026-02-04T19:10:10+01:00","alt":"Rohrventil-Becken PATURA","width":800,"height":800,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/100120X_Rohrventil-Becken-Mod1200MS.webp?v=1770228610","variant_ids":[44083512181014,44083512213782]},"available":true,"name":"Pipe valve basin - Brass","public_title":"Brass","options":["Brass"],"price":11200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4025338120974","featured_media":{"alt":"Rohrventil-Becken PATURA","id":68840927986043,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/100120X_Rohrventil-Becken-Mod1200MS.webp?v=1770228610"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44083512213782,"title":"Stainless steel","option1":"Stainless steel","option2":null,"option3":null,"sku":"1001209","requires_shipping":true,"taxable":true,"featured_image":{"id":81828754522491,"product_id":8097952399638,"position":1,"created_at":"2026-01-22T16:34:36+01:00","updated_at":"2026-02-04T19:10:10+01:00","alt":"Rohrventil-Becken PATURA","width":800,"height":800,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/100120X_Rohrventil-Becken-Mod1200MS.webp?v=1770228610","variant_ids":[44083512181014,44083512213782]},"available":true,"name":"Pipe valve basin - Stainless steel","public_title":"Stainless steel","options":["Stainless steel"],"price":12900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4025338061093","featured_media":{"alt":"Rohrventil-Becken PATURA","id":68840927986043,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/100120X_Rohrventil-Becken-Mod1200MS.webp?v=1770228610"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Ideal für:

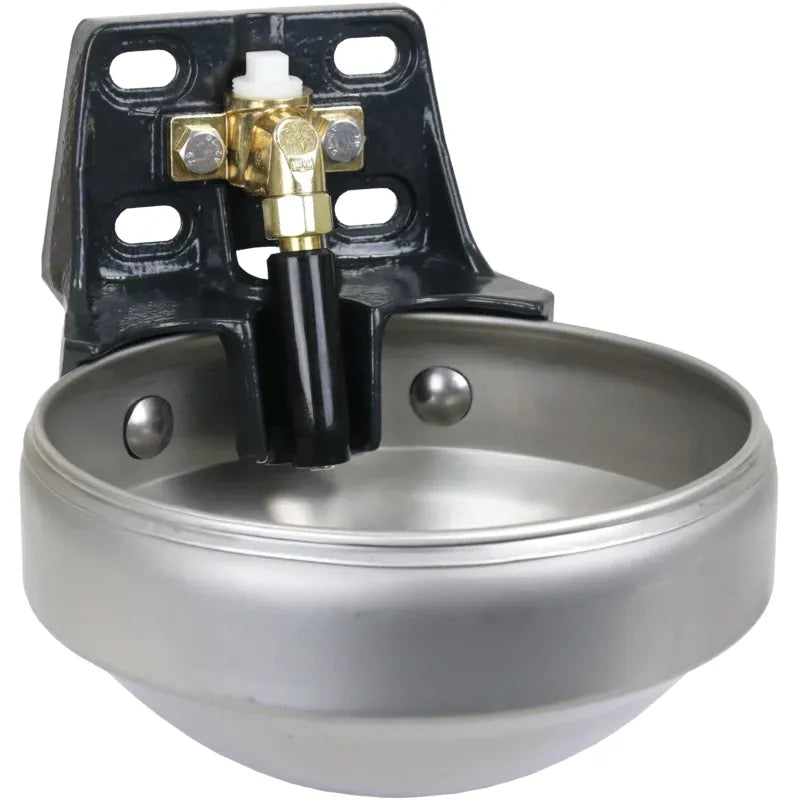

SUEVIA stainless steel tube valve basin mod. 1200 with 3/4" brass valve

Large, deep bowl made of stainless steel, resistant, unbreakable
Smooth-running brass pipe valve with ¾" female thread connection from above and below
Low water loss due to inwardly drawn bowl rim
Smooth-running pipe valve
Very high water inflow of up to 20 l/min
Suitable for circulation heating systems
Inlet up to 20 l / min at 5 bar

Recommended for

Cattle and cows

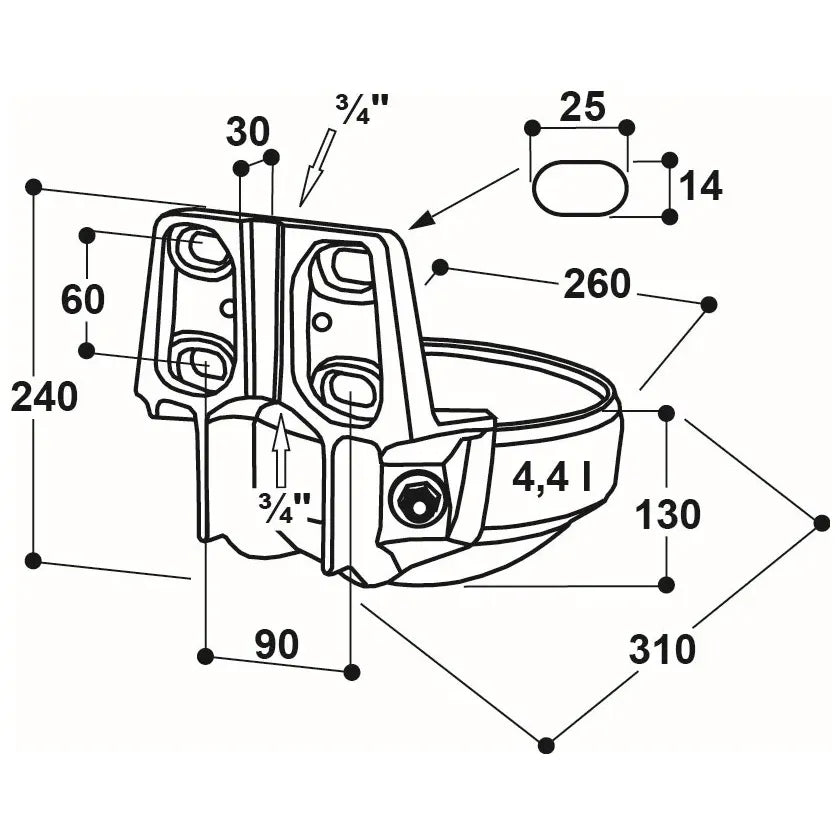

L x W x H: 31x26x24 cm

All temperature specifications regarding frost resistance refer to use in stables without direct wind and weather influenceWater requirement per day - Cows = 60 l - 180 l - Cattle over 1 year = 25 l - 70 l - Cattle under 1 year = 15 l - 30 l - Calves up to 6 months = 5 l - 25 l - Sheep/goats = 2 l - 12 l - Large horses on pasture/mare lactating = 15 l - 60 l - Foals (200 kg) = 15 l - 20 l

Downloadbereich:
