Enameled cast iron, easy to clean
Fresh water without stagnation
Flexible connection and adjustable water volume

Artikelnummer: 1000370

Price

incl. VAT Shipping information

Delivery time 3-5 working days – Parcel shipping

Quantity

Order now

Support rail for Suevia drinking bowls, height-adjustable by 50 cm, 8 fixing points, stainless steel Default Title

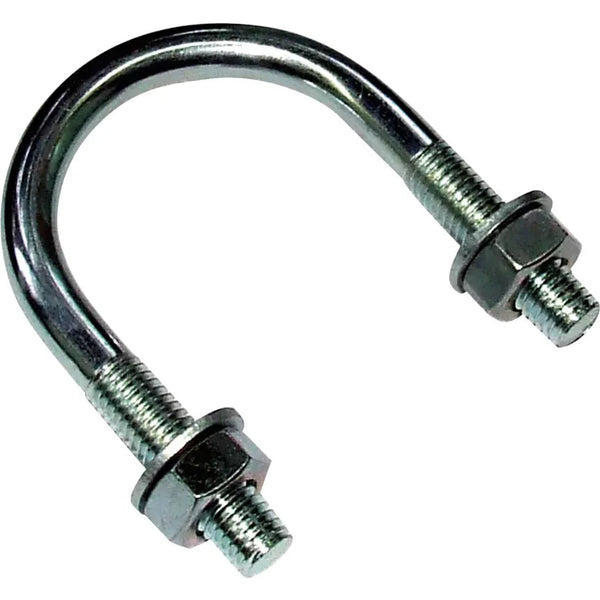

Mounting bracket for posts 1" - 1 ½" Default Title

Ideal für:

SUEVIA tube valve basin Mod. 370 with brass valve ½"

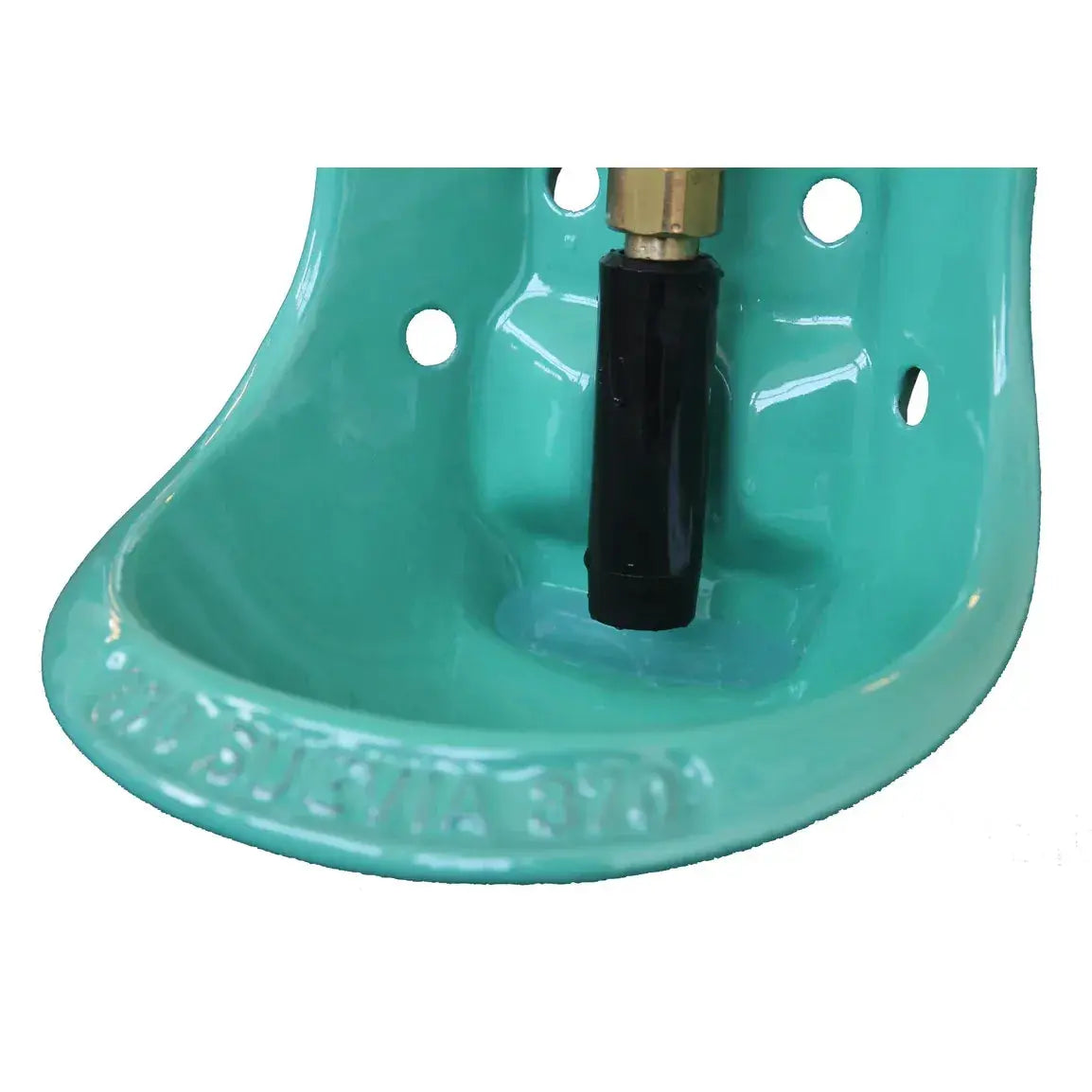

Cast iron bowl, fully enameled, easy to clean
Always fresh and clean water - no stale water as with float drinkers
Smooth-running pipe valve even at high pressure up to 6 bar
Valve actuation possible from all sides
With lure water trough behind the pipe valve as a learning aid for young animals
Quiet water supply through the pipe valve
Connection ½" AG from above
Water volume infinitely adjustable from the outside via a regulating screw

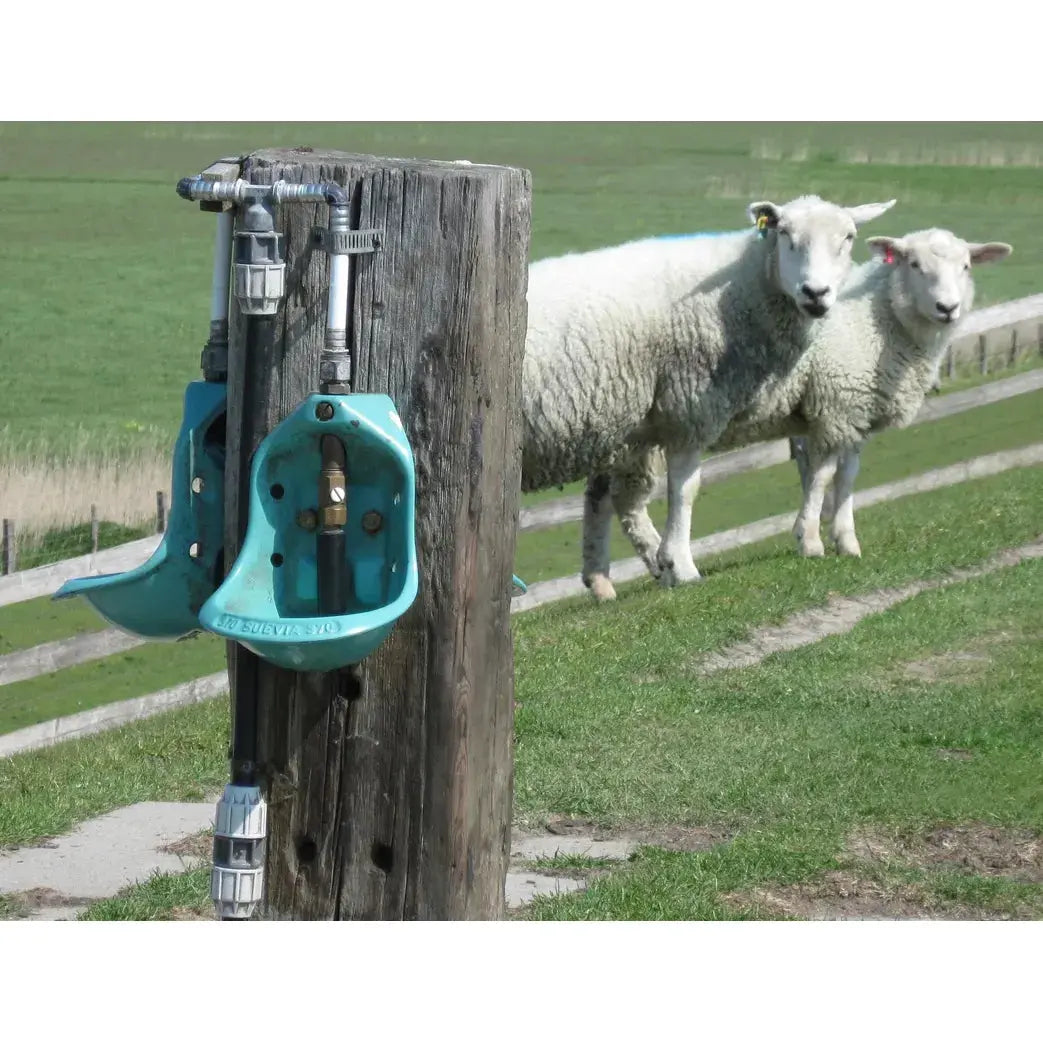

Thanks to the specially designed rear panel, the mounting on pillars, walls or even on the in 90° corners is possible
Inlet up to 3.5 l / min at 5 bar
Installation instructions

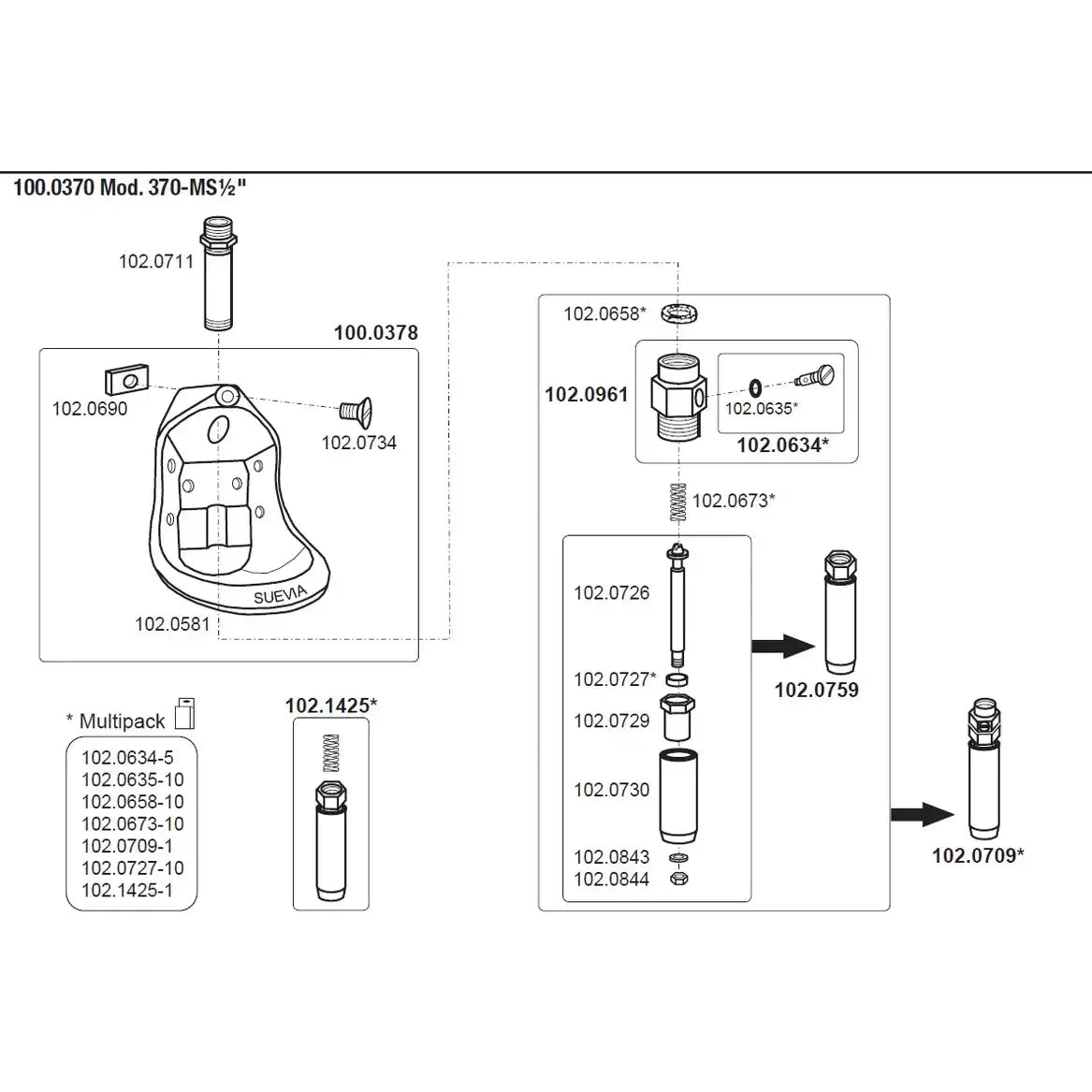

Spare parts list

Recommended for

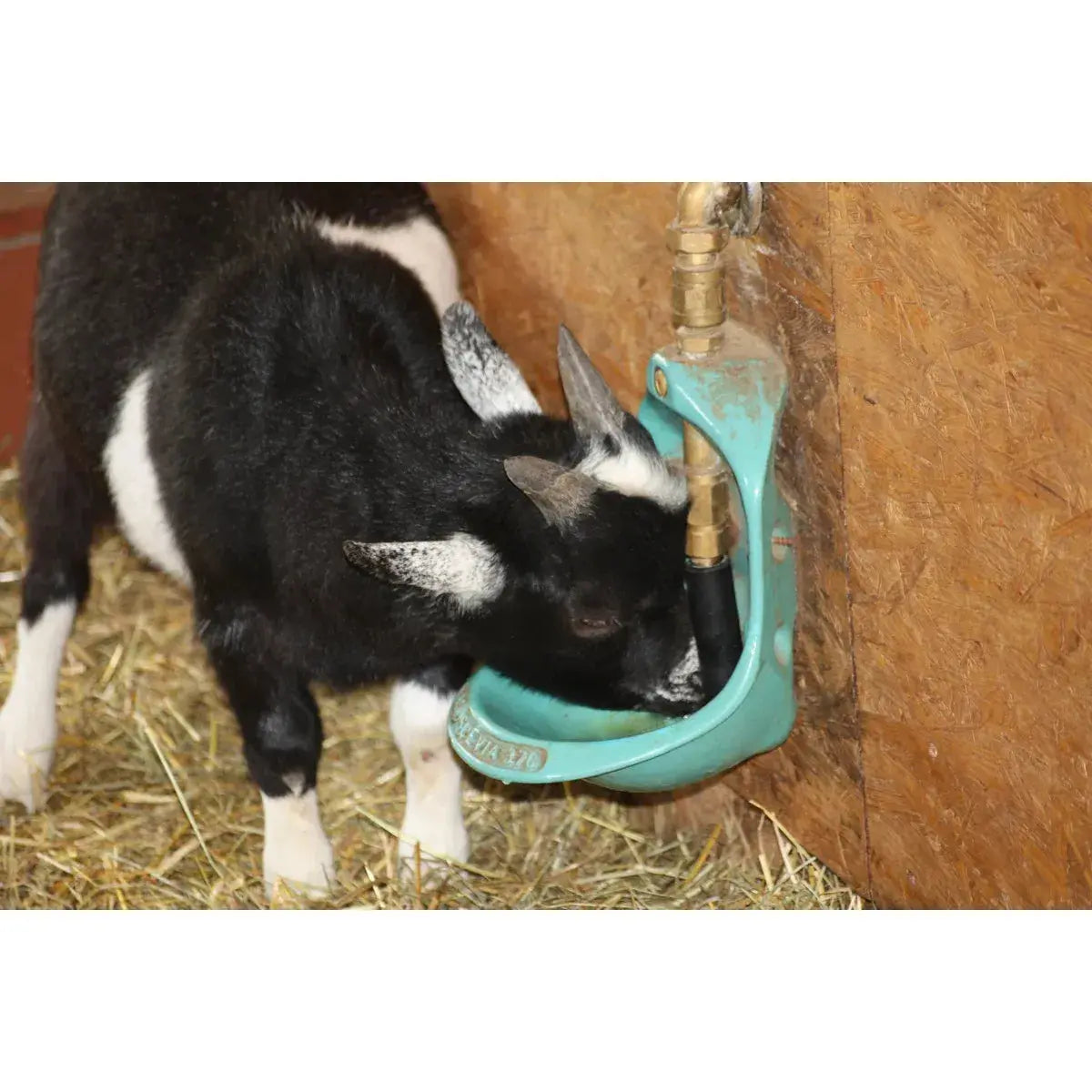

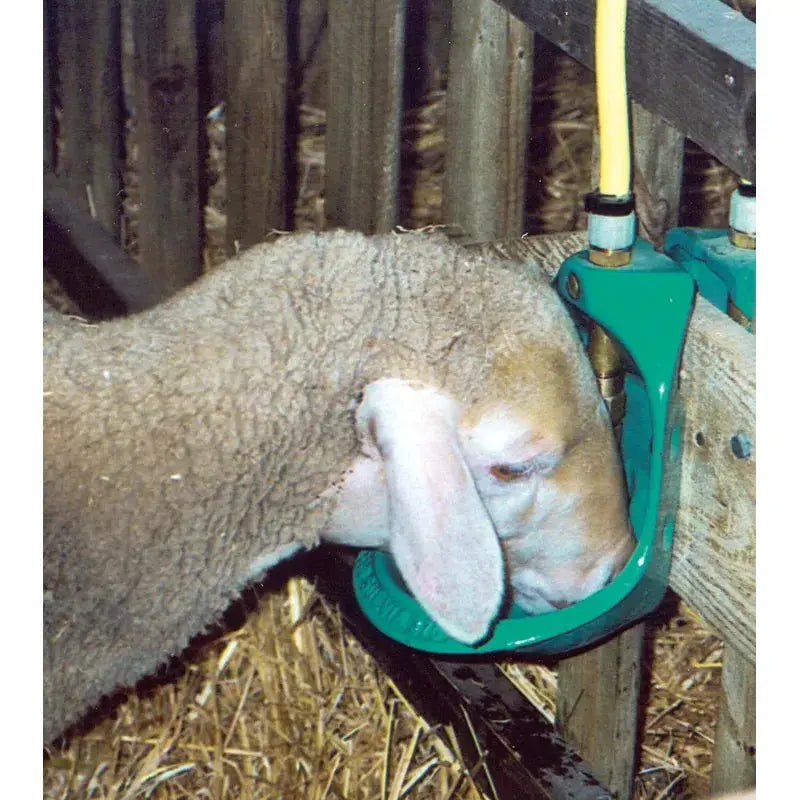

Calves, sheep, goats, dogs

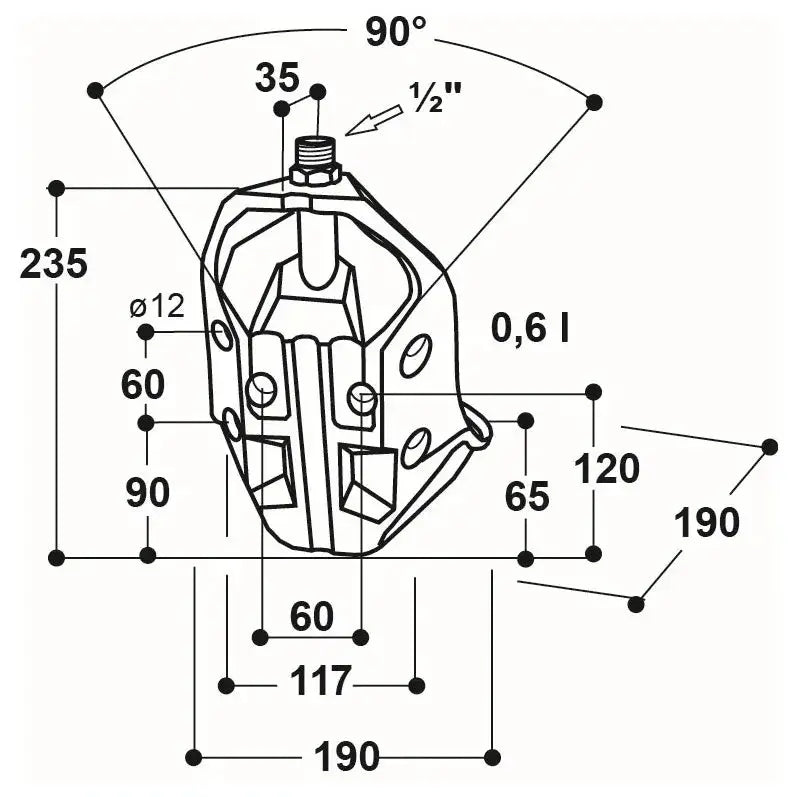

L x W x H: 19x19x27 cm

All temperature specifications regarding frost resistance refer to use in stables without direct wind and weather influenceWater requirement per day - Cows = 60 l - 180 l - Cattle over 1 year = 25 l - 70 l - Cattle under 1 year = 15 l - 30 l - Calves up to 6 months = 5 l - 25 l - Sheep/goats = 2 l - 12 l - Large horses on pasture/mare lactating = 15 l - 60 l - Foals (200 kg) = 15 l - 20 l

Downloadbereich:
