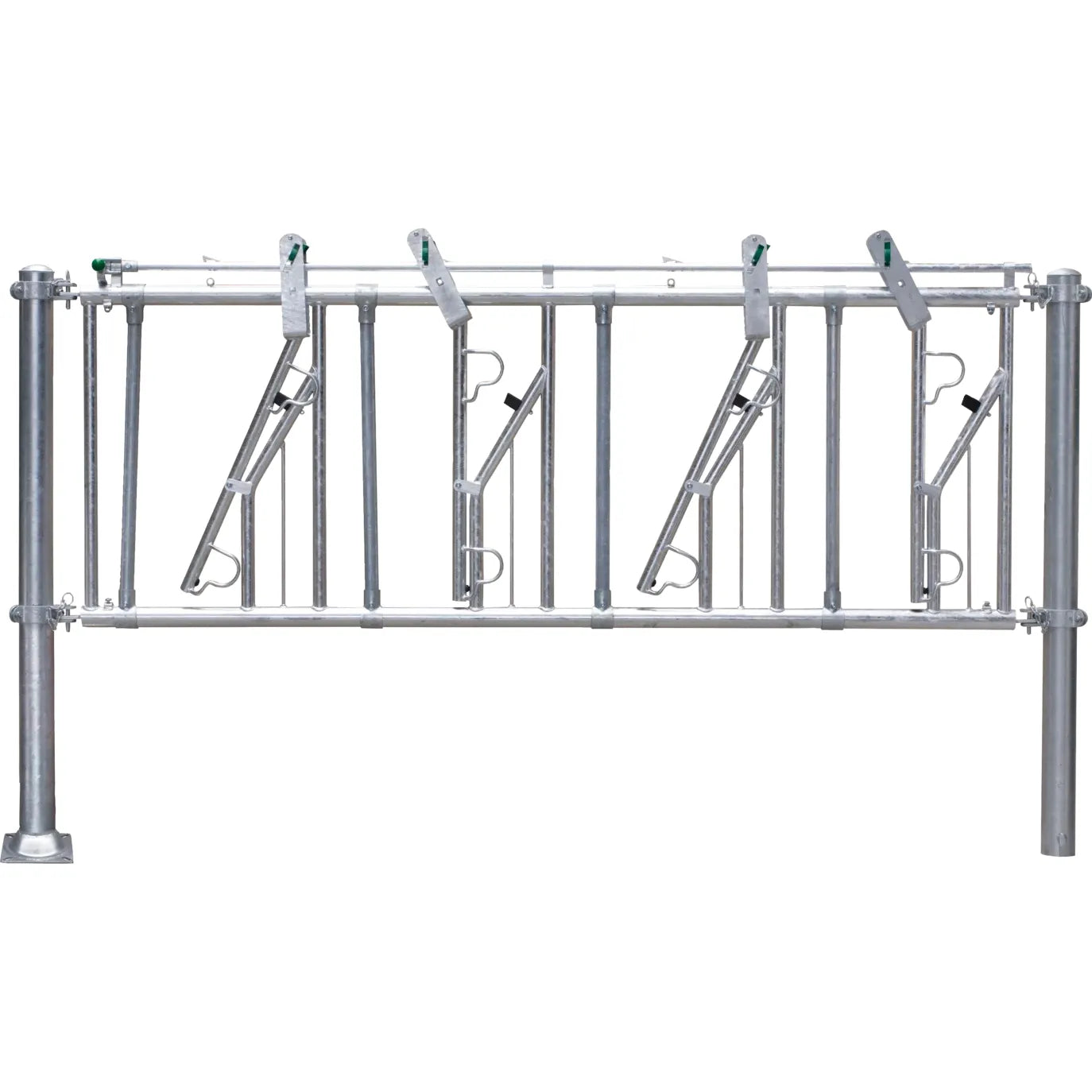

Self-locking grille type SV

The PATURA Self-locking grille with adjustable neck width ensure that animals that lie down or slip in the feed fence can escape from the bottom of the feed fence without any problems. The special anti-noise design provides triple noise insulation. Rubber buffers prevent the development of noise when opening or closing the catch bar. A plastic-coated locking bolt enables silent locking. The pivot point of the catch bar is reinforced for years of wear-free operation. We only use high-quality steel tubes of 60.3 mm (2") for the frame of the feed fence. The diameter of the intermediate tubes and catching bars is 42.4 mm. All feeding places can be locked individually. It is possible to install the feed fences at an angle. We supply standard lengths from 1 to 6 m with feeding place widths from 50 to 100 cm.

Self-catching feed fence type SV - young cattle Functions:

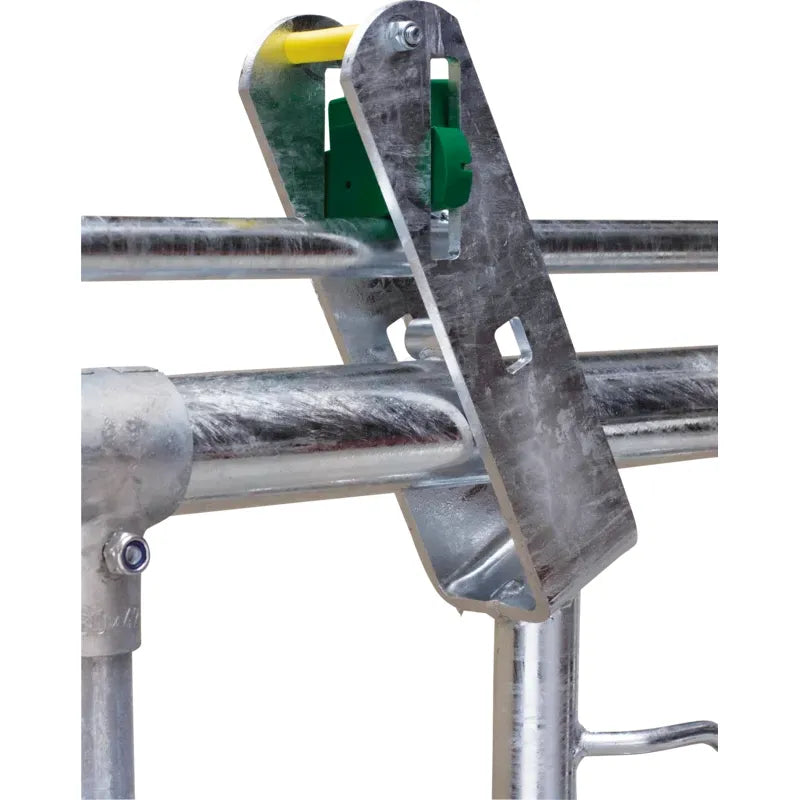

• Quiet locking with plastic-coated locking bolt
• Adjustable neck width
• feeding places can be locked individually
• Grid can be swiveled when mounted straight (up to 3 m)
• Can be mounted at an angle

Self-locking feed fence type SV - young cattle Technical advantages:

• High stability due to solid tubes
• Frame: 2 inch (60.3 mm) x 2.9 mm; filling bars and catch bars 1 1/4 inch (42.4 mm) x 2.6 mm
• Durability thanks to hot-dip galvanizing inside and out
• Low-wear swivel joint

Safety/cow comfort:

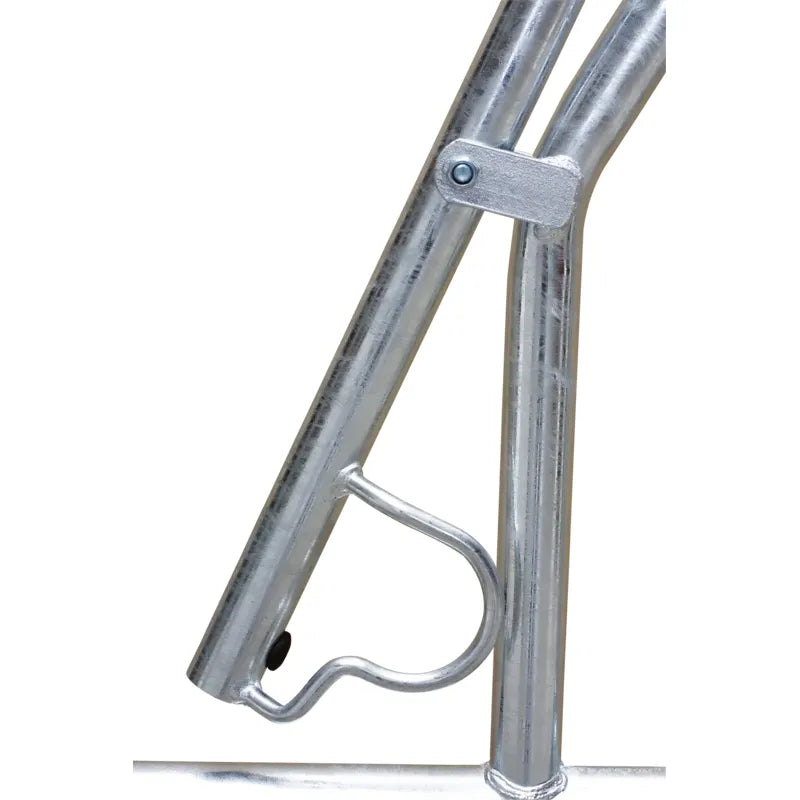

• Calf and collar safe thanks to optimized hanger geometry

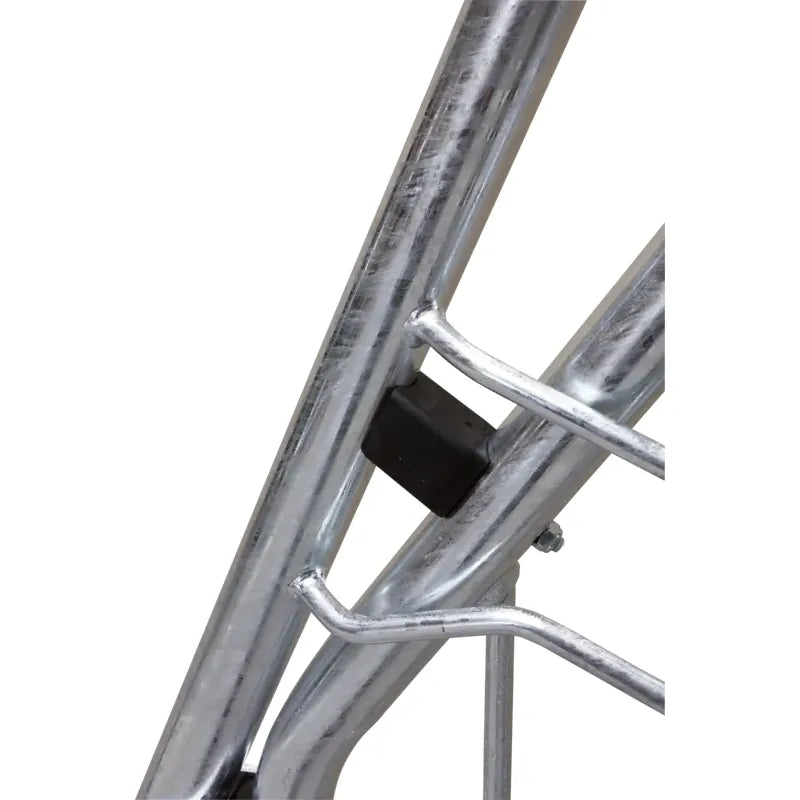

• Noise insulation thanks to large, stable rubber buffers

Advantages:

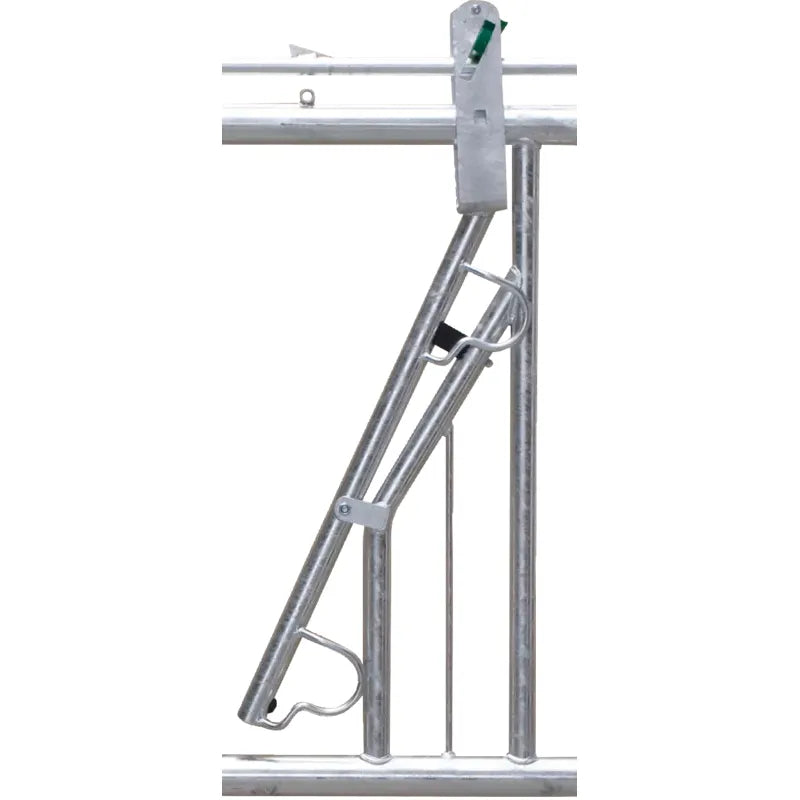

• each feeding place is triple-welded - high stability even with large meat breeds
• Small feeding space widths possible for optimum use of space
• quiet locking with plastic-coated locking bolt
• Calf and collar safe thanks to optimized bracket geometry
• Durable thanks to hot-dip galvanizing on the inside and outside
• Grid can be swiveled when mounted straight (use support wheel from 3 m!)
• 10 assembly variants

Type: SV 1/1
Weight: 21 kg
① Nominal length: 100 cm
② Mounting length: 81 - 100 cm
③ Frame length: 72 cm
Eating places: 1
Feeding space width: 100 cm
④ Feeding place spacing: 85 cm

Type: SV 2/1.6
Weight: 40 kg
① Nominal length: 160 cm
② Mounting length: 141 - 160 cm
③ Frame length: 132 cm
Eating places: 2
Feeding space width: 80 cm
④ Feeding place spacing: 62.5 cm

Type: SV 4/3
Weight: 82 kg
① Nominal length: 300 cm
② Assembly length: 281 - 300 cm
③ Frame length: 272 cm
Eating places: 4
Feeding space width: 75 cm
④ Feeding space spacing: 66.5 cm

Type: SV 5/3 young cattle
Weight: 82 kg
① Nominal length: 300 cm
② Assembly length: 281 - 300 cm
③ Frame length: 272 cm
Eating places: 5
Feeding space width: 60 cm
④ Feeding place spacing: 53 cm

Type: SV 5/3.4
Weight: 94 kg
① Nominal length: 340 cm
② Assembly length: 321 - 340 cm
③ Frame length: 312 cm
Feeding places: 5
Feeding space width: 68 cm
④ Distance between feeding places: 61 cm

Type: SV 5/4
Weight: 106 kg
① Nominal length: 400 cm
② Assembly length: 381 - 400 cm
③ Frame length: 372 cm
Eating places: 5
Feeding space width: 80 cm
④ Feeding place spacing: 75.5 cm

Type: SV 6/4
Weight: 113 kg
① Nominal length: 400 cm
② Installation length: 381 - 400 cm
③ Frame length: 372 cm
Eating places: 6
Feeding space width: 66.7 cm
④ Feeding place spacing: 61 cm

Type: SV 7/4 young cattle
Weight: 114 kg
① Nominal length: 400 cm
② Assembly length: 381 - 400 cm
③ Frame length: 372 cm
Eating places: 7
Feeding space width: 57 cm
④ Feeding space spacing: 52 cm

Type: SV 6/4.4
Weight: 115 kg
① Nominal length: 440 cm
② Assembly length: 421 - 440 cm
③ Frame length: 412 cm
Feeding places: 6
Feeding space width: 73 cm
④ Feeding space spacing: 67.5 cm

Type: SV 6/5
Weight: 134 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
③ Frame length: 472 cm
Eating places: 6
Eating space width: 83.3 cm
④ Feeding place spacing: 80 cm

Type: SV 7/5
Weight: 140 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
③ Frame length: 427 cm
Eating places: 7
Feeding space width: 71.4 cm
④ Feeding space spacing: 66 cm

Type: SV 8/5
Weight: 152 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
③ Frame length: 472 cm
Eating places: 8
Eating space width: 62.5 cm
④ Feeding space spacing: 58 cm

Type: SV 10/5 young cattle
Weight: 171 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
③ Frame length: 472 cm
Eating places: 10
Feeding space width: 50 cm
④ Feeding space spacing: 46.5 cm

Type: SV 8/6
Weight: 173 kg
① Nominal length: 600 cm
② Assembly length: 581 - 600 cm
③ Frame length: 572 cm
Eating places: 8
Feeding space width: 75 cm
④ Feeding space spacing: 70.5 cm

Type: SV 9/6
Weight: 175 kg
① Nominal length: 600 cm
② Assembly length: 581 - 600 cm
③ Frame length: 572 cm
Eating places: 9
Feeding space width: 66.7 cm
④ Feeding space spacing: 63 cm

Type: SV 12/6 young cattle
Weight: 208 kg
① Nominal length: 600 cm
② Assembly length: 581 - 600 cm
③ Frame length: 572 cm
Eating places: 12
Feeding space width: 50 cm
④ Feeding space spacing: 46.5 cm

Safety note:
Fixation of animals only under supervision!

Order shelves, posts and mounting accessories separately
