Separation R4 (1/2)

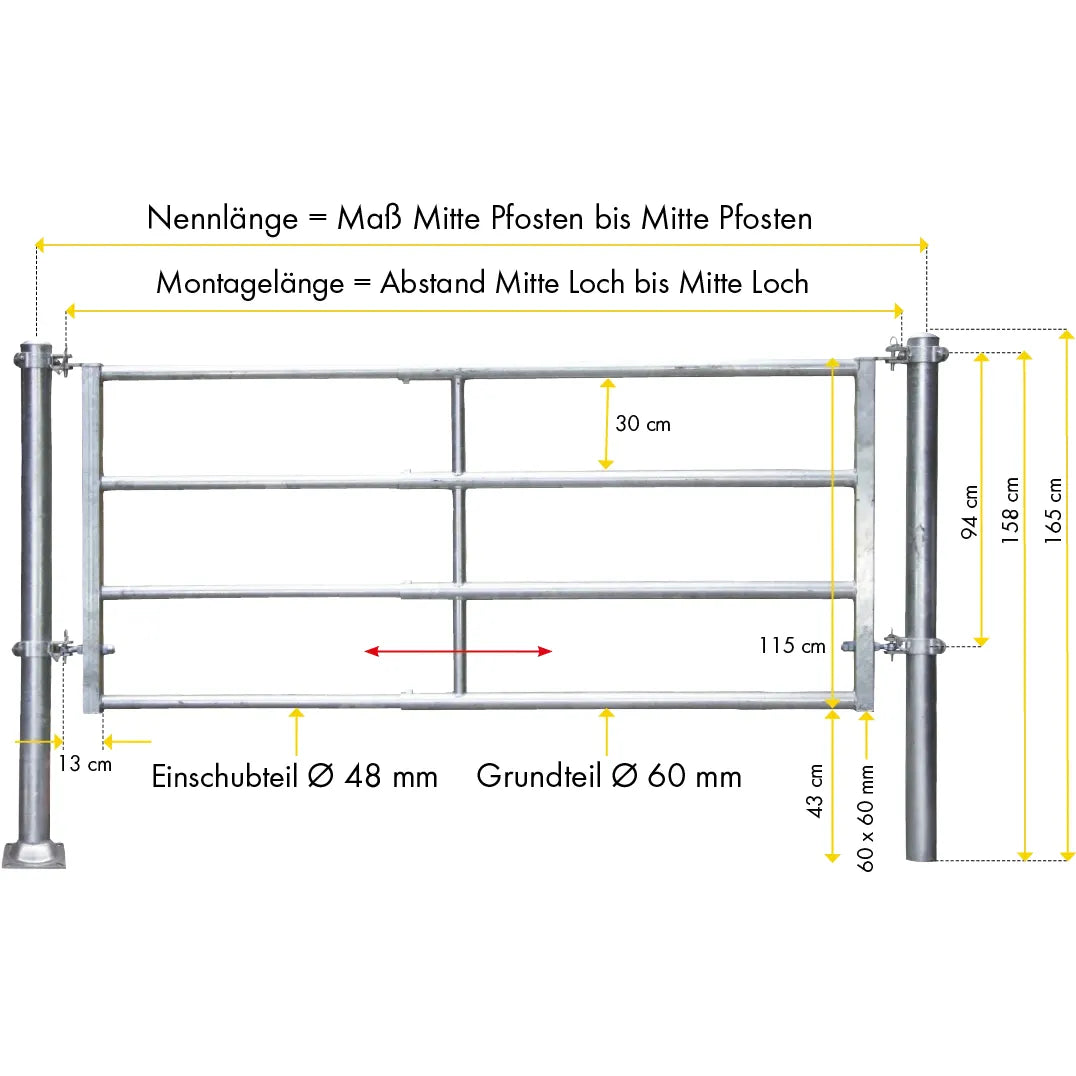

- Nominal length 145 - 220 cm (point 2 in the picture)
- Installation length 125 - 200 cm (point 1 in the picture)
- Mounting length base 111 cm
- Mounting length insert 111 cm
- Weight 53 kg
Partition R4 (2/3)
- Nominal length 195 - 295 cm (point 2 in the picture)
- Installation length 175 - 275 cm (point 1 in the picture)
- Installation length of base section 161 cm
- Assembly length of slide-in section 161 cm
- Weight 60 kg
Partition R4 (3/4)
- Nominal length 295 - 405 cm (point 2 in the picture)
- Installation length 275 - 385 cm (point 1 in the picture)
- Assembly length base section 261 cm
- Assembly length insert 186 cm
- Weight 72 kg
Partition R4 (4/5)
- Nominal length 395 - 505 cm (point 2 in the picture)
- Installation length 375 - 485 cm (point 1 in the picture)
- Assembly length base section 361 cm
- Assembly length insert 186 cm
- Weight 93 kg
Partition R4 (5/6)
- Nominal length 495 - 605 cm (point 2 in the picture)
- Installation length 475 - 585 cm (point 1 in the picture)
- Assembly length base section 461 cm
- Assembly length of slide-in section 186 cm
- Weight 106 kg
Partition R4 (6/7)
- Nominal length 595 - 705 cm (point 2 in the picture)
- Installation length 575 - 685 cm (point 1 in the picture)
- Assembly length base section 561 cm
- Assembly length of slide-in section 186 cm
- Weight 128 kg
