Modular horse feed fence - support frame in various lengths

Trägergestell PATURA

Flexibly adaptable: nominal lengths 2-5 m, adjustable inserts.
Simple installation: kit with bolt fastening on both sides.
Optimum feeding space width: For large horses 60-70 cm.

Artikelnummer: 321510

Length of support frame

2 m

3 m

4 m

5 m

Price

incl. VAT Shipping information

Delivery time 3-5 working days – 📦 Shipping with XL package

Quantity

visa

Order now

Grid bar Ø 48 mm 1,47 m

Grid bar Ø 48 mm 1,80 m

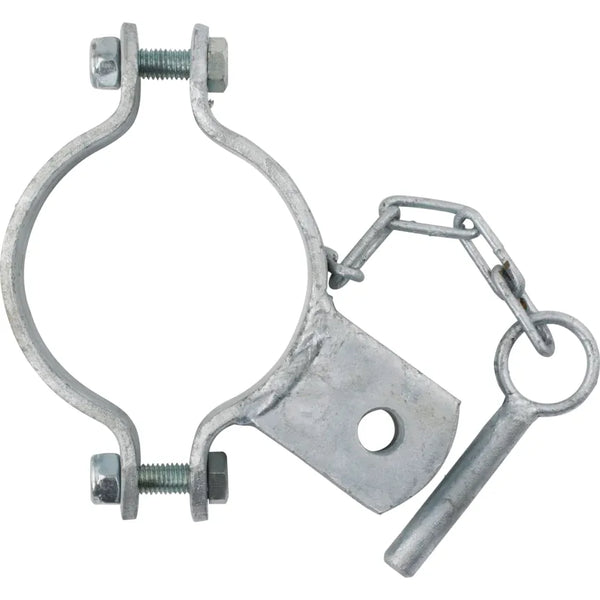

Clamp 102 1 holder Default Title

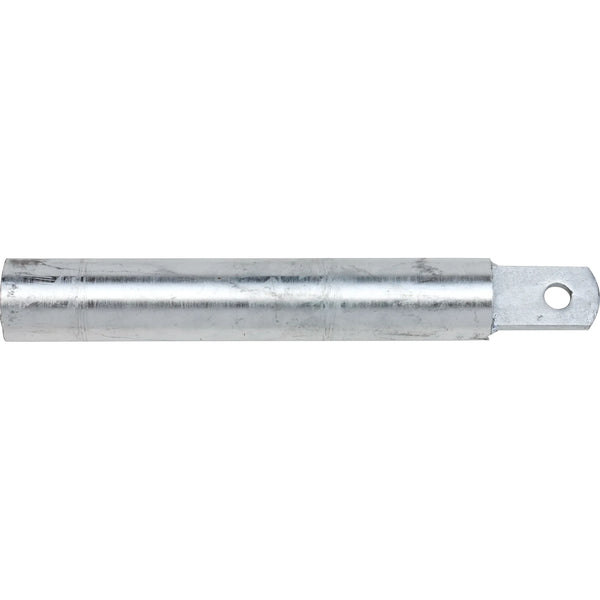

Insertion Standard

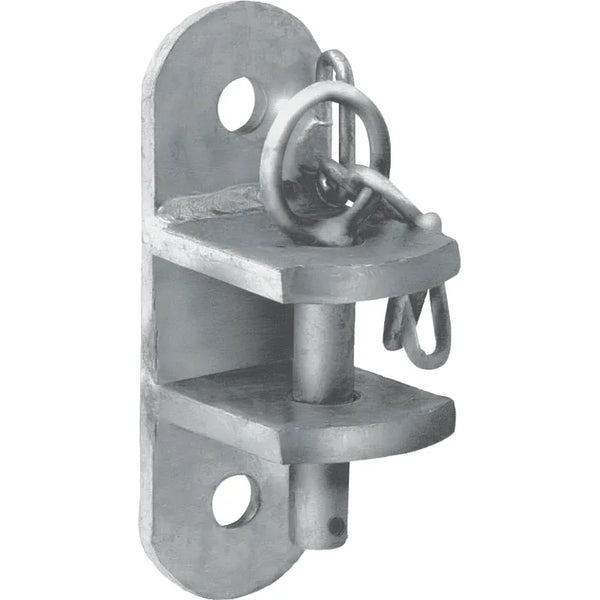

Single screw-on part Default Title

Post Ø 102 mm 2.75 m - for installation sleeve

Post Ø 102 mm 2.25 m - with 200x200x8 mm base plate

[{"id":44083993837846,"title":"2 m","option1":"2 m","option2":null,"option3":null,"sku":"321510","requires_shipping":true,"taxable":true,"featured_image":{"id":81829164581243,"product_id":8098109980950,"position":1,"created_at":"2026-01-22T17:59:59+01:00","updated_at":"2026-02-04T19:28:02+01:00","alt":"Trägergestell PATURA","width":2897,"height":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682","variant_ids":[44083993837846,44083993870614,44083993903382,44083993936150]},"available":true,"name":"Support frame - 2 m","public_title":"2 m","options":["2 m"],"price":15800,"weight":19000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4032922140812","featured_media":{"alt":"Trägergestell PATURA","id":68841262842235,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2897,"width":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44083993870614,"title":"3 m","option1":"3 m","option2":null,"option3":null,"sku":"321511","requires_shipping":true,"taxable":true,"featured_image":{"id":81829164581243,"product_id":8098109980950,"position":1,"created_at":"2026-01-22T17:59:59+01:00","updated_at":"2026-02-04T19:28:02+01:00","alt":"Trägergestell PATURA","width":2897,"height":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682","variant_ids":[44083993837846,44083993870614,44083993903382,44083993936150]},"available":true,"name":"Support frame - 3 m","public_title":"3 m","options":["3 m"],"price":20900,"weight":27000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4032922140829","featured_media":{"alt":"Trägergestell PATURA","id":68841262842235,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2897,"width":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44083993903382,"title":"4 m","option1":"4 m","option2":null,"option3":null,"sku":"321512","requires_shipping":true,"taxable":true,"featured_image":{"id":81829164581243,"product_id":8098109980950,"position":1,"created_at":"2026-01-22T17:59:59+01:00","updated_at":"2026-02-04T19:28:02+01:00","alt":"Trägergestell PATURA","width":2897,"height":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682","variant_ids":[44083993837846,44083993870614,44083993903382,44083993936150]},"available":true,"name":"Support frame - 4 m","public_title":"4 m","options":["4 m"],"price":25500,"weight":35000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4032922140836","featured_media":{"alt":"Trägergestell PATURA","id":68841262842235,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2897,"width":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44083993936150,"title":"5 m","option1":"5 m","option2":null,"option3":null,"sku":"321513","requires_shipping":true,"taxable":true,"featured_image":{"id":81829164581243,"product_id":8098109980950,"position":1,"created_at":"2026-01-22T17:59:59+01:00","updated_at":"2026-02-04T19:28:02+01:00","alt":"Trägergestell PATURA","width":2897,"height":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682","variant_ids":[44083993837846,44083993870614,44083993903382,44083993936150]},"available":true,"name":"Support frame - 5 m","public_title":"5 m","options":["5 m"],"price":29900,"weight":43000,"compare_at_price":null,"inventory_management":"shopify","barcode":"4032922140843","featured_media":{"alt":"Trägergestell PATURA","id":68841262842235,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2897,"width":2897,"src":"\/\/sanilu.ch\/cdn\/shop\/files\/32151X_Traegergestell-Schraegfressgitter-modular_b119a643-1193-4a53-afa7-9786cefc3236.webp?v=1770229682"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Ideal für:

Pferd

The feed fence is the central structural element in a playpen. The feed fence "works" correctly if it is suitable for the age of the animals and their type of use and is installed at the correct height. Also, the "correct" feed fence only fulfills its function if the "environment", i.e. the floor space, feed table partition and feed table are suitable. To ensure optimum installation conditions for the feed fence, it is essential to know which feed fence is to be used as early as the planning phase of a barn.

Modular horse feed fence support frame

Base frame in nominal lengths of 2, 3, 4 and 5 m, i.e. center post / center post for mounting for mounting post Ø102 mm
All intermediate dimensions possible by shortening the tubes
Height: 1.57 m or 1.90 m
Tube Ø base frame: 60.3 mm (2")
Bars: 48.3 mm (1 1/2")
Installation on existing building parts or with Ø102 mm posts
Fastening on both sides with bolts, so the entire feed fence can be pivoted
4 adjustable slide-in parts are integrated in the support tube for easy installation
Required feeding space width for large horses approx. 60-70 cm
Light grid spacing: 25-30 cm = center distance of the grids from 30-35 cm
Supplied unassembled as a kit

Type: Support frame for modular feeding fence 2 m (without bars)
Version: 2 support tubes Ø 60.3 mm,
4 adjustable slots Weight: 19 kg
① Nominal length: 200 cm
② Mounting length: 180 - 195 cm
Feeding places: approx. 6

Type: Support frame for modular feeding fence 3 m (without bars)
Design: 2 support tubes Ø 60.3 mm,
4 adjustable slots
Weight: 27 kg
① Nominal length: 300 cm
② Mounting length: 280 - 295 cm
Feeding places: approx. 9

Type: Support frame for modular feeding fence 4 m (without bars)
Design: 2 support tubes Ø 60.3 mm,
4 adjustable slots, with center support
Weight: 35 kg
① Nominal length: 400 cm
② Mounting length: 380 - 395 cm
Feeding places: approx. 12

Type: Support frame for modular feeding fence 5 m (without bars)
Design: 2 support tubes Ø 60.3 mm,
4 adjustable slots, with center support
Weight: 43 kg
① Nominal length: 500 cm
② Mounting length: 480 - 495 cm
Feeding places: approx. 15

Safety note:
Clear lattice spacing between 5 and 30 cm must be avoided!
