Robust, enameled cast iron bowl
Simple water regulation, can be switched off
Suitable for circulation heating systems

Artikelnummer: 1000115

Price

incl. VAT Shipping information

Delivery time 3-5 working days – Parcel shipping

Quantity

Order now

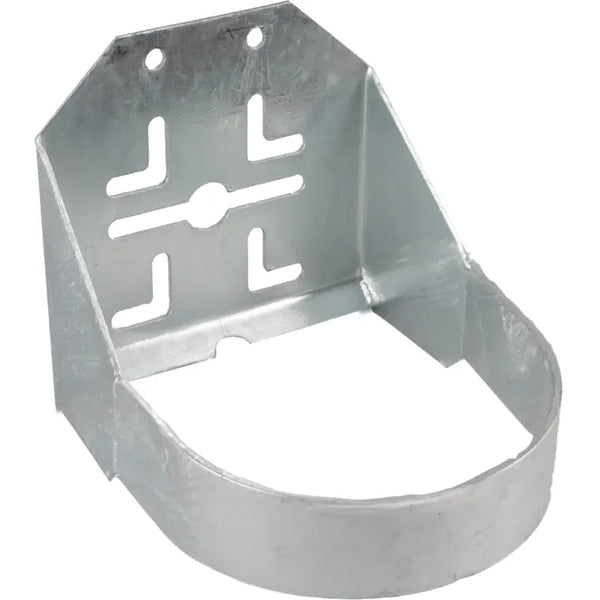

Protective bracket A2 for wall and pipe mounting Default Title

Protective bracket A5 for wall mounting Default Title

Mounting bracket for posts 1 ¼" - 2" Default Title

Clamp 90 Drinking bowl holder Default Title

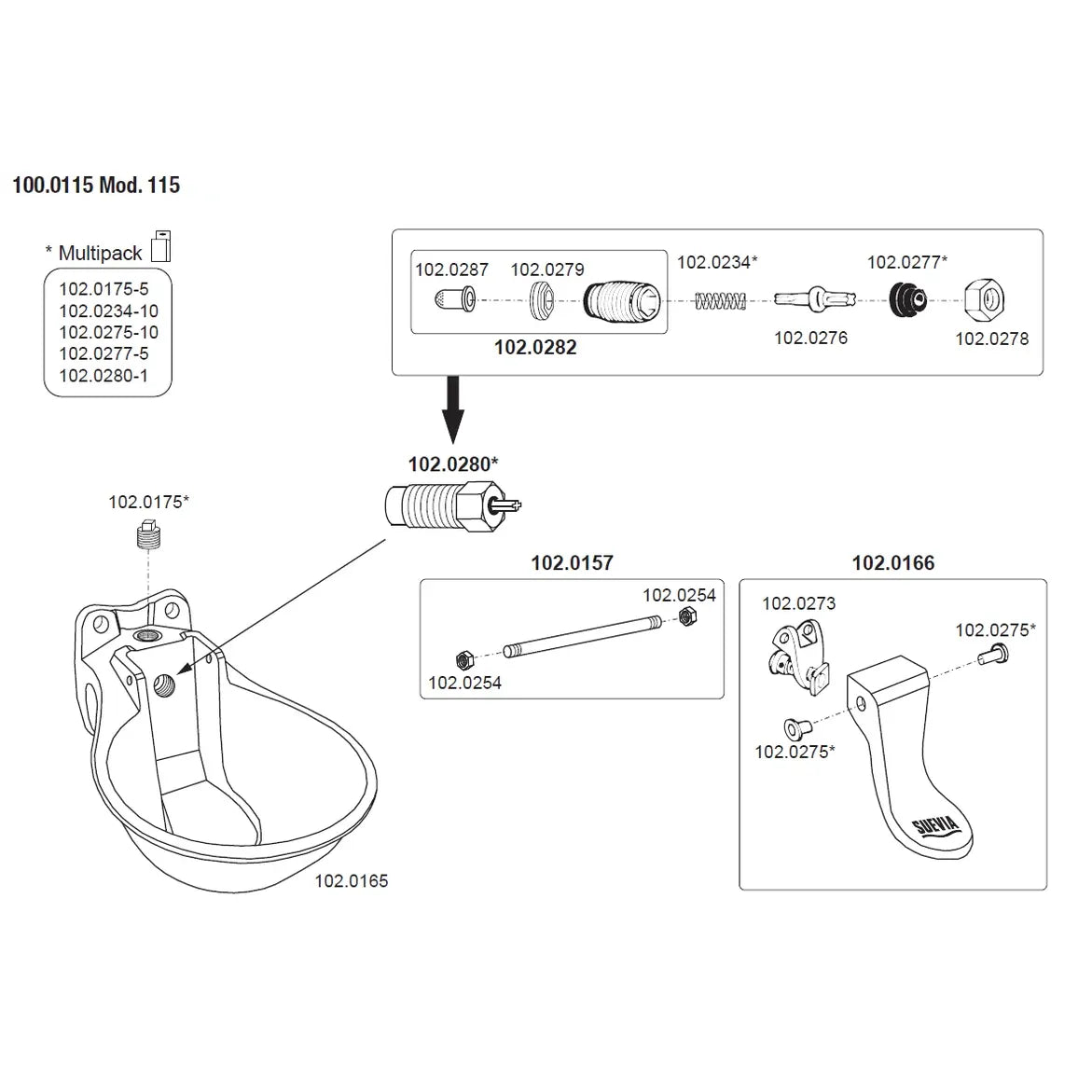

Tongue valve cpl. Default Title

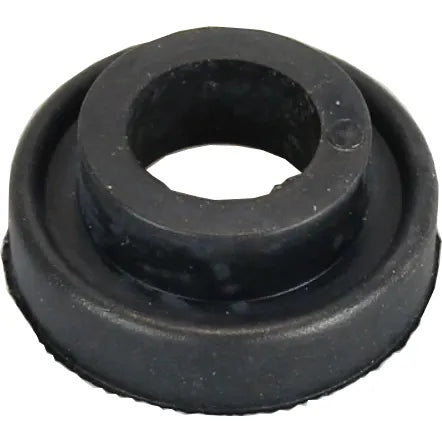

Suevia valve seal (service pack 5 pcs/pack) Default Title

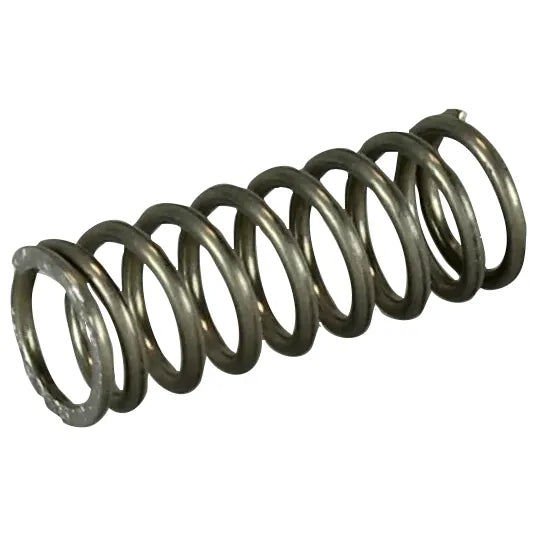

Valve spring Suevia (service pack 10 pcs/pack) Default Title

Ideal für:

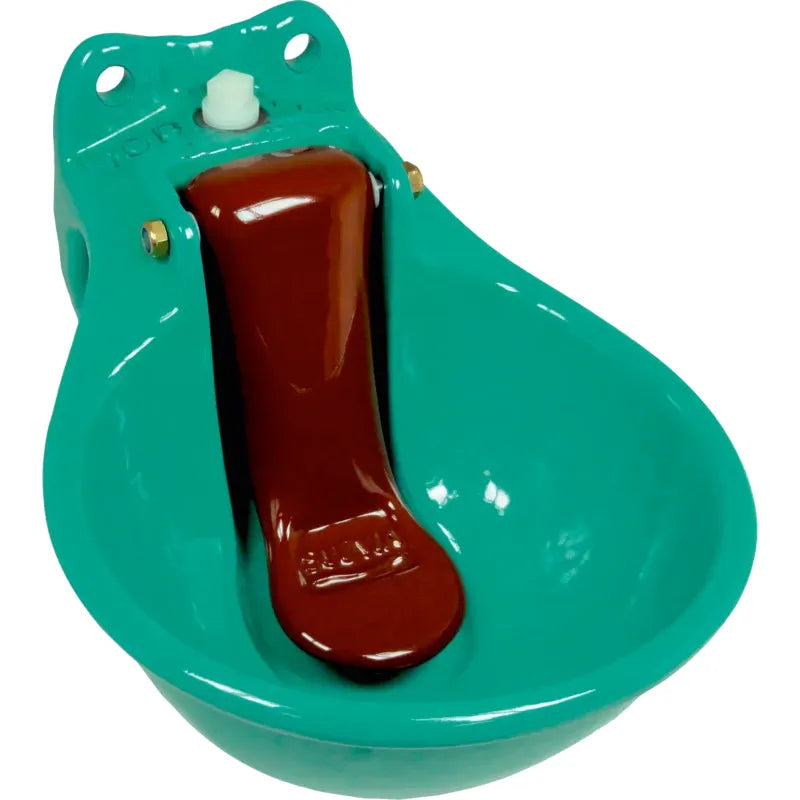

Tongue valve basin mod. 115:

- large enameled cast iron bowl
- Water regulation can be switched off
- 1/2" connection at top and bottom
- Suitable for circulation heating systems
- Inlet approx. 16 l / min at 5 bar

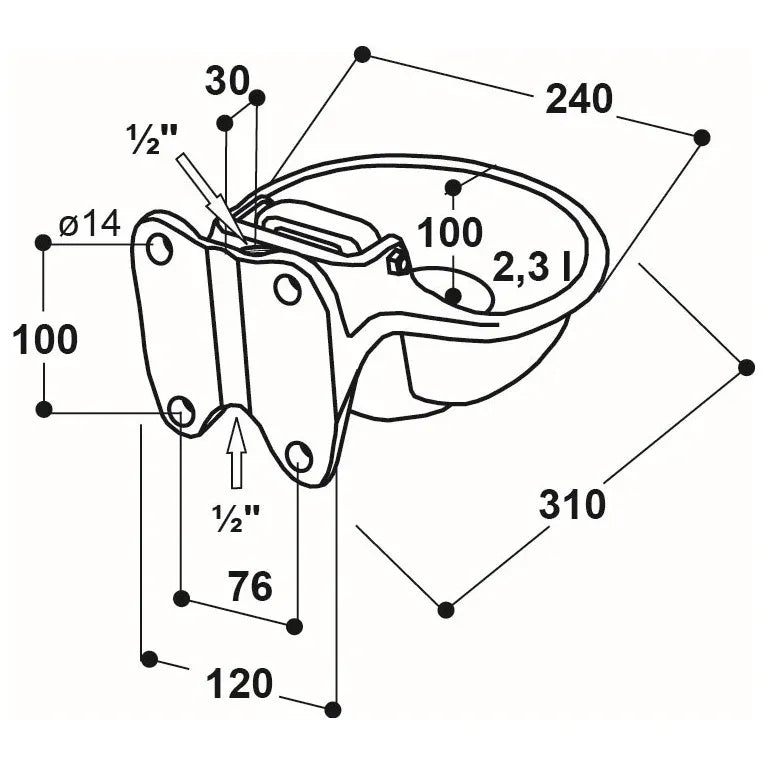

- Inlet approx. 16 l / min at 5 bar - Length31 cm - Width24 cm - Height19 cm

All temperature specifications regarding frost resistance refer to use in stables without direct wind and weather influenceWater requirement per day - Cows = 60 l - 180 l - Cattle over 1 year = 25 l - 70 l - Cattle under 1 year = 15 l - 30 l - Calves up to 6 months = 5 l - 25 l - Sheep/goats = 2 l - 12 l - Large horses on pasture/mare lactating = 15 l - 60 l - Foals (200 kg) = 15 l - 20 l
