Corrugated neck tube

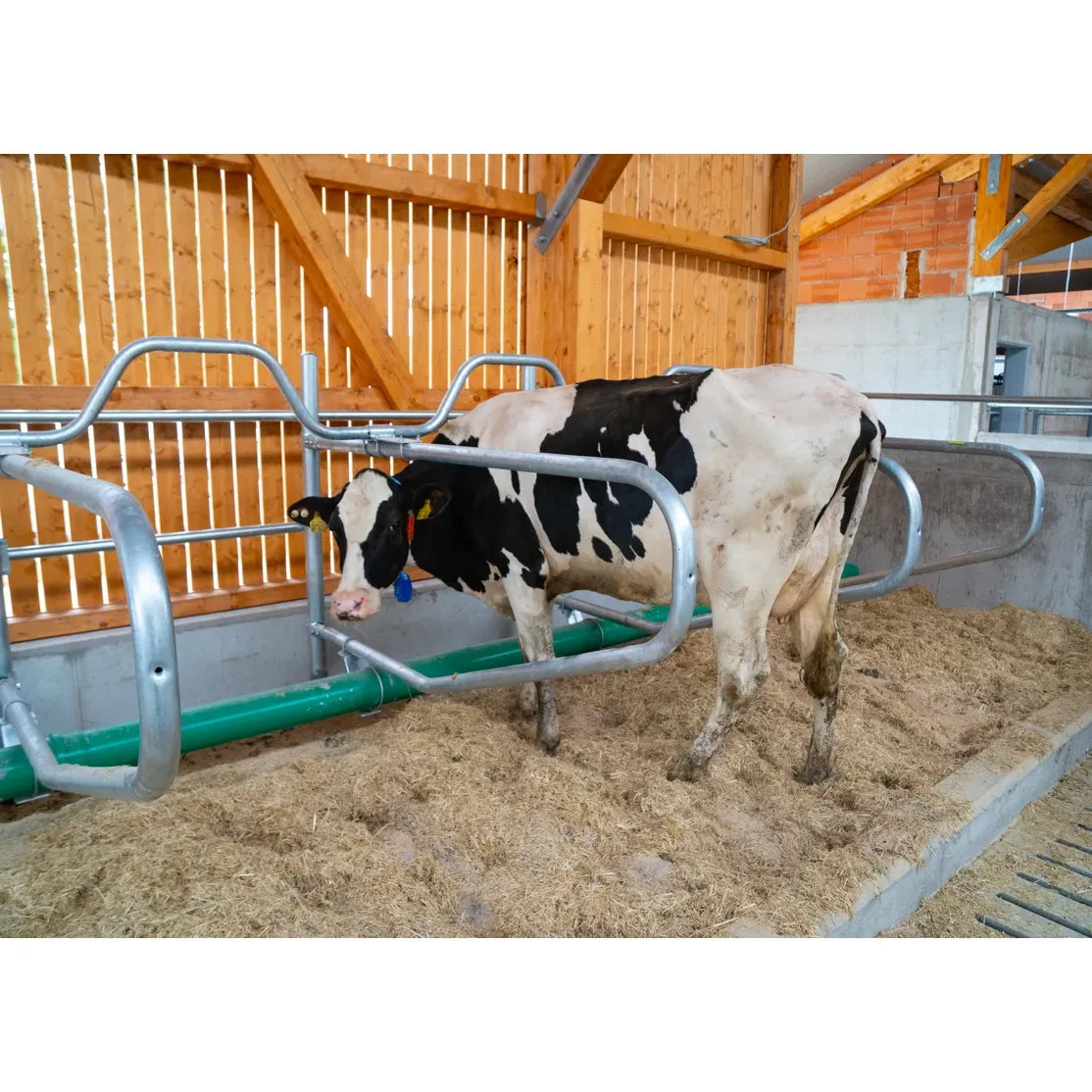

The corrugated neck tube offers the cows more space when entering and standing up due to the special tube shape. In this way, the animals are controlled, they stand up straight in the stall and lie down in the middle. To connect two corrugated neck pipes, they are clamped and connected to every second cubicle bracket using the long cross clamp, 60 x 48 mm.

Corrugated neck tube:

• for large cattle
• Ø 48.3 mm x 3.2 mm
• 2 different widths
• Can be mounted on all Patura cubicle bars for large cattle

Type: Corrugated neck tube 1.20 m
Design:
for two cubicles, each 1.20 m wide Tube 48.3 mm x 3.2 mm
Total length: 2.38 m
Weight: 10.9 kg

Type: Corrugated neck tube 1.25 m
Version:
for two cubicles, each 1.25 m wide
Tube 48.3 mm x 3.2 mm
Total length: 2.48 m
Weight: 11.3 kg

All posts and stall stands that come into contact with manure and slurry must be provided with a bitumen protective coating!
