Gate RS3

Advantages:

• Tube-in-tube displacement with clamping screw for easy length adjustment by 1 m at a time
• Gates R: Bolt safety catch with self-closing drop-down flap
• Gates RS: practical opening and closing with quick-release fastener
• Proven model with a wide range of applications
• Gate R5 (five crossbars) and R4 (four crossbars) with double bolt for sliding, gate R3 (three crossbars) with single bolt
• Secured with self-closing drop-down flap (standard version) or bolt lock security (accessory)
• Base section: solid 2" tubes (60.3 mm), slide-in section: 1 ½" tubes (48.3 mm)
• Closing: The quick-release fastener engages automatically in the receptacles
• Opening: One-handed operation - just pull and lock
• Significant working time savings in systems with a large number of doors
• Safety: animals cannot open the quick-release fastener

Gate RS3 (1/2)

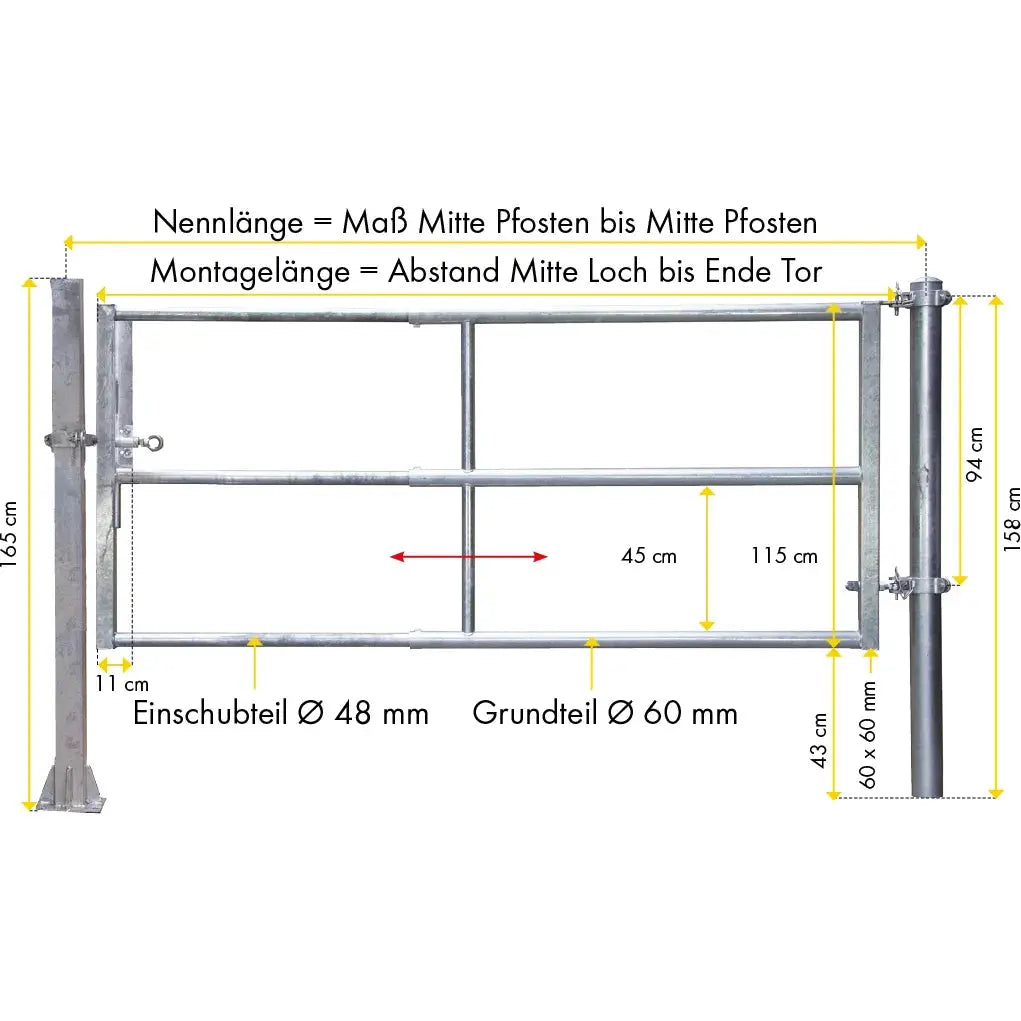

- Nominal length 160 - 220 cm (point 2 in the picture)
- Installation length 140 - 200 cm (point 1 in the picture)
- Mounting length base 111 cm
- Assembly length of slide-in section 108 cm
- Weight 37 kg

Door RS3 (2/3)
- Nominal length 195 - 295 cm (point 2 in the picture)
- Installation length 200 - 290 cm (point 1 in the picture)
- Installation length of base section 161 cm
- Assembly length insert 156 cm
- Weight 48 kg

Door RS3 (3/4)
- Nominal length 295 - 405 cm (point 2 in the picture)
- Installation length 290 - 390 cm (point 1 in the picture)
- Assembly length base section 261 cm
- Assembly length insert 180 cm
- Weight 61 kg

Door RS3 (4/5)
- Nominal length 395 - 505 cm (point 2 in the picture)
- Installation length 390 - 490 cm (point 1 in the picture)
- Assembly length base section 361 cm
- Assembly length of slide-in section 180 cm
- Weight 76 kg

Door RS3 (5/6)
- Nominal length 495 - 605 cm (point 2 in the picture)
- Installation length 490 - 590 cm (point 1 in the picture)
- Assembly length base section 461 cm
- Assembly length of slide-in section 180 cm
- Weight 87 kg

Order posts and mounting accessories separately
