Hoof trimming crush Profi E

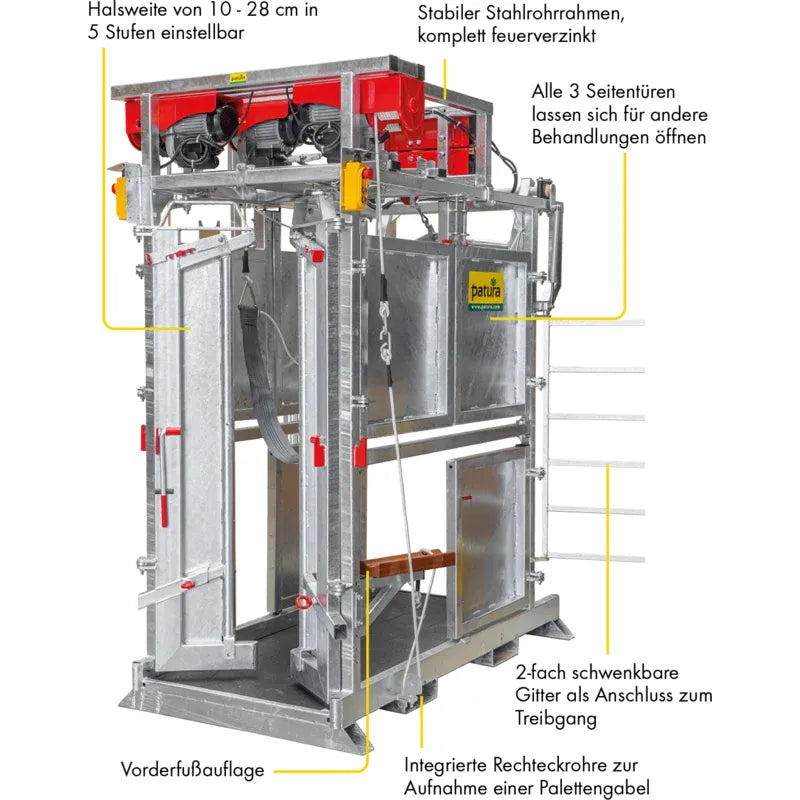

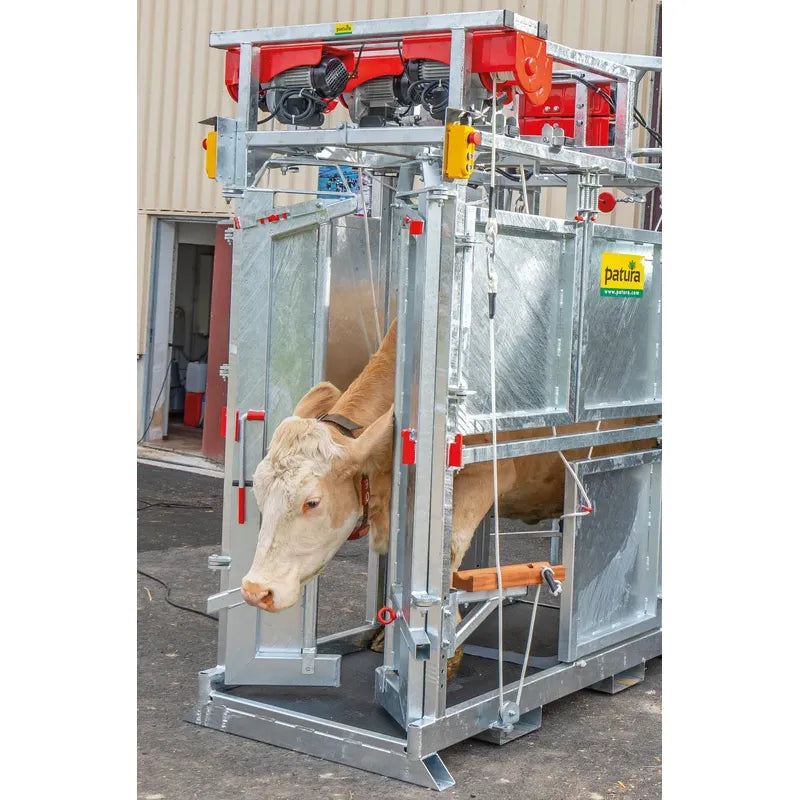

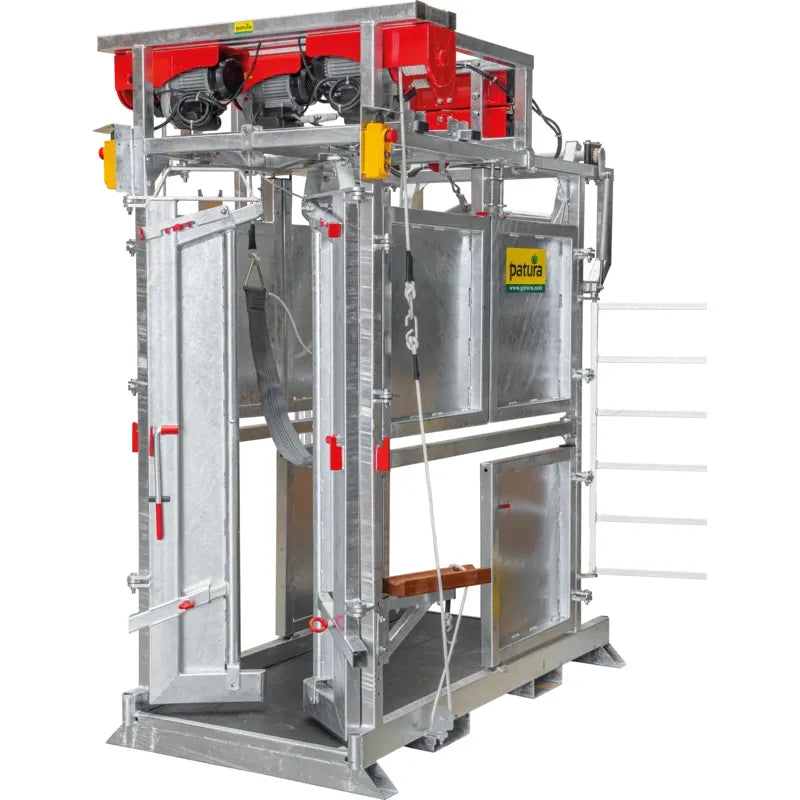

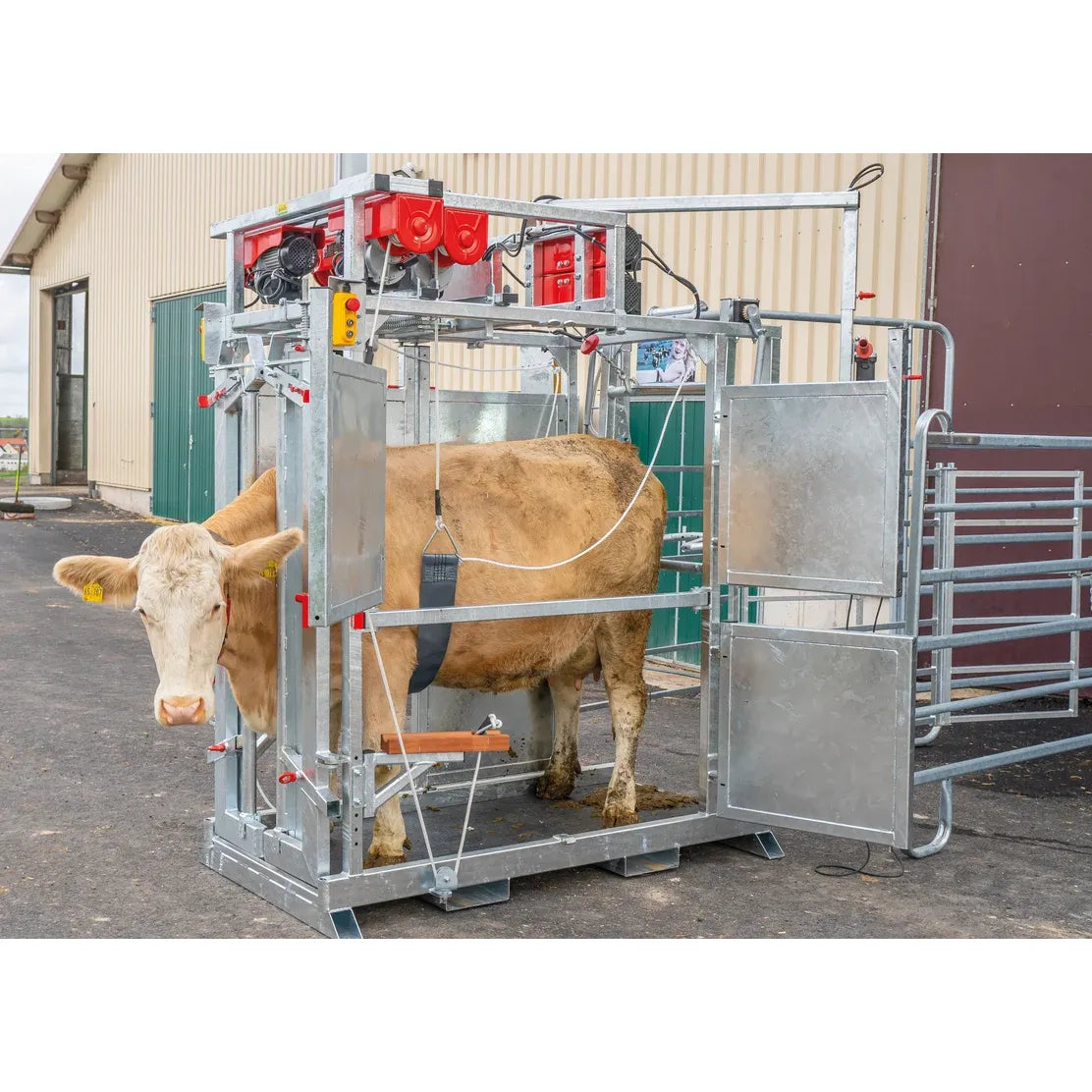

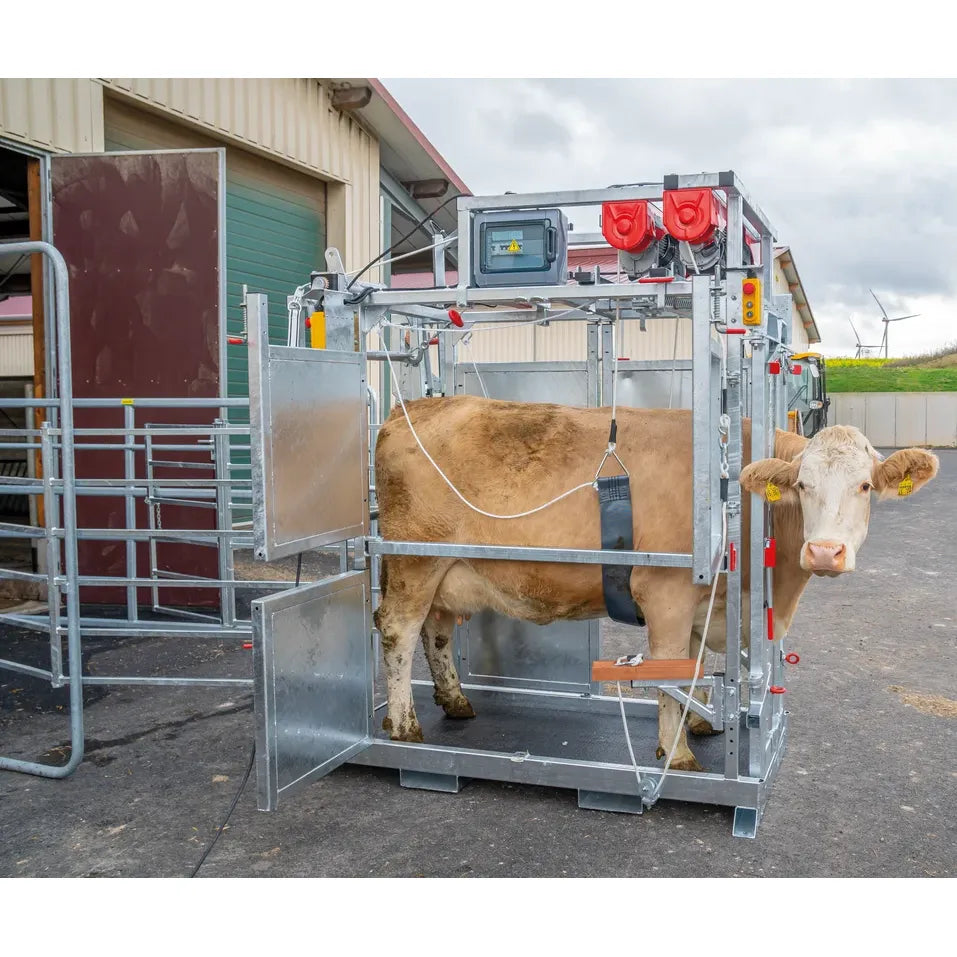

The hoof trimming crush type "Profi E" enables comfortable and professional hoof trimming in larger herds. The front foot, rear foot and belly strap winch as well as the backstop are each operated by an electric motor. LED lighting and sockets for connecting your tools make work particularly easy. The neck catch frame is designed so that the animal is automatically caught when it enters. All side doors can also be opened for other treatments, allowing the best possible access to the animal. A sturdy steel frame and complete hot-dip galvanization ensure the highest quality.

Operating instructions PDF

Hoof trimming crush Profi:
- Electric motors 230 V / 1600 W
- Neck width adjustable from 10 - 28 cm in 5 steps
- Sturdy steel frame, completely hot-dip galvanized
- 2-way swivel grids as connection to the drive aisle
- Integrated rectangular tubes for holding a pallet fork
- For front foot winches
- Belly strap
- Backstop
- Rear foot winch
- 1500 kg lifting capacity each

External dimensions:
- Length: 200 cm
- Width 150 cm
- Height: 240 cm

Internal dimensions:
- Length: 190 cm
- Width 82 cm
- Height: 1.80 cm
- Weight: 620 kg

Please order front foot winch or front footrest separately!
