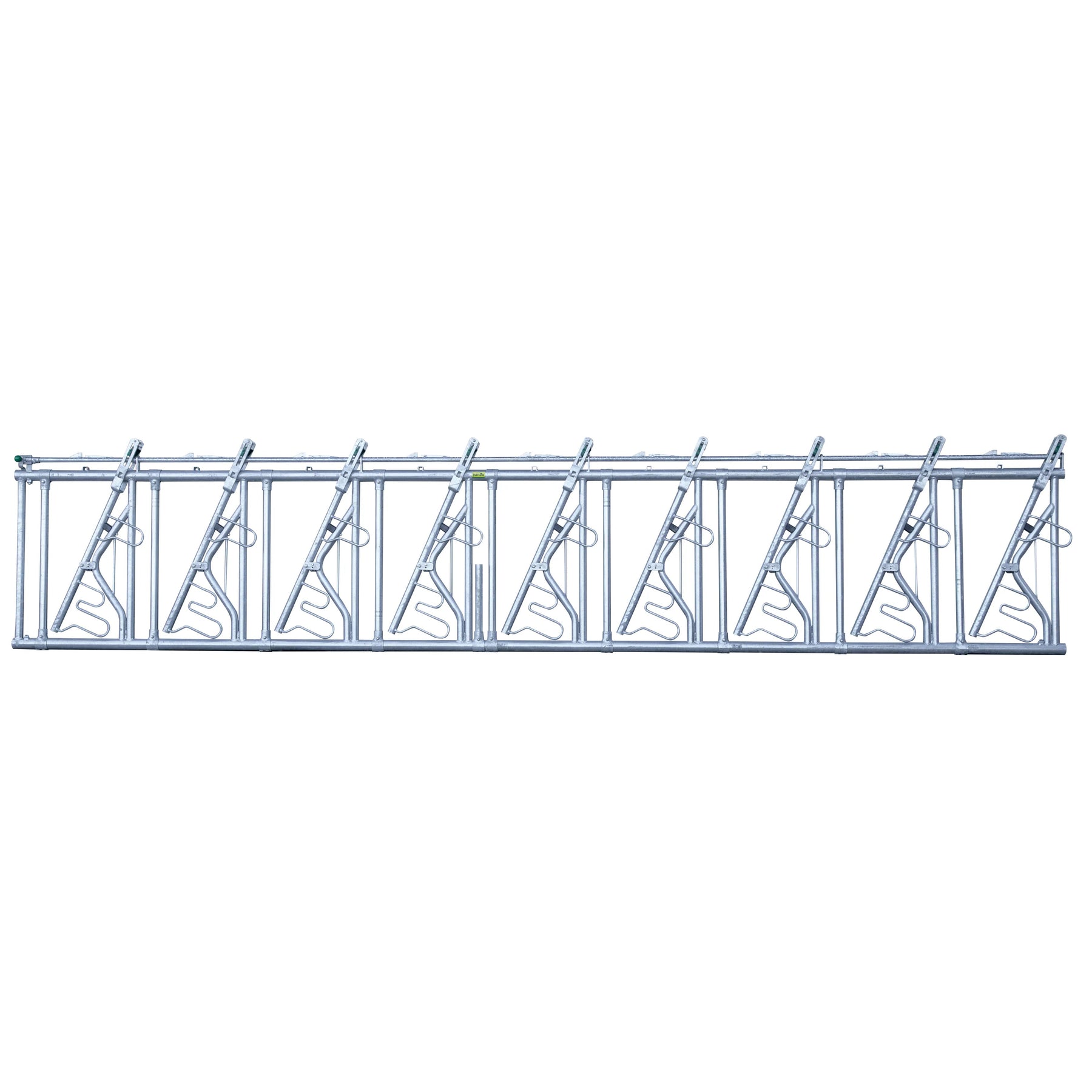

Safety self-locking grille type SSV

Sanilu_Sicherheits-Selbstfangfressgitter_SSV-215-250_Patura1
Sanilu_Sicherheits-Selbstfangfressgitter_SSV-215-250_Patura2
Sanilu_Sicherheits-Selbstfangfressgitter-SSV_Patura1
Sanilu_Sicherheits-Selbstfangfressgitter_SSV-215-250_Patura3
Sanilu_Sicherheits-Selbstfangfressgitter_SSV-215-250_Patura4
Sanilu_Sicherheits-Selbstfangfressgitter_SSV-215-250_Patura5
Sanilu_Sicherheits-Selbstfangfressgitter-SSV_Patura2
  • Safety release prevents injuries
  • Noise insulation thanks to special rubber buffers
  • Various sizes and mounting options available

Artikelnummer: 321001

Safety self-locking grille type SSV

Artikelnummer: 321001
  • Safety release prevents injuries
  • Noise insulation thanks to special rubber buffers
  • Various sizes and mounting options available

Self-gripping grille
Normal price CHF 249.00
incl. VAT Shipping information

Delivery time 5-10 working days

/
twint kauf pf mc visa paypal ae

Slide-in Abtr. V Standard

CHF 10.80

Slide-in Abtr. V angled

CHF 11.90

Slide-in Abtr. V Standard double

CHF 18.15

Slide-in Abtr. V Compact single

CHF 11.50

Slide-in Abtr. V Compact double

CHF 18.50

Slide-in Abtr. V Clamp 102 single

CHF 18.15

Slide-in Abtr. V Clamp 102 double

CHF 25.80

Slide-in Abtr. V Clamp 76 single

CHF 14.00

Slide-in Abtr. V Clamp 76 double

CHF 22.60

Slide-in Abtr. V with eyebolt

CHF 22.60

Ideal fĂŒr:

The PATURA safety self-catching feed fences ensure that animals that lie down or slip in the feed fence can escape from the bottom of the feed fence without any problems. Thanks to the special anti-noise design, they are triple noise-insulated. Rubber buffers prevent the development of noise when opening or closing the catch bar. A plastic-coated locking bolt enables silent locking. The pivot point of the catch bar is reinforced for years of wear-free operation. We only use high-quality steel tubes of 60.3 mm (2") for the frame of the feed fence. The diameter of the intermediate tubes and catching bars is 42.4 mm. All feeding places can be locked individually. It is possible to install the feed fences at an angle. We supply standard lengths from 1 to 6 m with feeding place widths from 60 to 100 cm.

Advantages:

  • Specially hardened bearing of the catch bar
  • deflector bar prevents collars from being threaded in
  • Solid rubber buffer for maximum noise insulation
  • internal plastic buffer for resetting the catch bar
  • Neck width is adjustable
  • Durability due to hot-dip galvanizing inside and outside
  • Grille can be swiveled when mounted straight (use support wheel from 3 m!)
  • 10 assembly variants

Safety self-locking grille type-SSV_321011

Type: SSV 1/1
Weight: 23 kg
① Nominal length: 100 cm
② Mounting length: 81 - 100 cm
⑱ Frame length: 72 cm
Eating places: 1
Feeding space width: 100 cm
④ Feeding place spacing: 85 cm

Type: SSV 2/1.6
Weight: 43 kg
① Nominal length: 160 cm
② Mounting length: 141 - 160 cm
⑱ Frame length: 132 cm
Eating places: 2
Feeding space width: 80 cm
④ Feeding place spacing: 63 cm

Type: SSV 3/2.15
Weight: 56 kg
① Nominal length: 215 cm
② Assembly length: 196 - 215 cm
⑱ Frame length: 187 cm
Eating places: 3
Feeding space width: 71.6 cm
④ Feeding place spacing: 58 cm

Type: SSV 3/2.5
Weight: 66 kg
① Nominal length: 250 cm
② Assembly length: 231 - 250 cm
⑱ Frame length: 222 cm
Feeding places: 3
Eating space width: 83 cm
④ Feeding place spacing: 75 cm

Type: SSV 4/3
Weight: 84 kg
① Nominal length: 300 cm
② Assembly length: 281 - 300 cm
⑱ Frame length: 272 cm
Eating places: 4
Feeding space width: 75 cm
④ Feeding space spacing: 66.5 cm

Type: SSV 5/3.4
Weight: 101 kg
① Nominal length: 340 cm
② Assembly length: 321 - 340 cm
⑱ Frame length: 312 cm
Feeding places: 5
Feeding space width: 68 cm
④ Distance between feeding places: 61 cm

Type: SSV 5/4
Weight: 112 kg
① Nominal length: 400 cm
② Installation length: 381 - 400 cm
⑱ Frame length: 372 cm
Eating places: 5
Feeding space width: 80 cm
④ Feeding place spacing: 73 cm

Type: SSV 6/4
Weight: 121 kg
① Nominal length: 400 cm
② Assembly length: 381 - 400 cm
⑱ Frame length: 372 cm
Eating places: 6
Eating space width: 66.7 cm
④ Feeding place spacing: 61 cm

Type: SSV 6/4.4
Weight: 125 kg
① Nominal length: 440 cm
② Assembly length: 421 - 440 cm
⑱ Frame length: 412 cm
Feeding places: 6
Feeding space width: 73.3 cm
④ Feeding place spacing: 67.5 cm

Type: SSV 6/5
Weight: 144 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
⑱ Frame length: 472 cm
Eating places: 6
Eating space width: 83.3 cm
④ Feeding space spacing: 77.4 cm

Type: SSV 7/5
Weight: 154 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
⑱ Frame length: 472 cm
Eating places: 7
Feeding space width: 71.4 cm
④ Feeding space spacing: 66.5 cm

Type: SSV 8/5
Weight: 165 kg
① Nominal length: 500 cm
② Assembly length: 481 - 500 cm
⑱ Frame length: 472 cm
Eating places: 8
Eating space width: 62.5 cm
④ Feeding space spacing: 58 cm

Type: SSV 7/5.25
Weight: 158 kg
Eating places: 7
Feeding place width: 75 cm
④ Feeding place distance: 71 cm

Type: SSV 8/5.4
Weight: 171 kg
① Nominal length: 540 cm
② Assembly length: 521 - 540 cm
⑱ Frame length: 512 cm
Eating places: 8
Feeding space width: 67.5 cm
④ Feeding space spacing: 63 cm

Type: SSV 8/6
Weight: 184 kg
① Nominal length: 600 cm
② Assembly length: 581 - 600 cm
⑱ Frame length: 572 cm
Eating places: 8
Feeding space width: 75 cm
④ Feeding space spacing: 70.5 cm

Type: SSV 9/6
Weight: 188 kg
① Nominal length: 600 cm
② Assembly length: 591 - 600 cm
⑱ Frame length: 572 cm
Eating places: 9
Feeding space width: 66.7 cm
④ Feeding space spacing: 63 cm

Type: SSV 10/6
Weight: 204 kg
① Nominal length: 600 cm
② Assembly length: 581 - 600 cm
⑱ Frame length: 572 cm
Eating places: 10
Feeding space width: 60 cm
④ Feeding place spacing: 56 cm

Safety note
Important: Do not leave the barn while the "Catch" position is set!
