Separation drinking trough R4

Sanilu_Abtrennung_R4_Traenk_Patura
Sanilu_Nennlaenge_Montagelaenge_Patura
  • Robust construction for long-lasting stability
  • Versatile use for various animal species
  • Easy adaptation to different installation situations

Artikelnummer: 323220

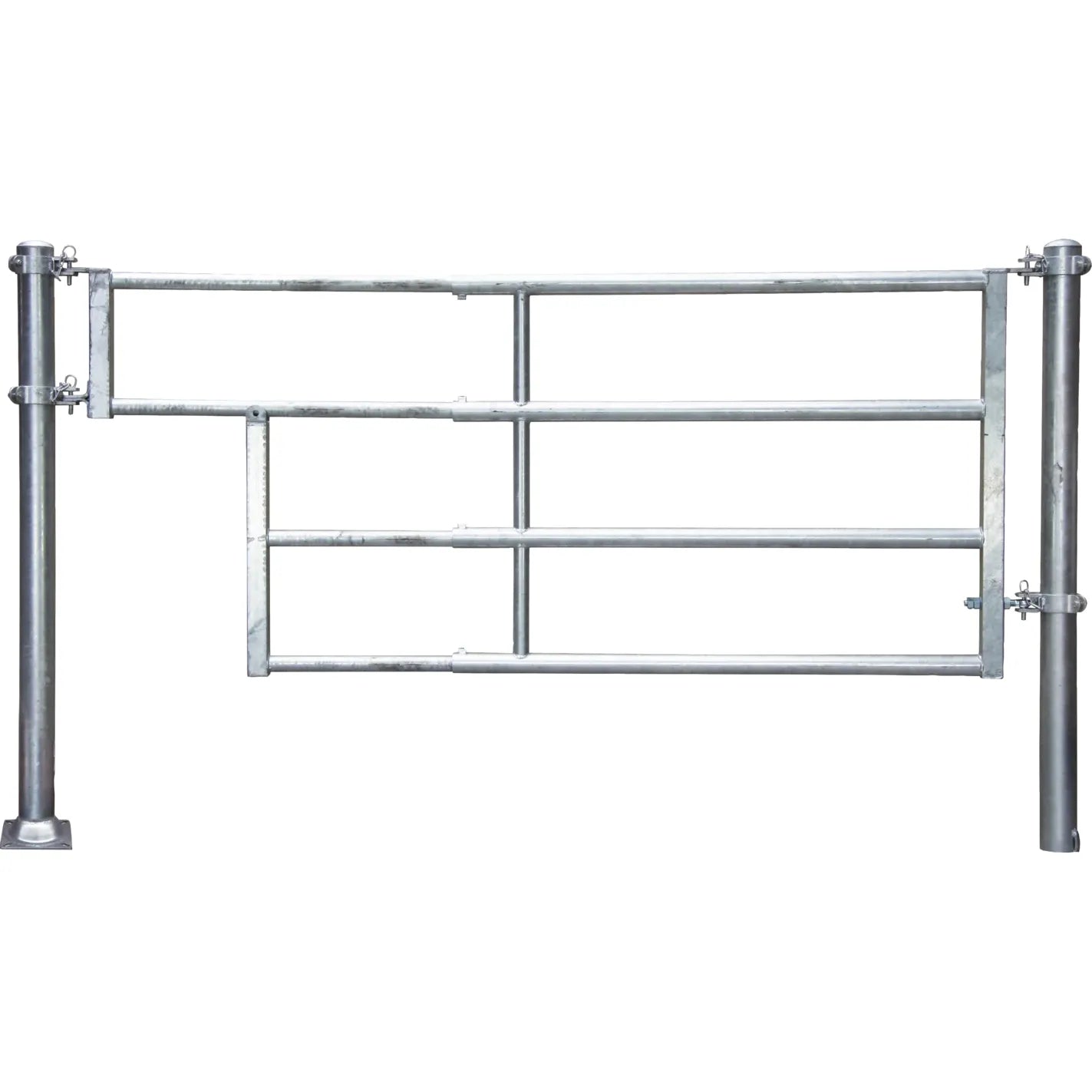

Separation drinking trough R4

Artikelnummer: 323220
  • Robust construction for long-lasting stability
  • Versatile use for various animal species
  • Easy adaptation to different installation situations

Separation design
Normal price CHF 432.00
incl. VAT Shipping information

Delivery time 5-10 working days

/
twint kauf pf mc visa paypal ae

Bolt-on latch Default Title

CHF 32.30

Quick-release fastener TS, Abtr. R Default Title

CHF 48.50

Securing screw for feed grids and partitions Default Title

CHF 10.90

Interspace protection bar Default Title

CHF 22.50

Ideal für:

  • Proven, heavy-duty design
  • Pipe spacing 30cm
  • Wide range of applications from horses, dairy cattle, calves to fattening bulls
  • Large selection of slide-in parts for almost all installation situations
  • For horse stalls
  • Single paddocks
  • Paddocks
  • Optional partitioning between the spaces for the safety of your horses

Separation of drinking trough R4 (1/2)

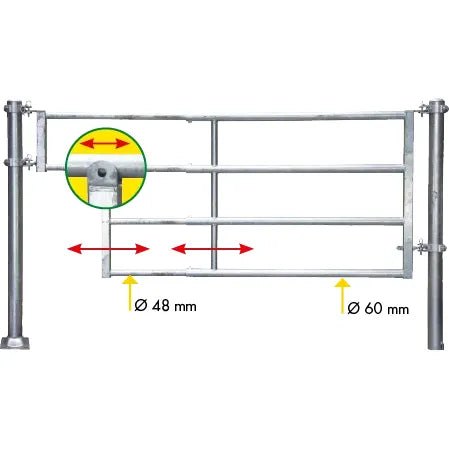

- Nominal length 205 - 295 cm (point 2 in the picture)
- Installation length 185 - 275 cm (point 1 in the picture)
- Mounting length base 111 cm
- Assembly length insert 211 cm
- Weight 58 kg

Drinking trough partition R4 (2/3)
- Nominal length 255 - 355 cm (point 2 in the picture)
- Installation length 235 - 335 cm (point 1 in the picture)
- Installation length of base section 161 cm
- Assembly length of slide-in section 211 cm
- Weight 64 kg

Drinking trough partition R4 (3/4)
- Nominal length 355 - 455 cm (point 2 in the picture)
- Installation length 335 - 435 cm (point 1 in the picture)
- Assembly length base section 261 cm
- Assembly length of slide-in section 211 cm
- Weight 78 kg

Drinking trough partition R4 (4/5)
- Nominal length 455 - 555 cm (point 2 in the picture)
- Installation length 435 - 535 cm (point 1 in the picture) - Installation length base section 361 cm
- Installation length of slide-in section 211 cm
- Weight 96 kg

Order posts and mounting accessories separately
