Name: Tongue valve basin Mod. 41A
Brand: Patura
SKU: 1000041
Price: 325.0 CHF
Availability: InStock

Zungenventil-Becken Mod. 41A Patura Sanilu

Frost-proof down to -25°C, ideal for cold climates.
Supplies 15-20 animals, high capacity.
Simple water quantity regulation, adjustable water pressure.

Artikelnummer: 1000041

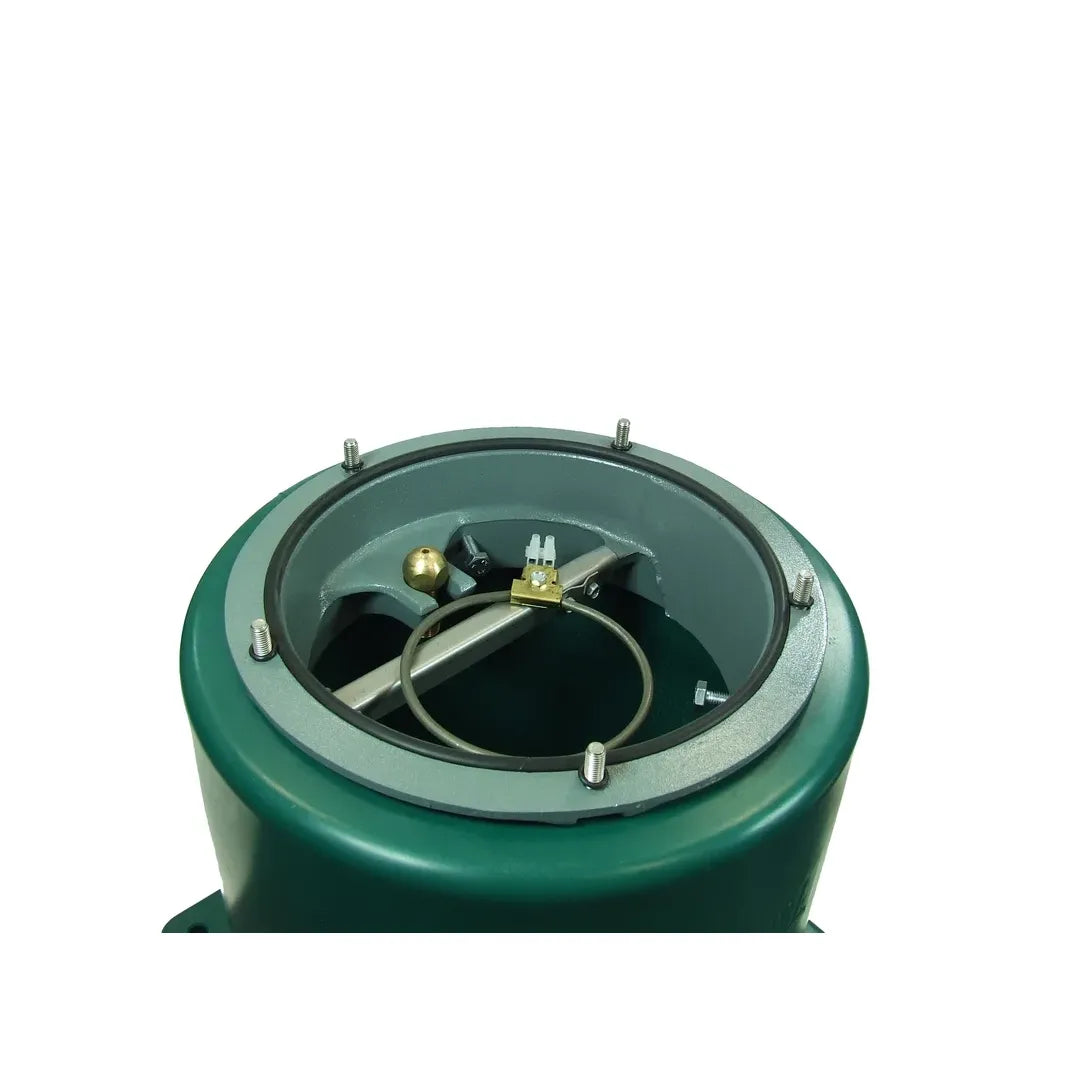

Heating coil

80 W (frost-proof down to -25 degrees)

180 W (frost-proof down to -35 degrees)

Price

incl. VAT Shipping information

Delivery time 3-5 working days

Product family

Quantity

Order now:

Transformer Mod. 100 (24V / 100W)

Frost protection thermostat Default Title

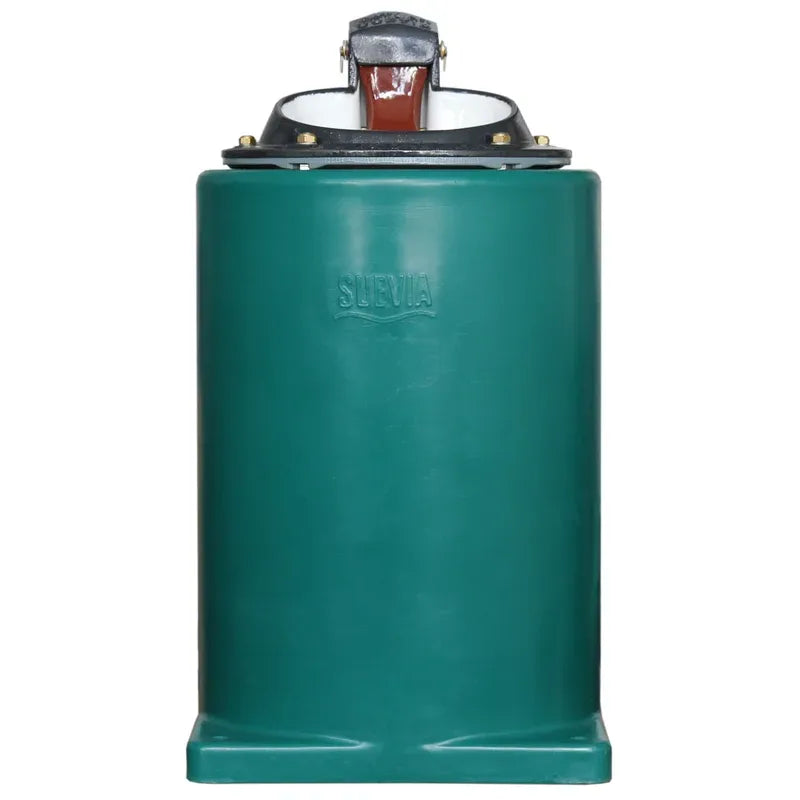

Thermotube for Mod. 41A and 43A 42 x 42 x 40 cm

[{"id":44083494453526,"title":"80 W (frost-proof down to -25 degrees)","option1":"80 W (frost-proof down to -25 degrees)","option2":null,"option3":null,"sku":"1000041","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Tongue valve basin Mod. 41A - 80 W (frost-proof down to -25 degrees)","public_title":"80 W (frost-proof down to -25 degrees)","options":["80 W (frost-proof down to -25 degrees)"],"price":32500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4025338000191","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44083494486294,"title":"180 W (frost-proof down to -35 degrees)","option1":"180 W (frost-proof down to -35 degrees)","option2":null,"option3":null,"sku":"1001041","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Tongue valve basin Mod. 41A - 180 W (frost-proof down to -35 degrees)","public_title":"180 W (frost-proof down to -35 degrees)","options":["180 W (frost-proof down to -35 degrees)"],"price":32500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"4025338039641","requires_selling_plan":false,"selling_plan_allocations":[]}]

Ideal für:

SUEVIA drinking bowl mod. 41A - SIBIRIA, heatable up to 180 W

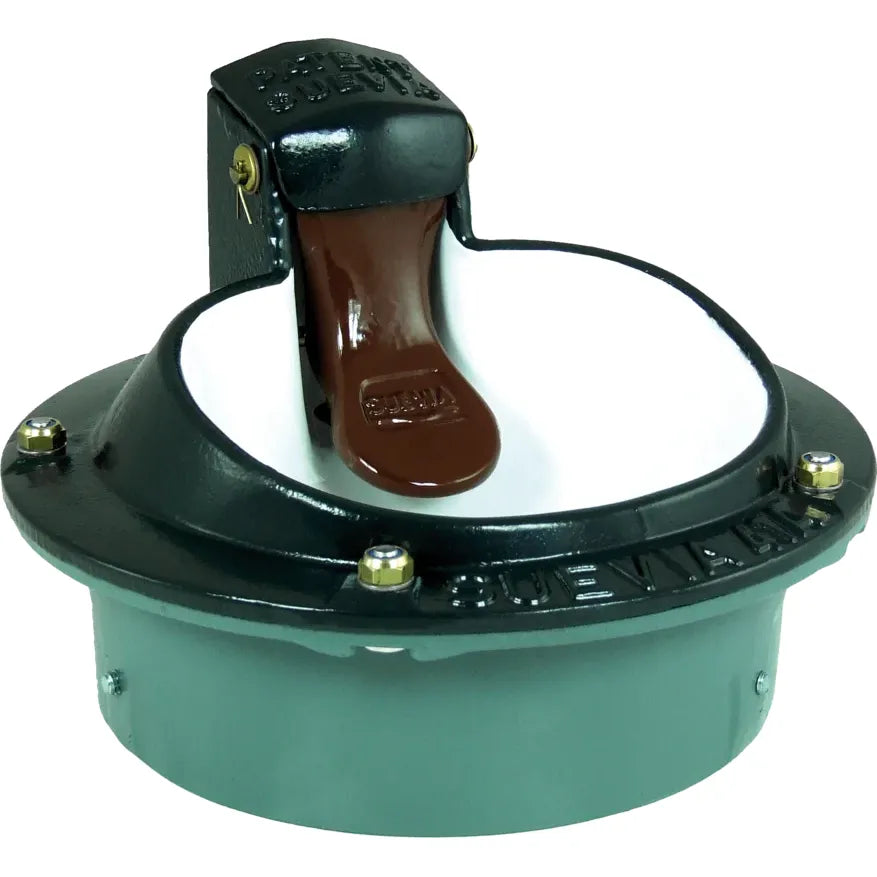

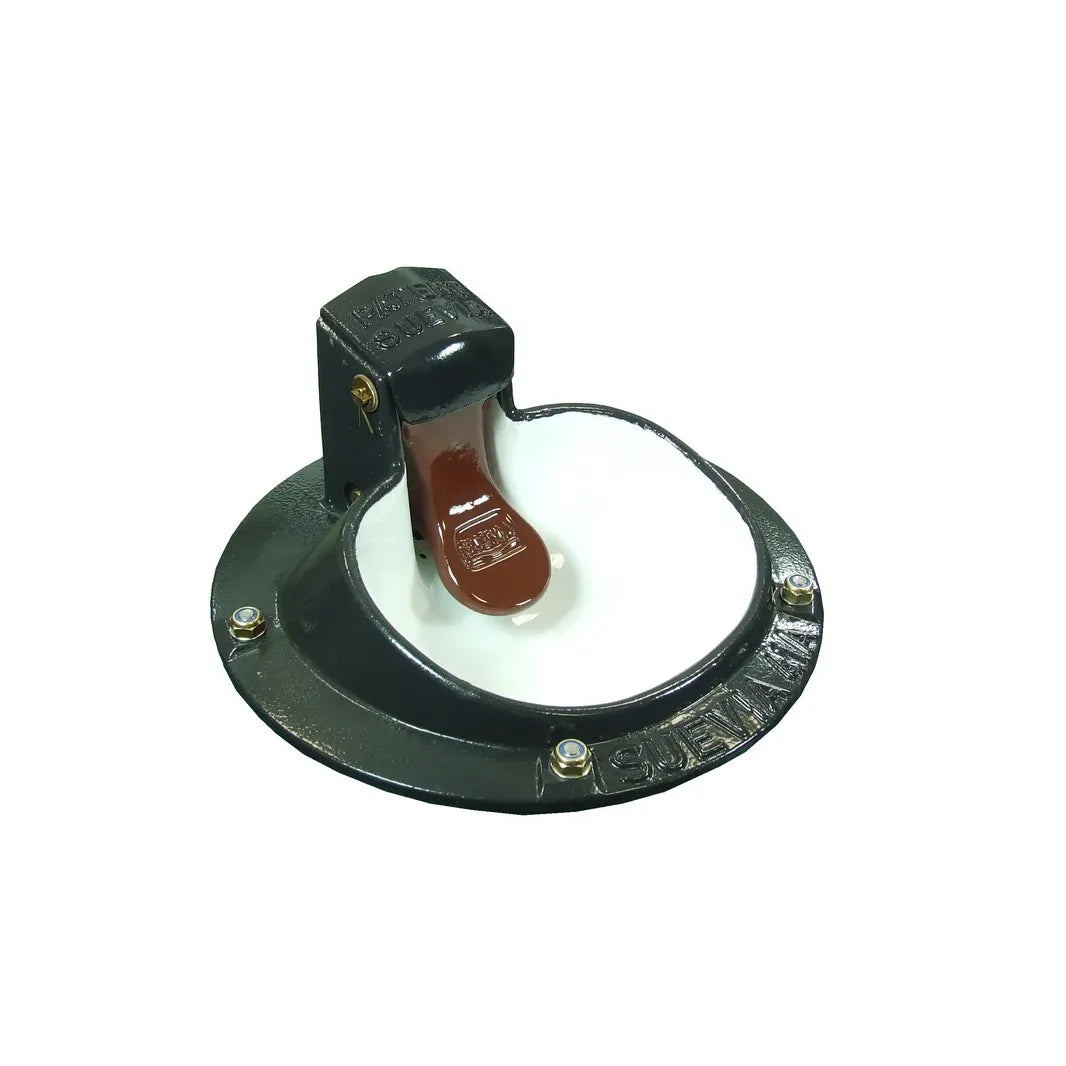

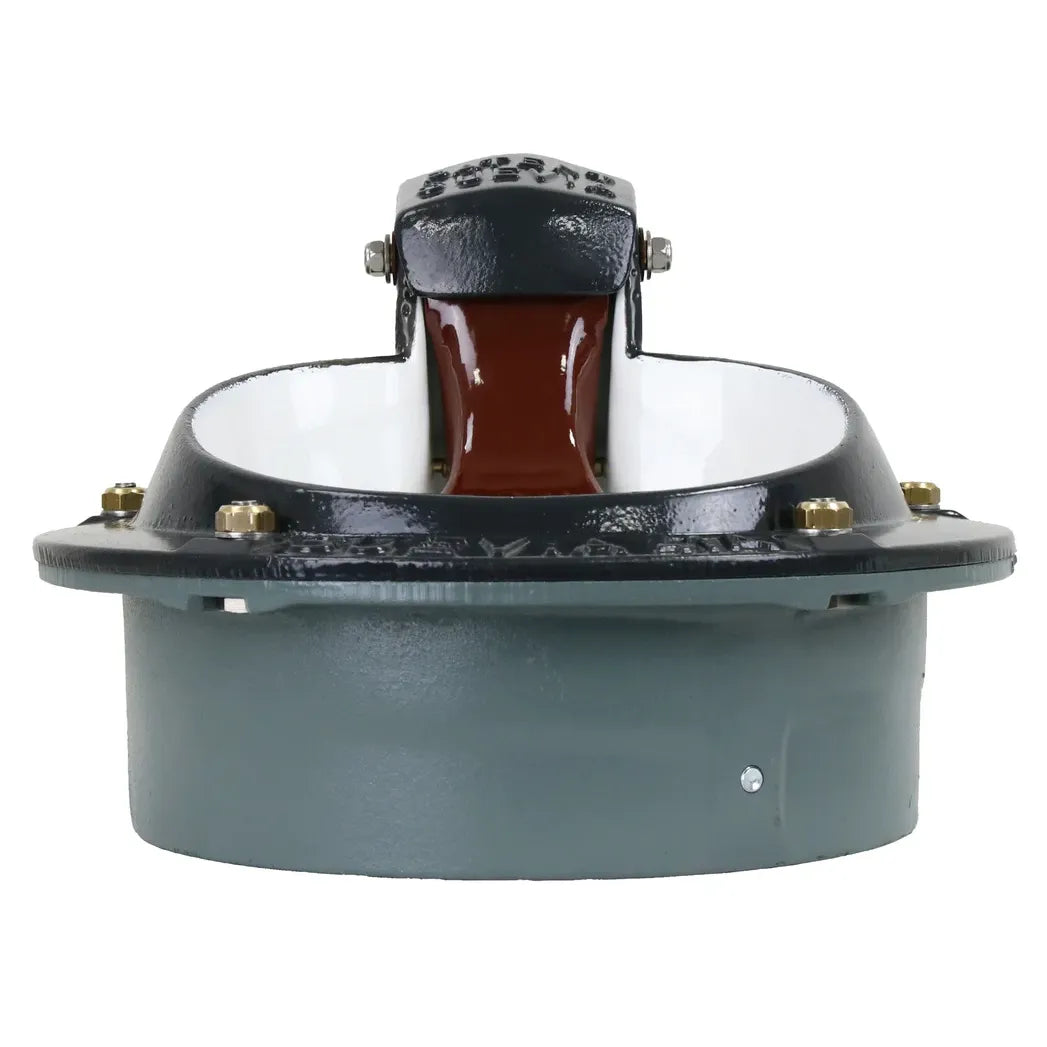

Heatable drinking bowl made of cast iron, white enameled inside
Incl. heating coil 24 V / 80 W, frost-proof down to -25°C
One drinking trough sufficient for 15 - 20 animals
With smooth-running pressure tongue
Non-return valve with a large water supply of up to 15 l/min
Easy adjustment of the water volume to the existing water pressure by replacing the 4 nozzles supplied
Can be used up to max. 6 bar water pressure
The valve closes slowly against the water pressure, which prevents shocks in the water pipe
Reliable function even with ferrous or aggressive water

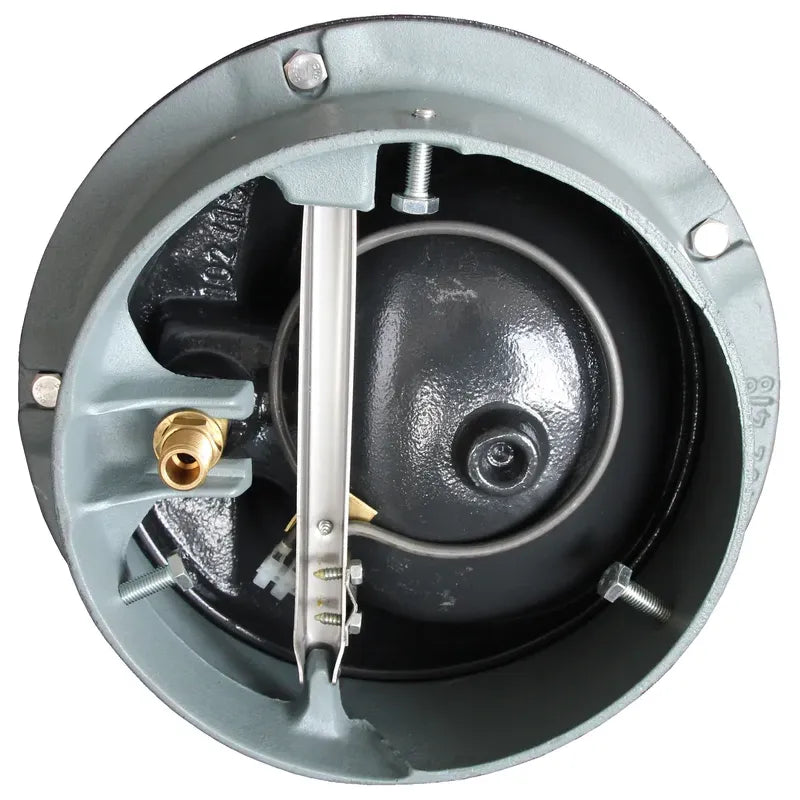

Integrated 80 W or 180 W heating element
1/2" connection, inlet up to 14 l / min at 5 bar

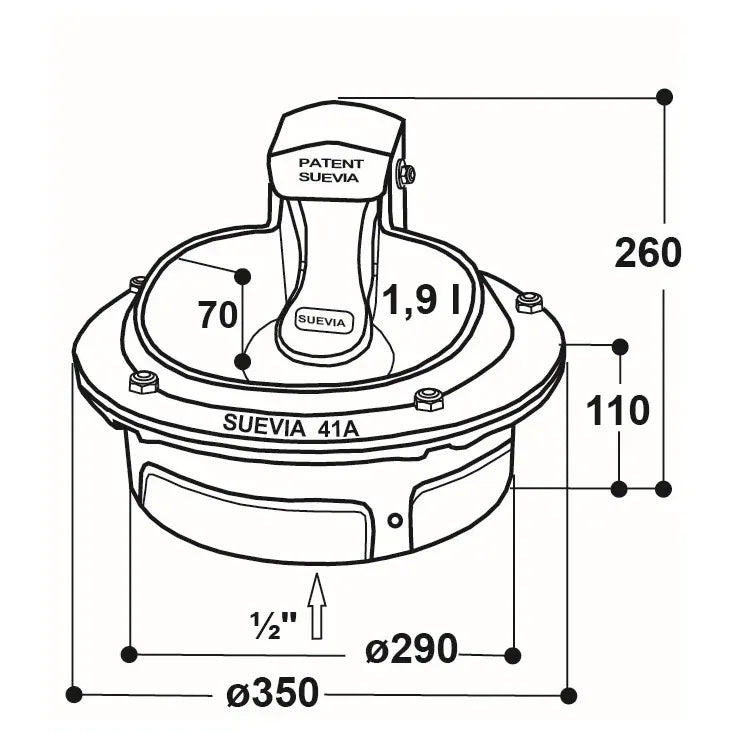

Dimensions: L x W x H: 35x35x26 cm

Recommended for:

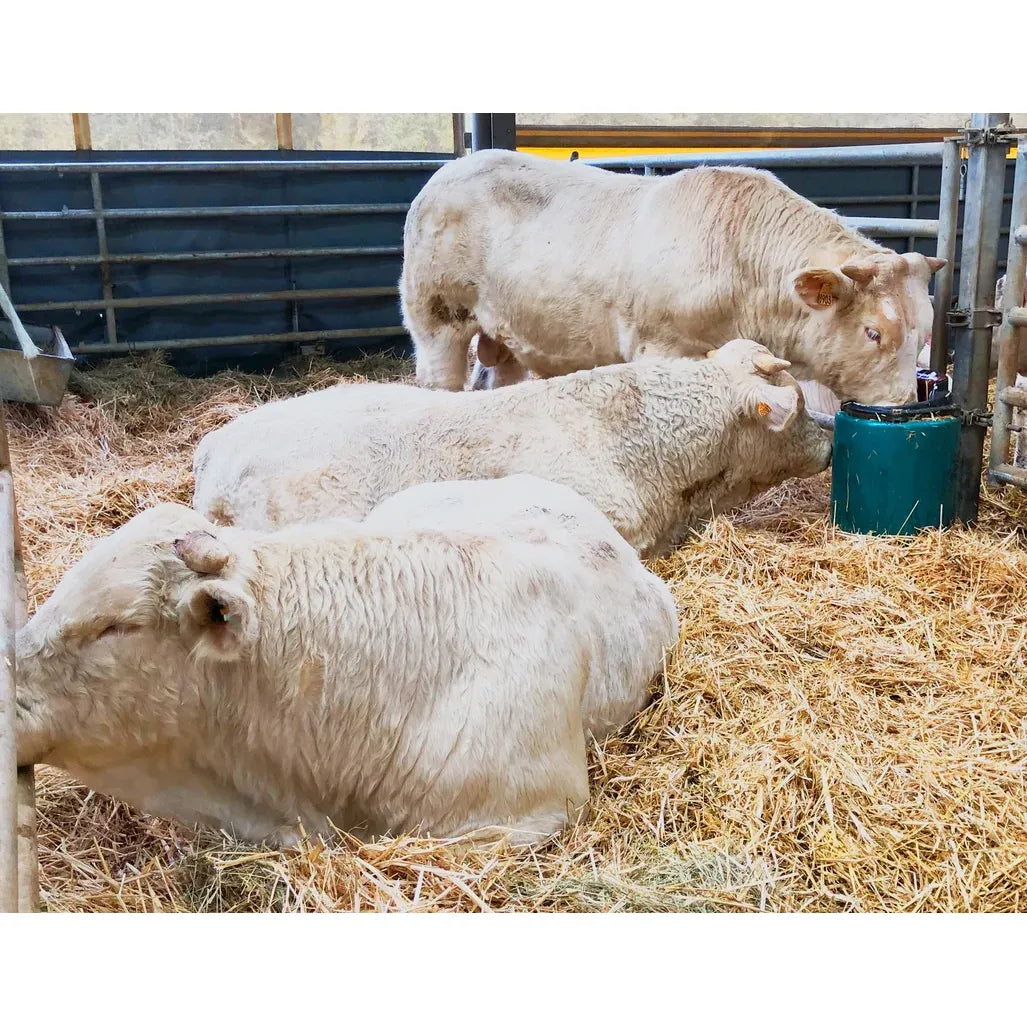

Cattle, cows, bulls, horses, pigs

-Instructions

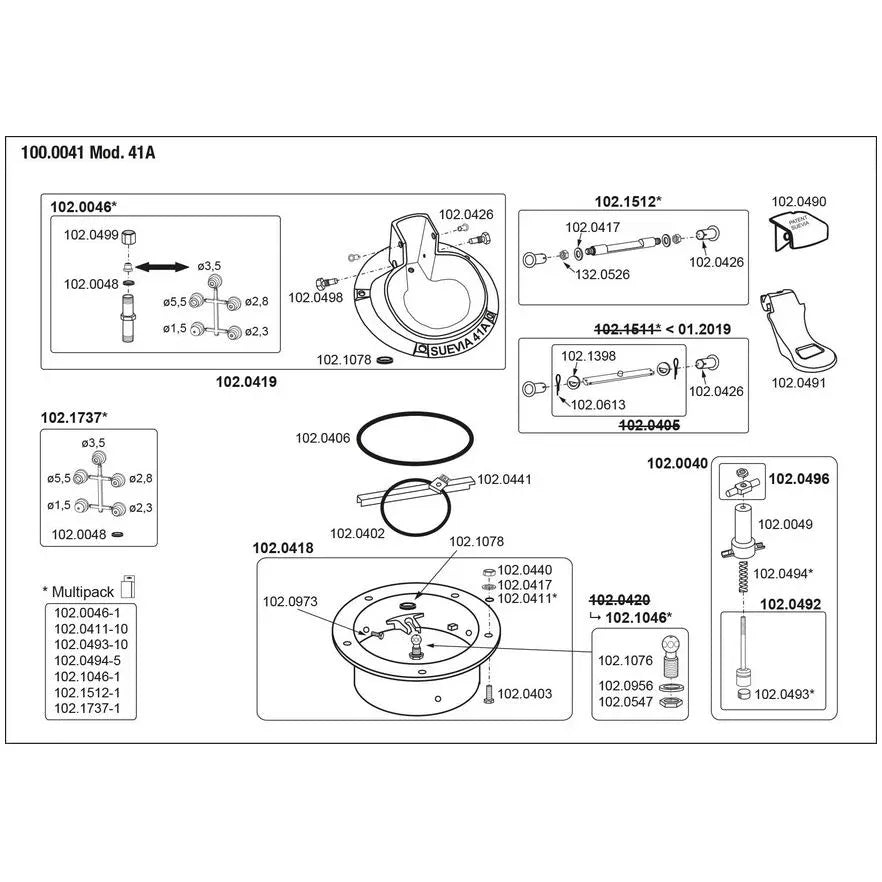

-Replacement parts list 41A

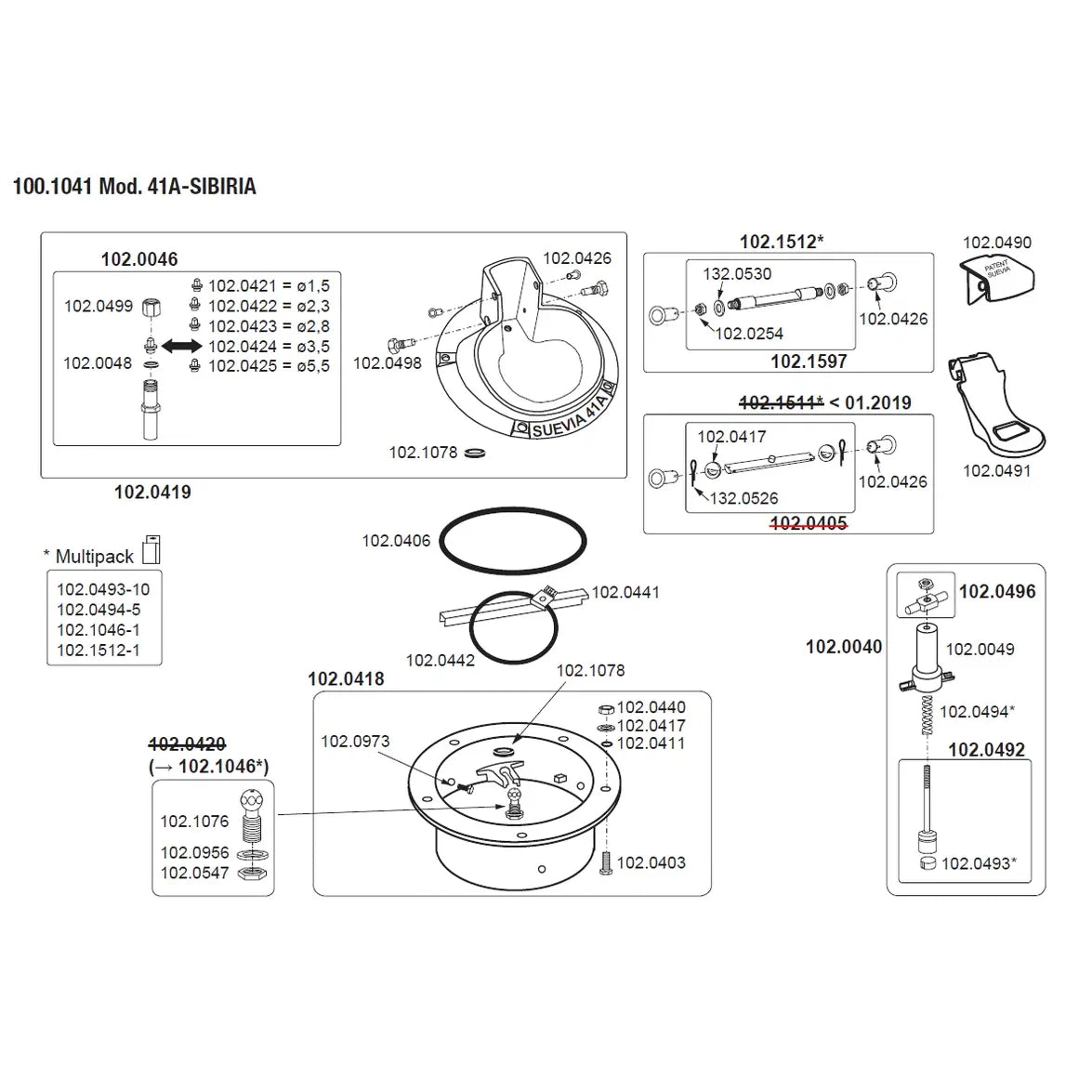

-Spare parts list 41A-Sibiria

- Length 35 cm
- Width 35 cm
- Height 26 cm
- Water pressure 1 to 5 bar
- incl. heating coil 24V / 80W or 24V / 180W
- Inlet up to 14 l / min at 5 bar
- Connection 1/2"
