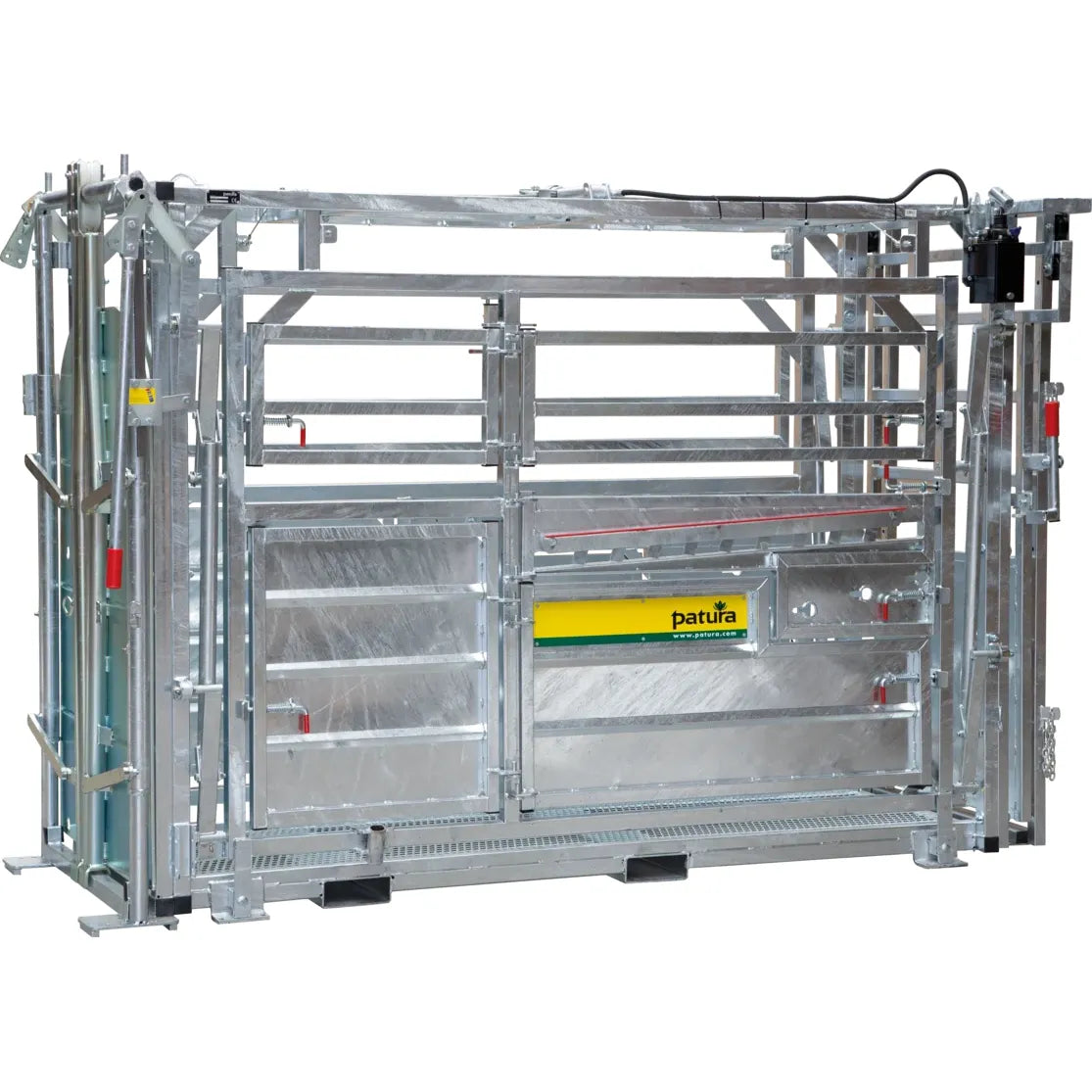

Treatment stand A8000 Caesarean section

- Hot-dip galvanized
- Stepless neck catcher A3500
- 3 side doors on both sides

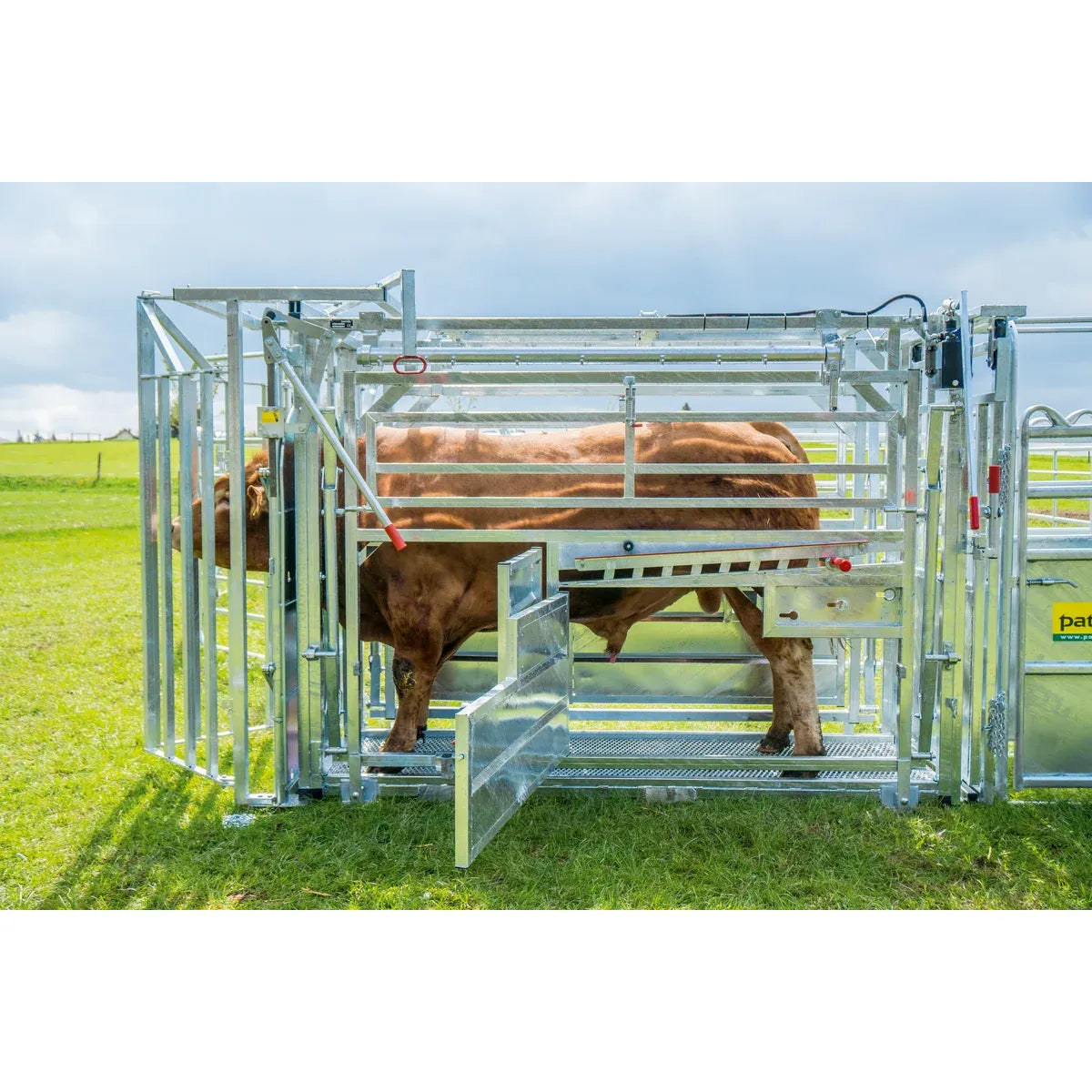

- Left with special door arrangement for caesarean sections and other treatments
- 5 opening side doors on the left
- Right 3 side doors
- Optimum access to the belly area of the animal

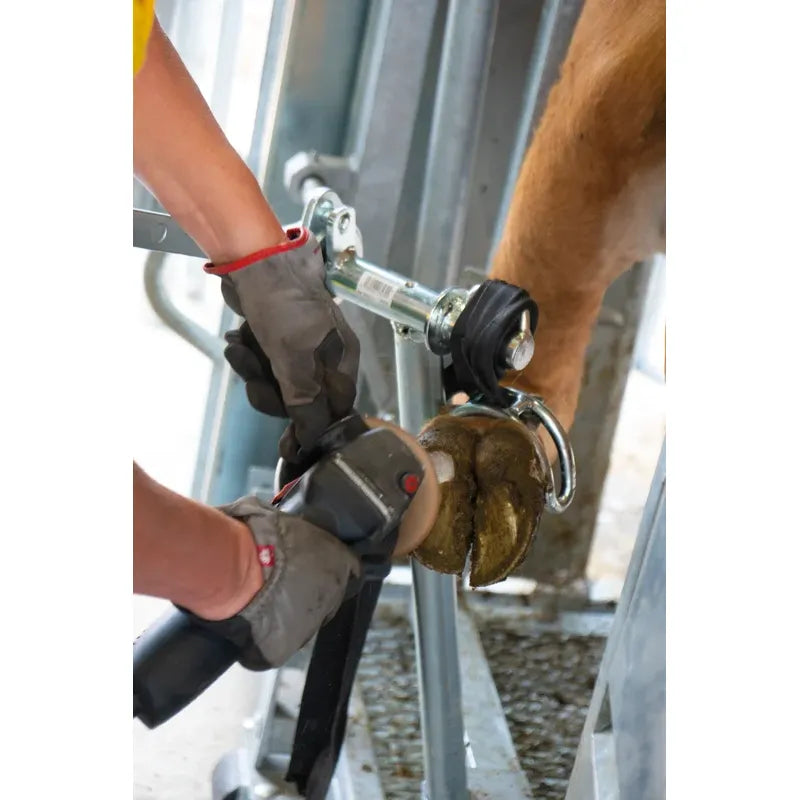

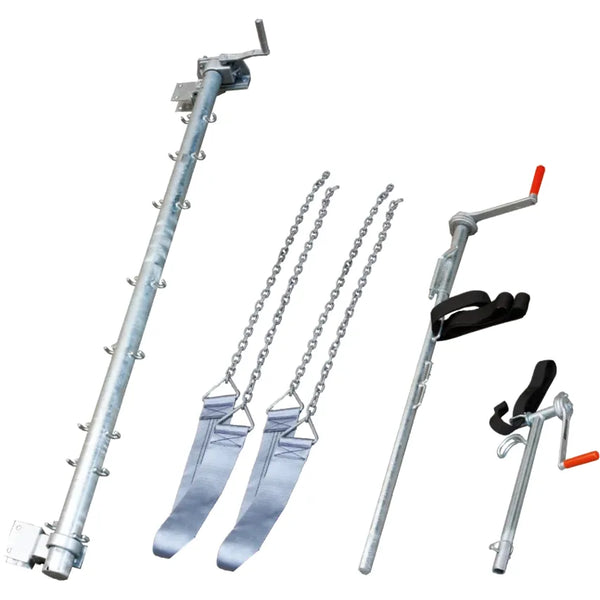

- Hoof care still possible
- Double-sided, parallel side narrowing
- Please order catcher separately
- Rear sliding door

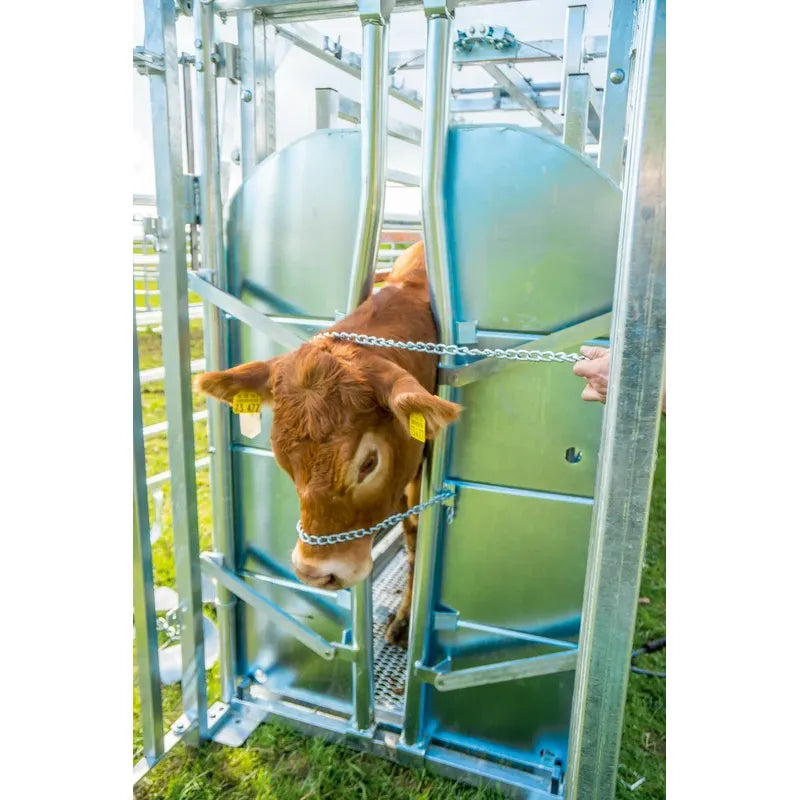

- Including head fixing chain
- Sturdy tubular steel frame 50 x 50 mm, partly double

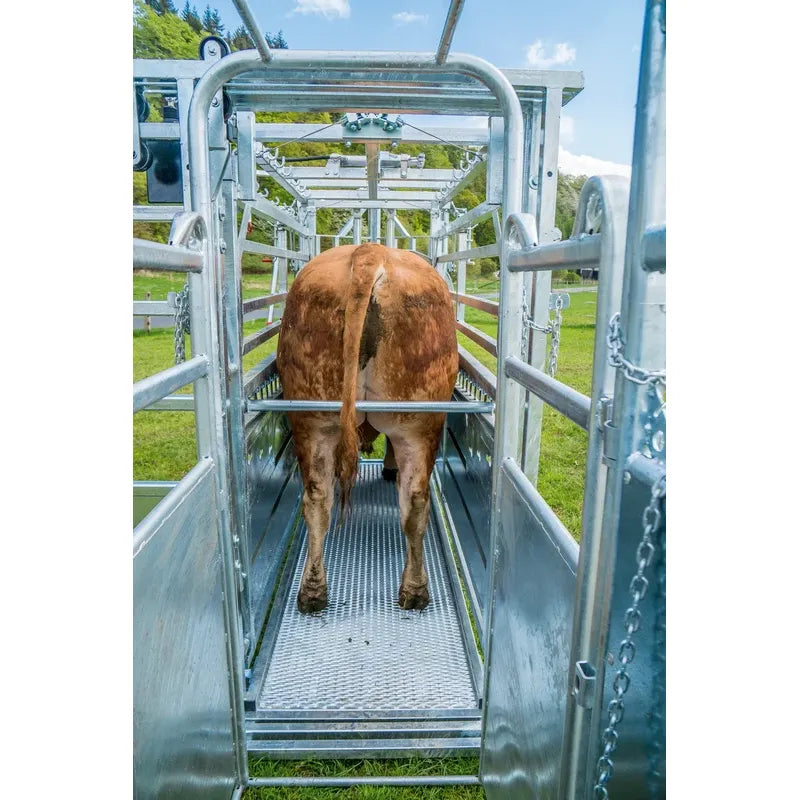

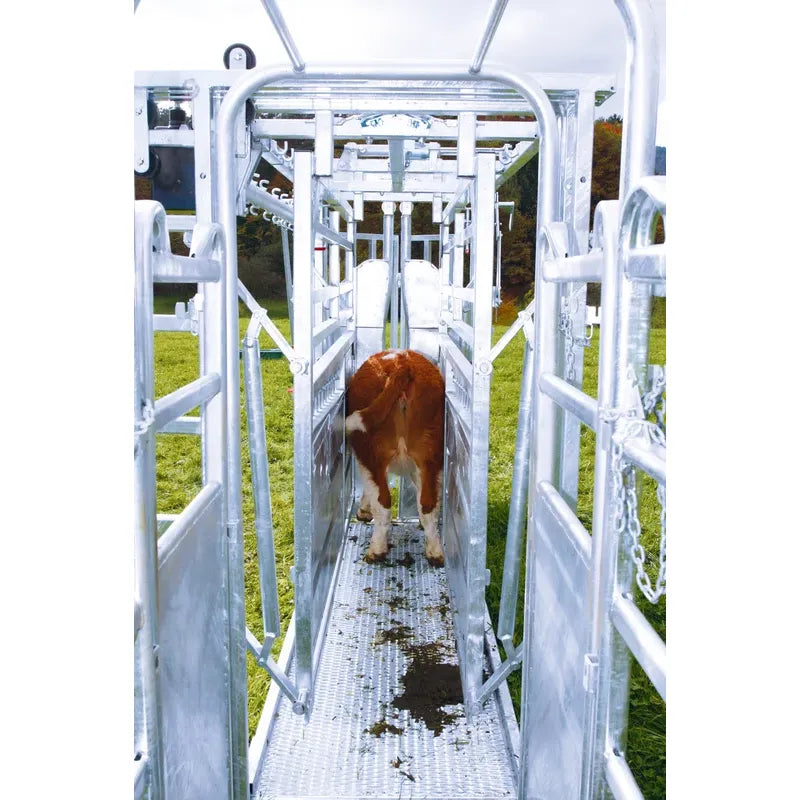

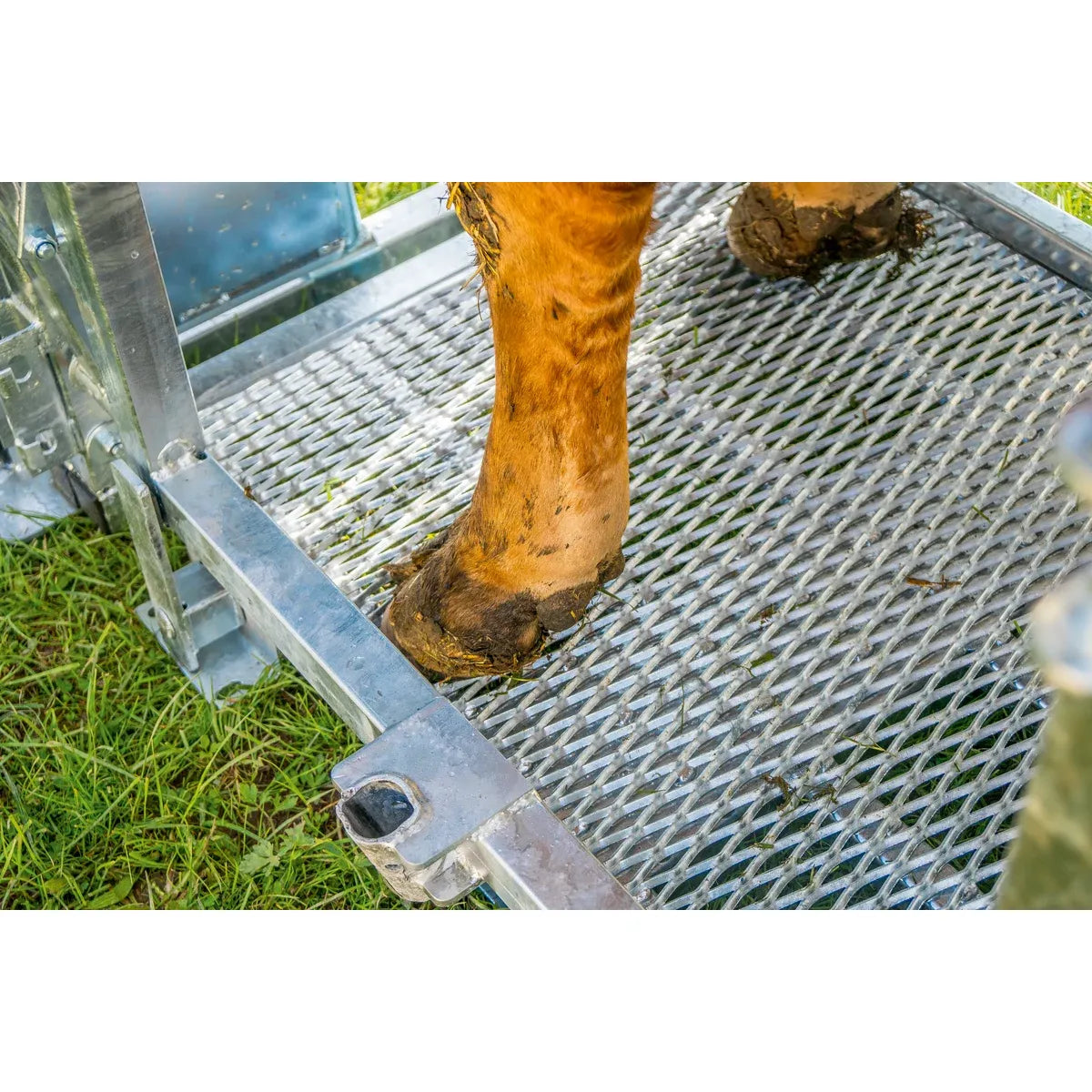

- Non-slip base made of expanded metal

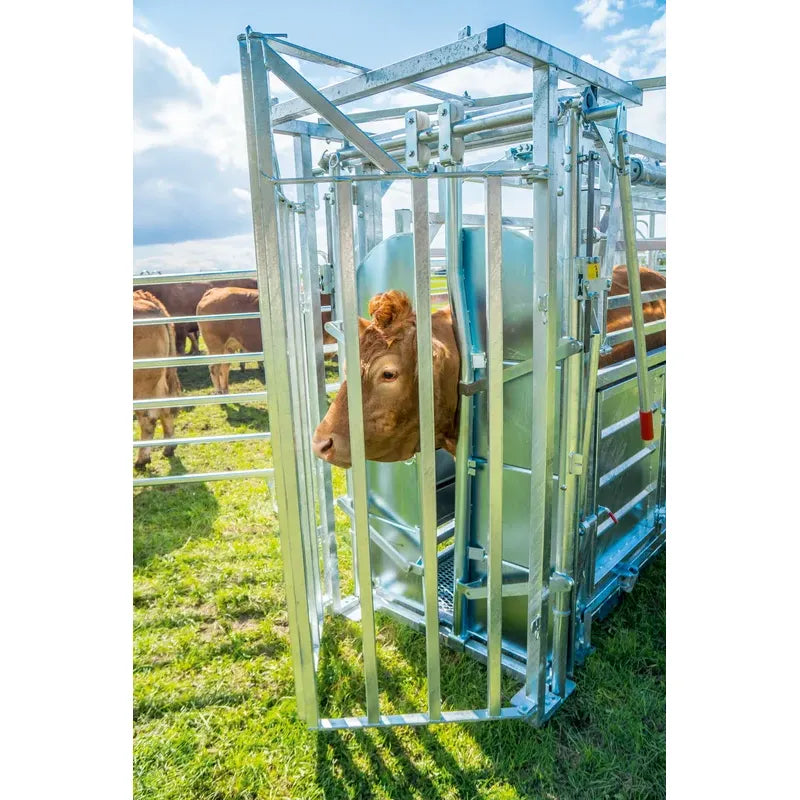

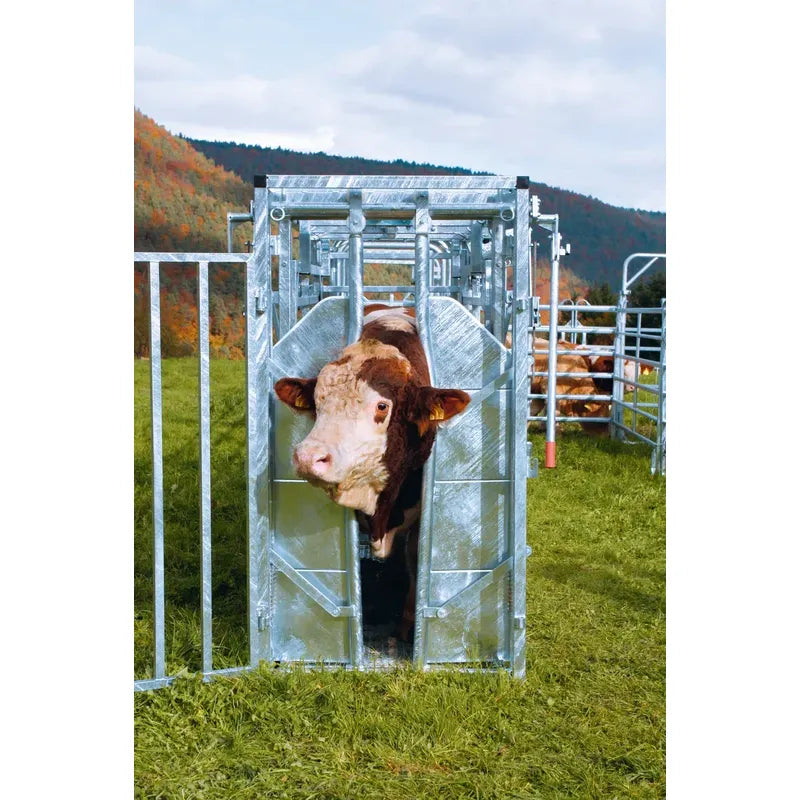

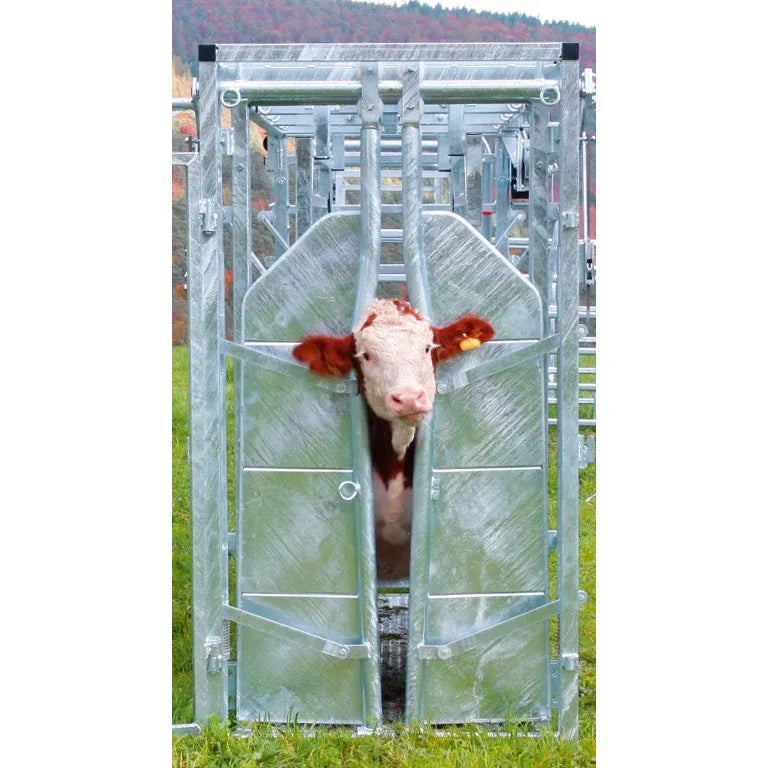

- Stepless neck catcher A3500 (12 - 85 cm) with automatic brake
- Including head fixing chain
- Automatic reverse lock with emergency release
- Double-sided, parallel side narrowing (85 - 40 cm) via
hydraulic hand pump operation
- Smooth-running, self-locking rear sliding door
- Integrated rectangular tubes to accommodate a pallet fork for wheel loaders
tractor or forklift
- Integrated mounting plates for HD5T weighing beams

- Internal dimensions:
Length 2.75 m
Width 0.85 m
Height 1.85 m

- External dimensions:
Length 3.10 m
Width 1.45 m
Height 2.20 m

- Conversion from left-hand to right-hand operation possible
- Weight: 815 kg
