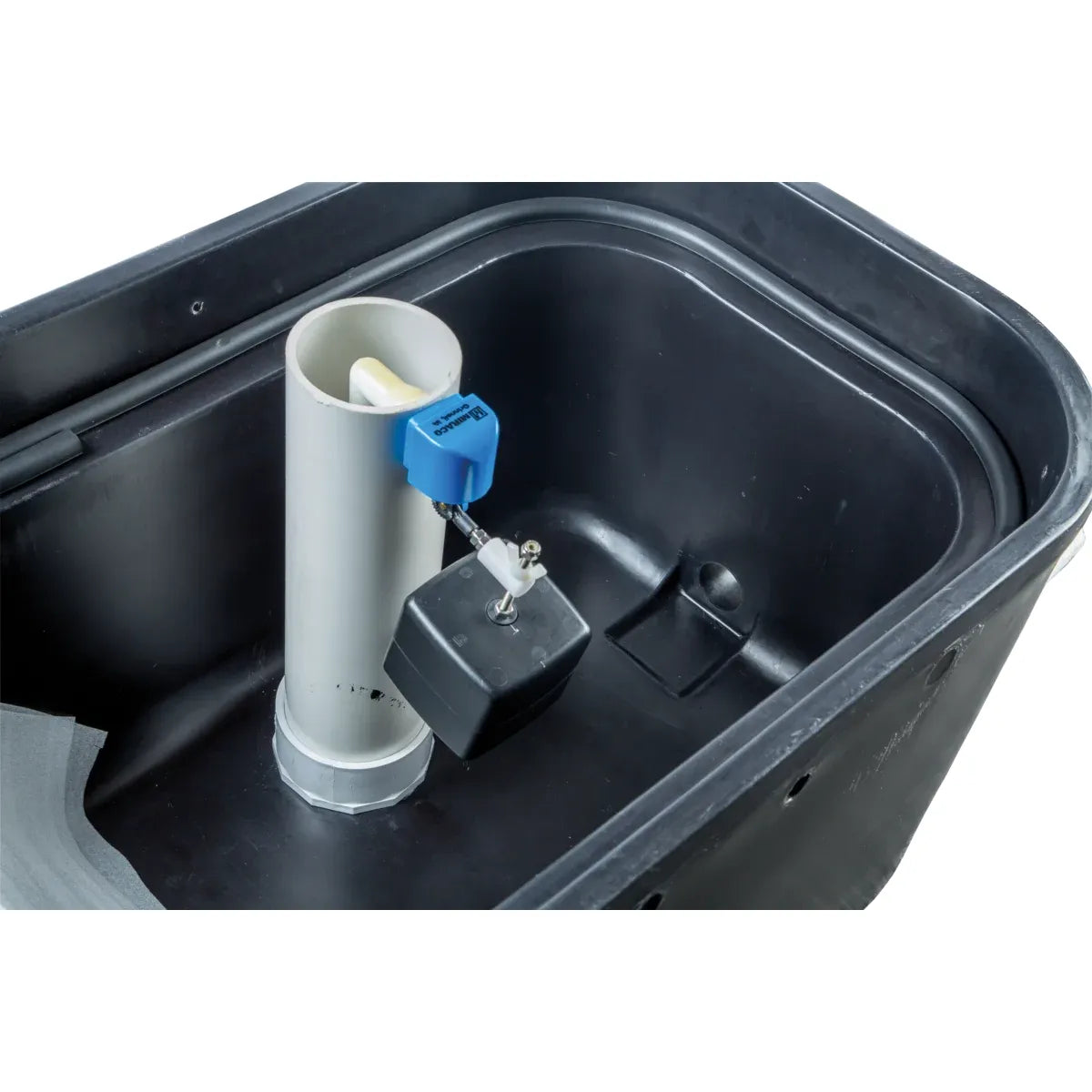

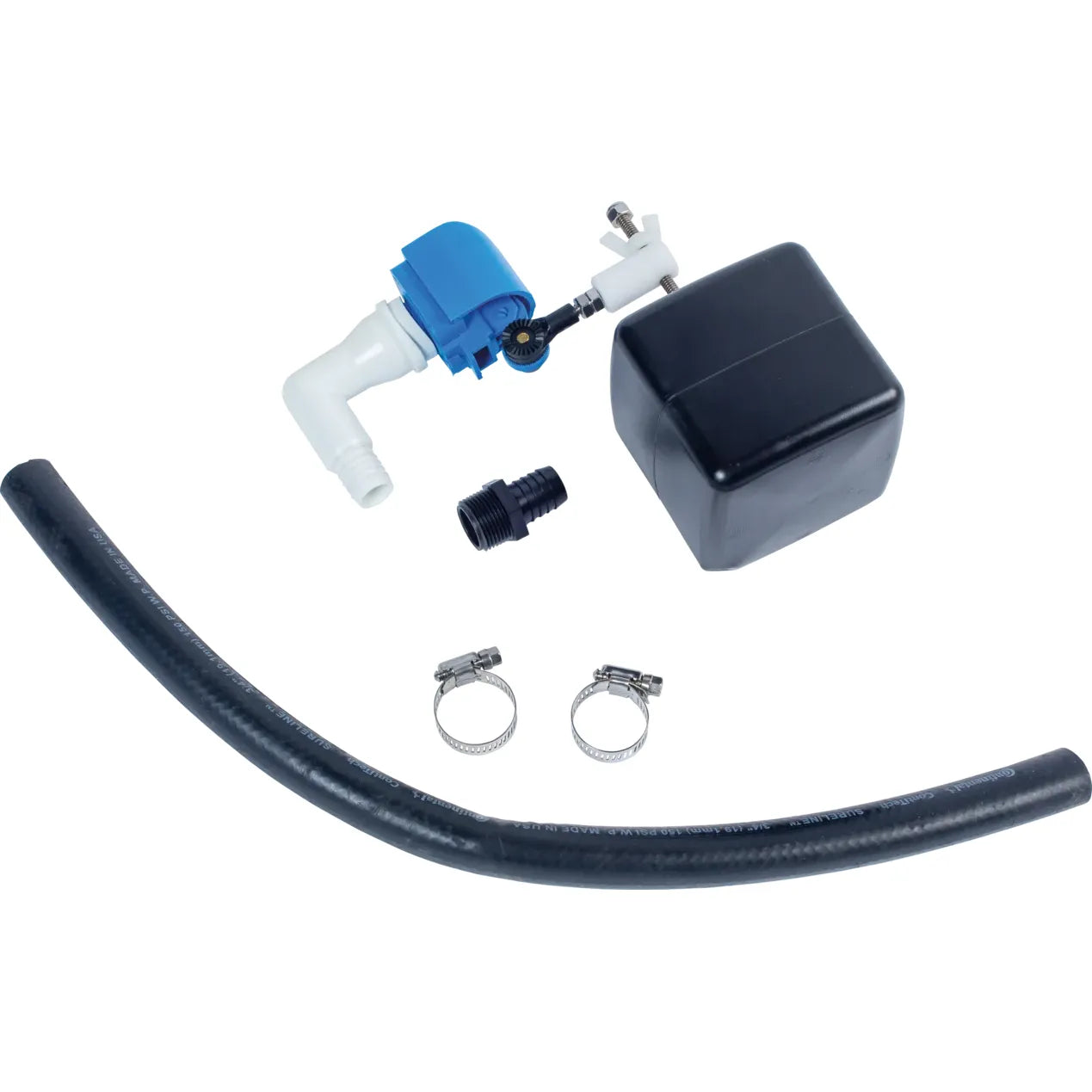

The water comes out of the ground at a temperature of approx. 10° C and fills the drinking container until the balls close the drinking holes. When animals drink, the used water is refilled via a float valve. The energy of the overflowing water keeps it warm when it is cold and cool when it is hot. Thanks to the special ball closure system, fresh, clean and algae-free water is always provided at both -30° C and +30° C without the need for additional energy.

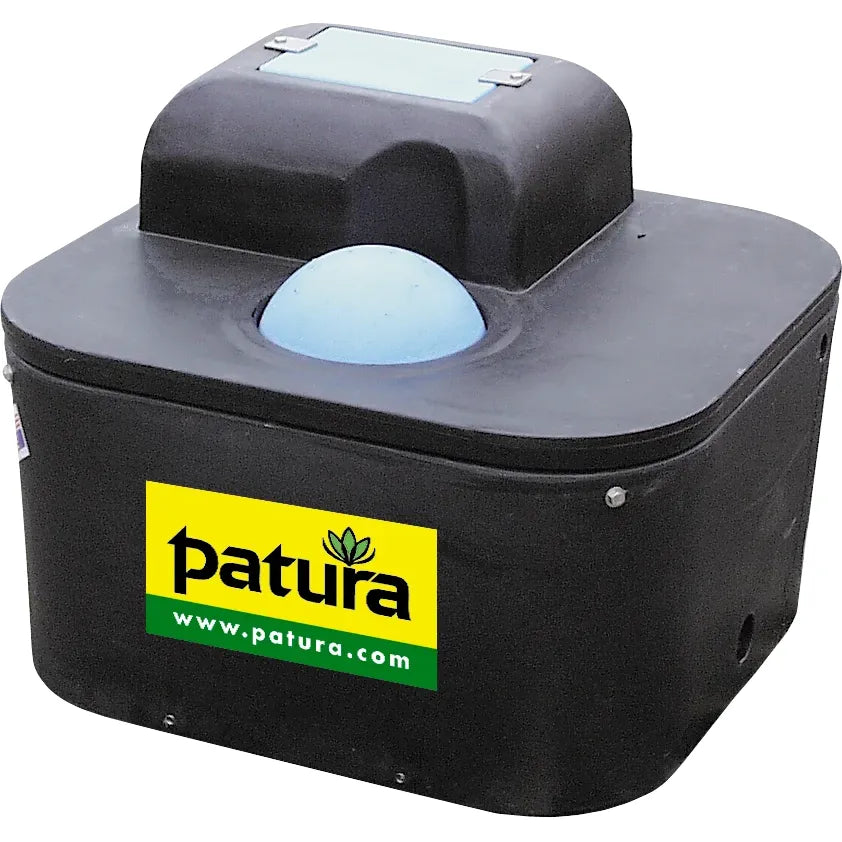

- Farmdrinker 1 Ball
- Capacity 57 l
- 15 - 25 animals
- Inlet 40 l / min at 5 bar
- Mass L x W x H: 71x66x55 cm
- Frost-proof up to: - 40 °C. All temperature specifications regarding frost resistance refer to use in stables without direct wind and weather influence.
- Without power connection
- The ball rolls away when drinking
- The supply line must run at a frost-free depth
- Water pressure: 1 to 5 bar
- A minimum of 5 animals guarantees frost-proof operation down to -15° C; with 15 animals frost-proof down to -40° C
- Ready for connection to 3/4" water pipe (external thread)
- The ball drinker should be mounted, slightly raised, on a concrete slab approx. 15 cm thick, which must be approx. 30 cm larger on each side than the drinker itself

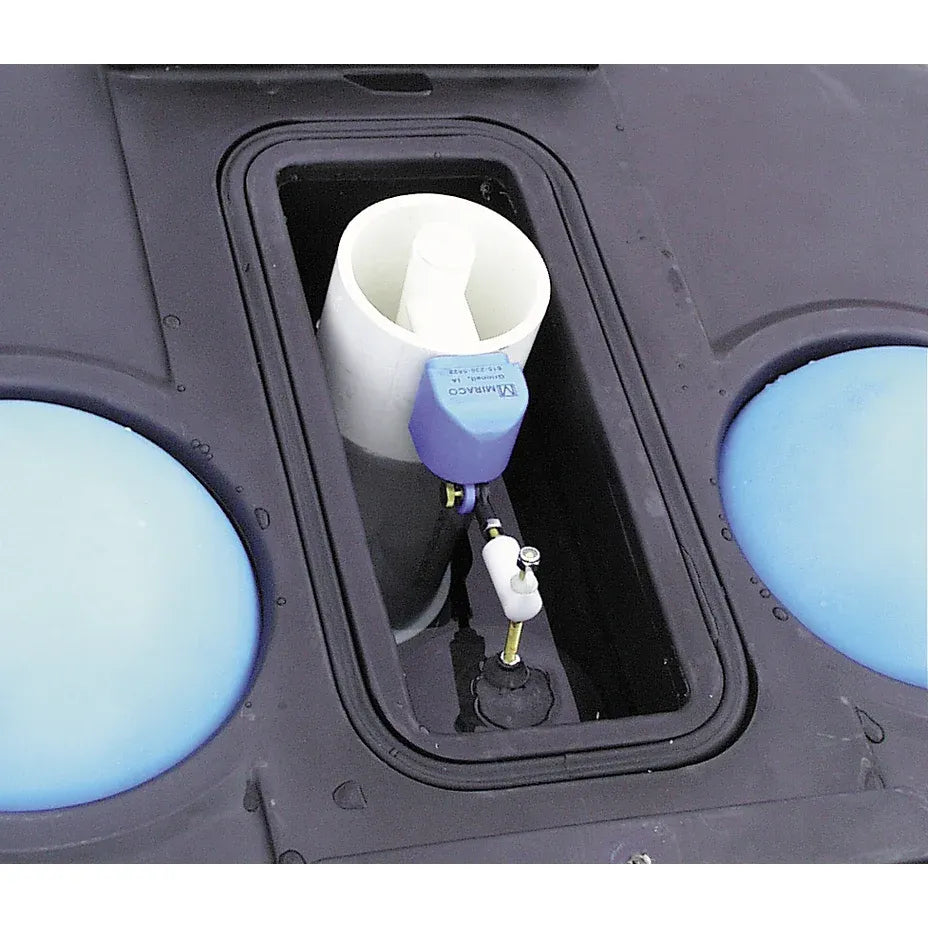

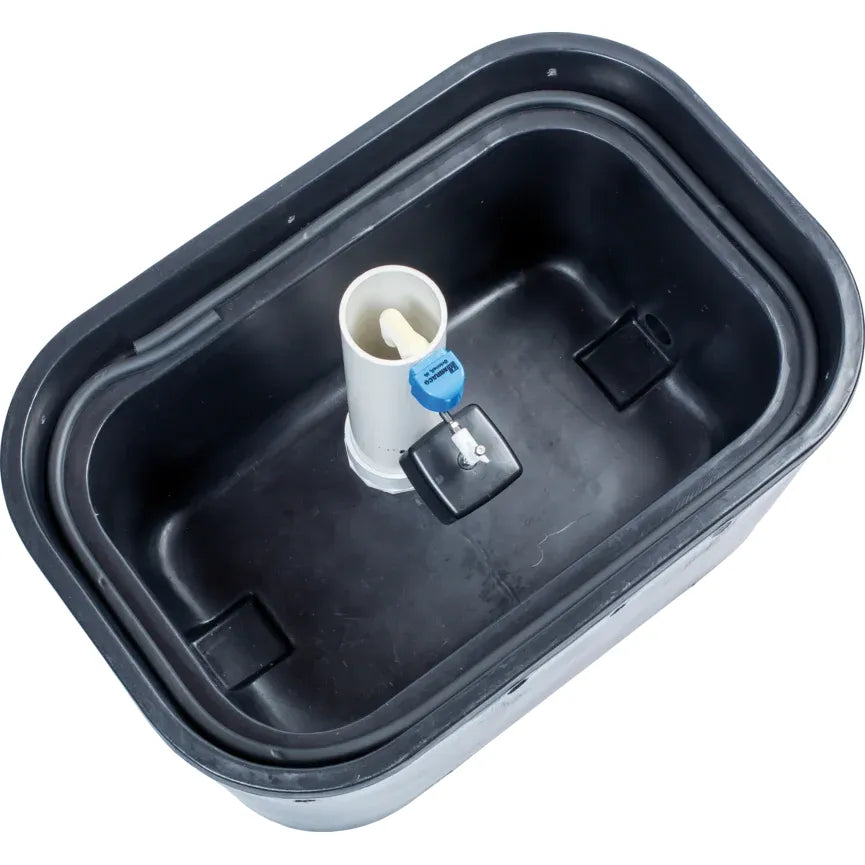

- Large drainage openings allow the drinker to be cleaned regularly, quickly and completely
- Without electricity, without gas
-
Note: Very robust, particularly suitable for bulls and suckler cows.
- Instruction manual

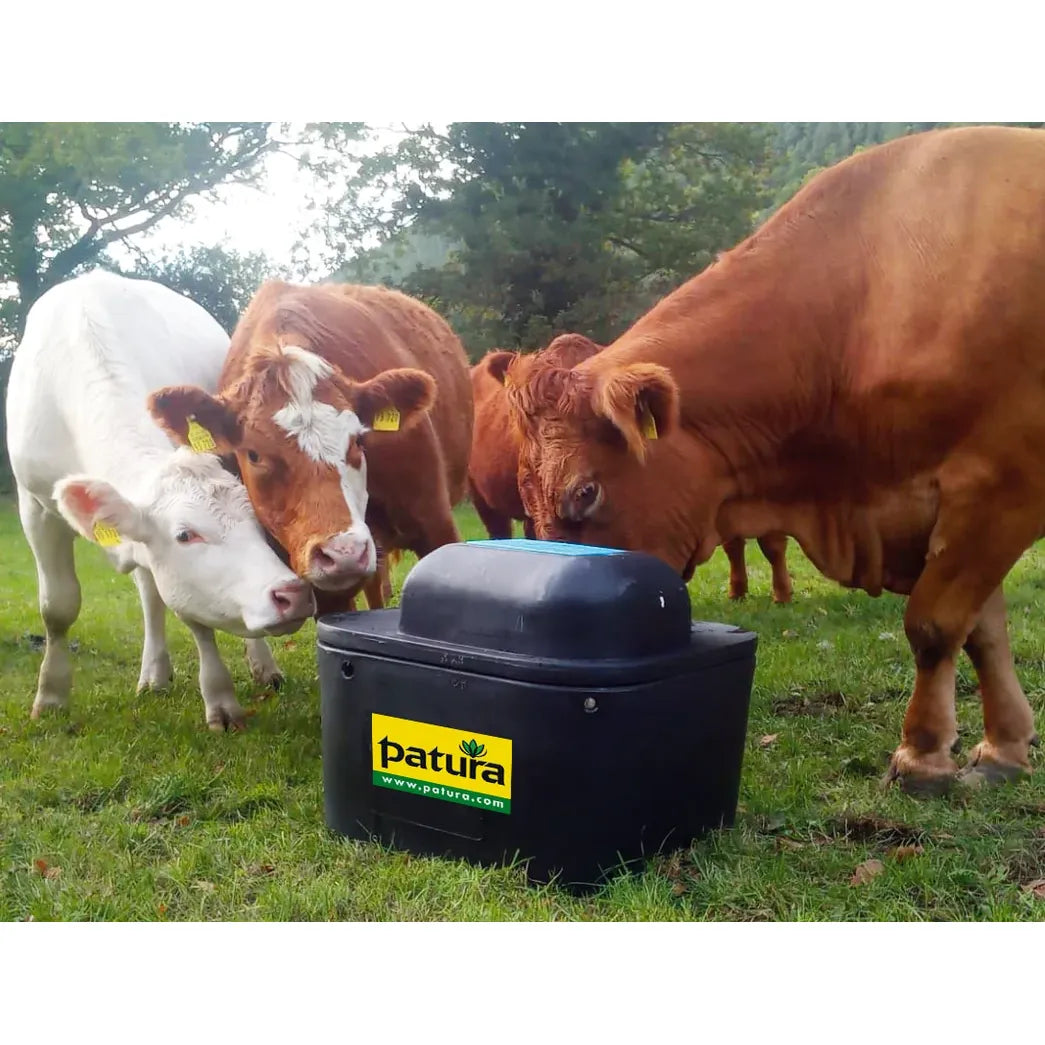

Suitable for: Cows, cattle, bulls and horses
