Spare parts for Farmdrinker

Article information

Ref.

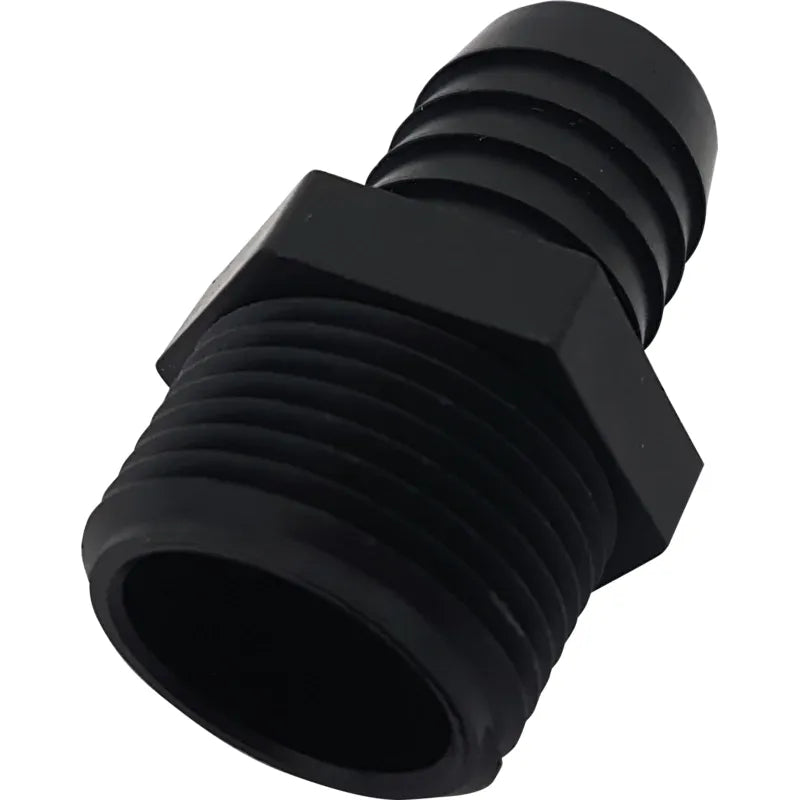

Hose connection piece for Farm-
330396 drinker riser, PVC
26 mm AG to 3/4" hose connector

Connecting piece Farmdrinker valve
330342 to float ball, made of plastic,
with tooth profile

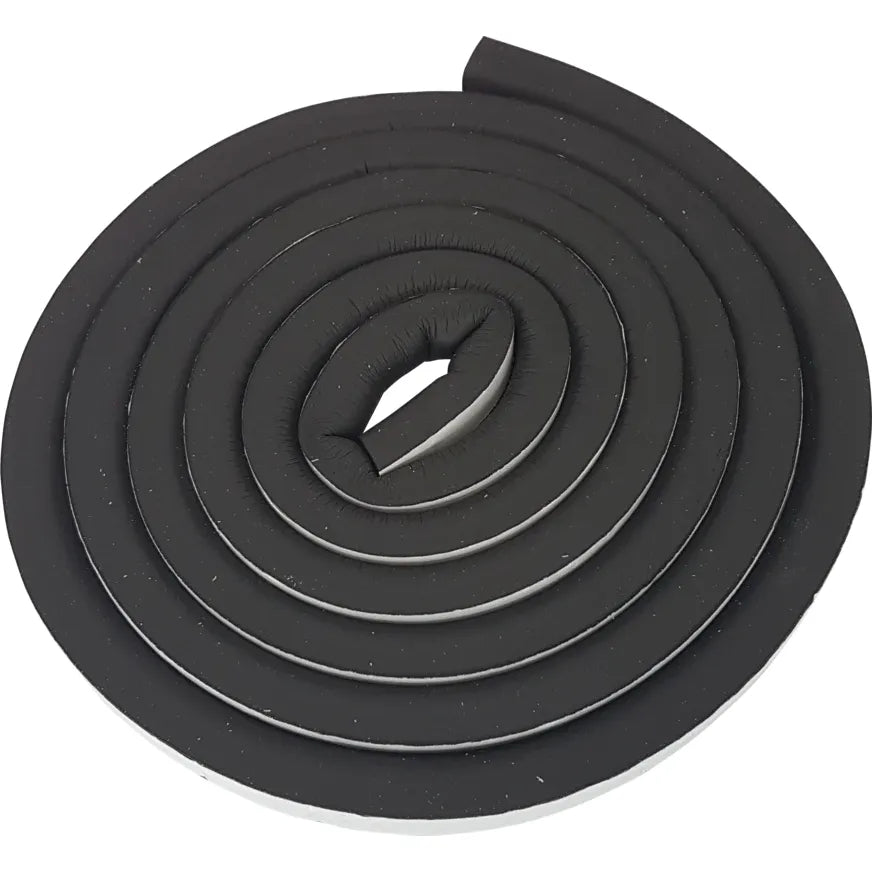

Bottom seal for 1-ball
330420 Farmdrinker
Length 2.50m, 13x13mm, self-adhesive

Sealing plug
330674 for T-piece
suitable for Farmdrinker

Service cover for
330604 1-ball Farmdrinker
Plastic, color blue

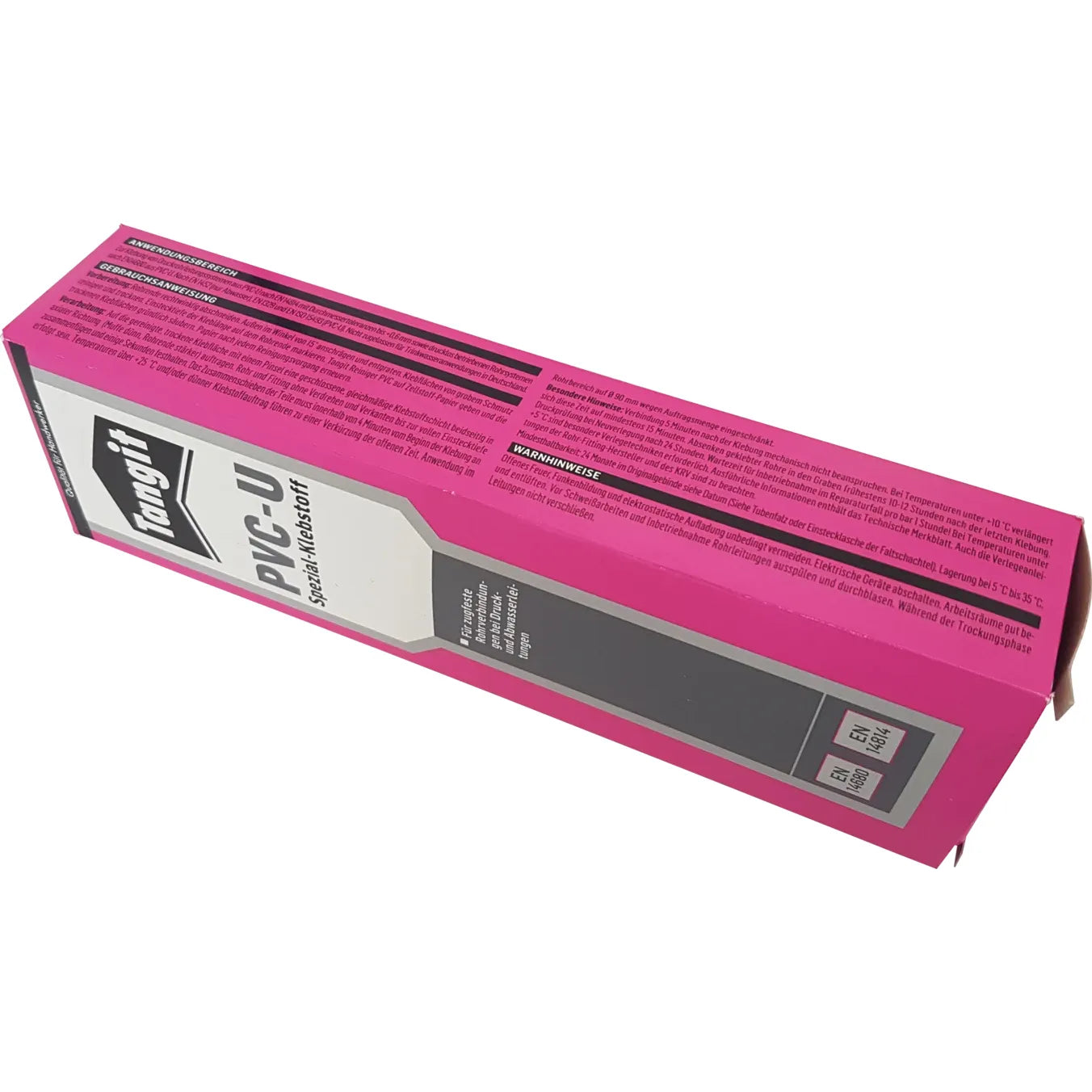

Special adhesive
330900 for
Farmdrinker assembly

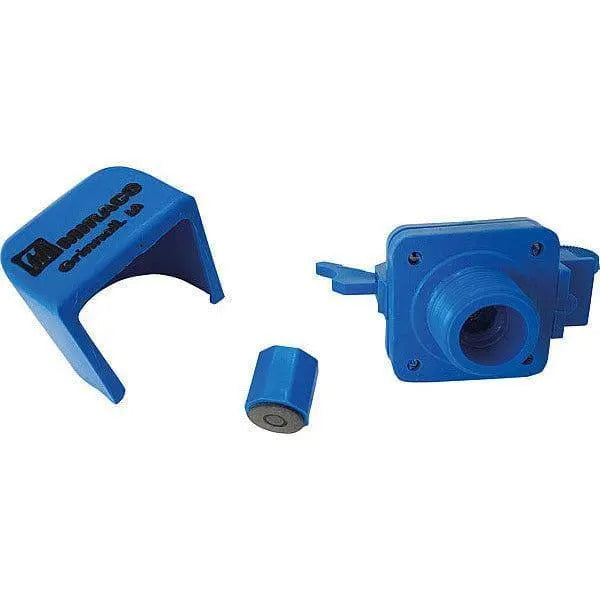

Replacement valve without ball and arm for
330336 Farmdrinker 1,2 and 4 ball, low pressure
from 0.35 - 2.75 bar

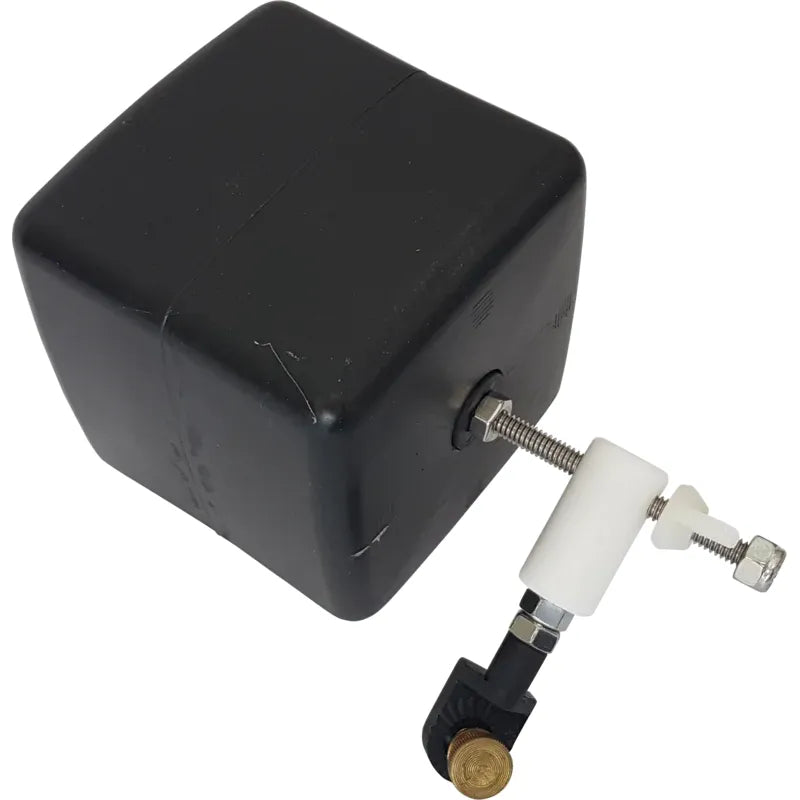

Float housing with arm
330451 compl. for
1 ball Farmdrinker

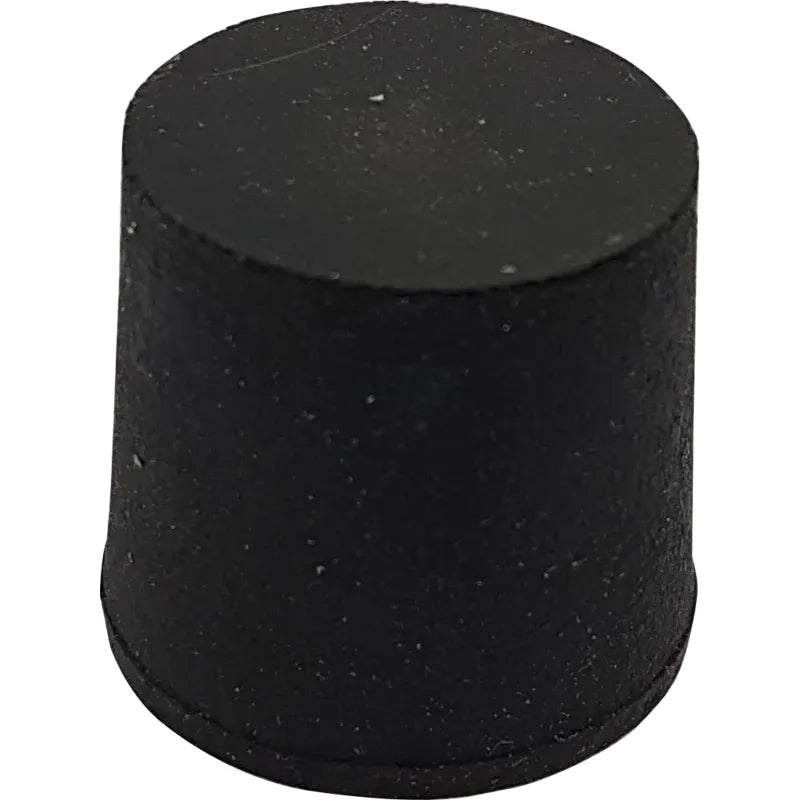

Rubber stopper for
330574 Overflow opening
Farmdrinker

T-piece for float valve
330673 for 1, 2 and 4 ball
Farmdrinker

Replacement valve without ball and arm
330521 for Farmdrinker 1, 2 and 4 ball, high pressure
from 2.75 - 5.50 bar

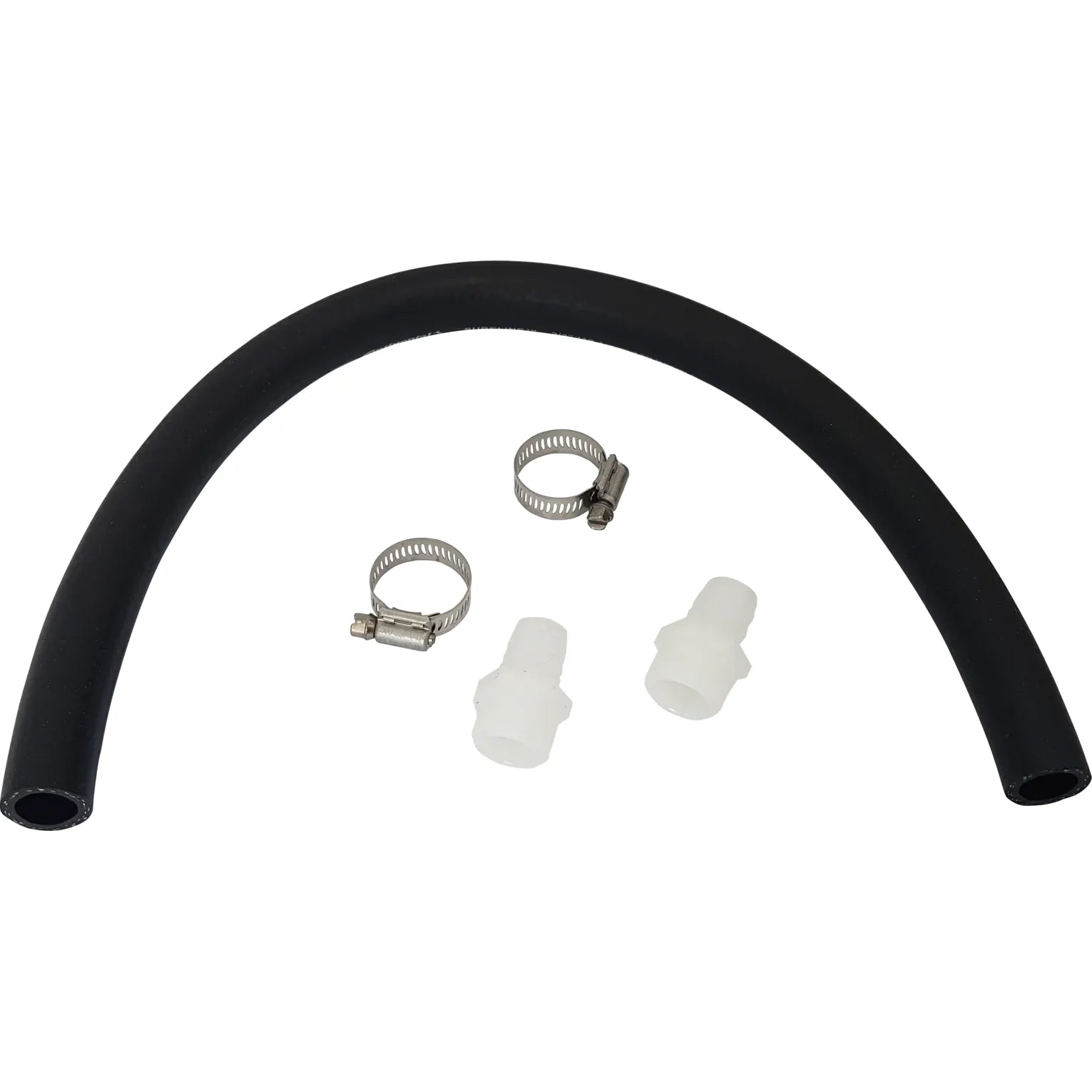

Connection hose 3/4" x 600mm, 19mm
330156 incl. 2 connection pieces and 2 hose
clamps for Farmdrinker

Riser pipe 4"
330658 for
Farmdrinker

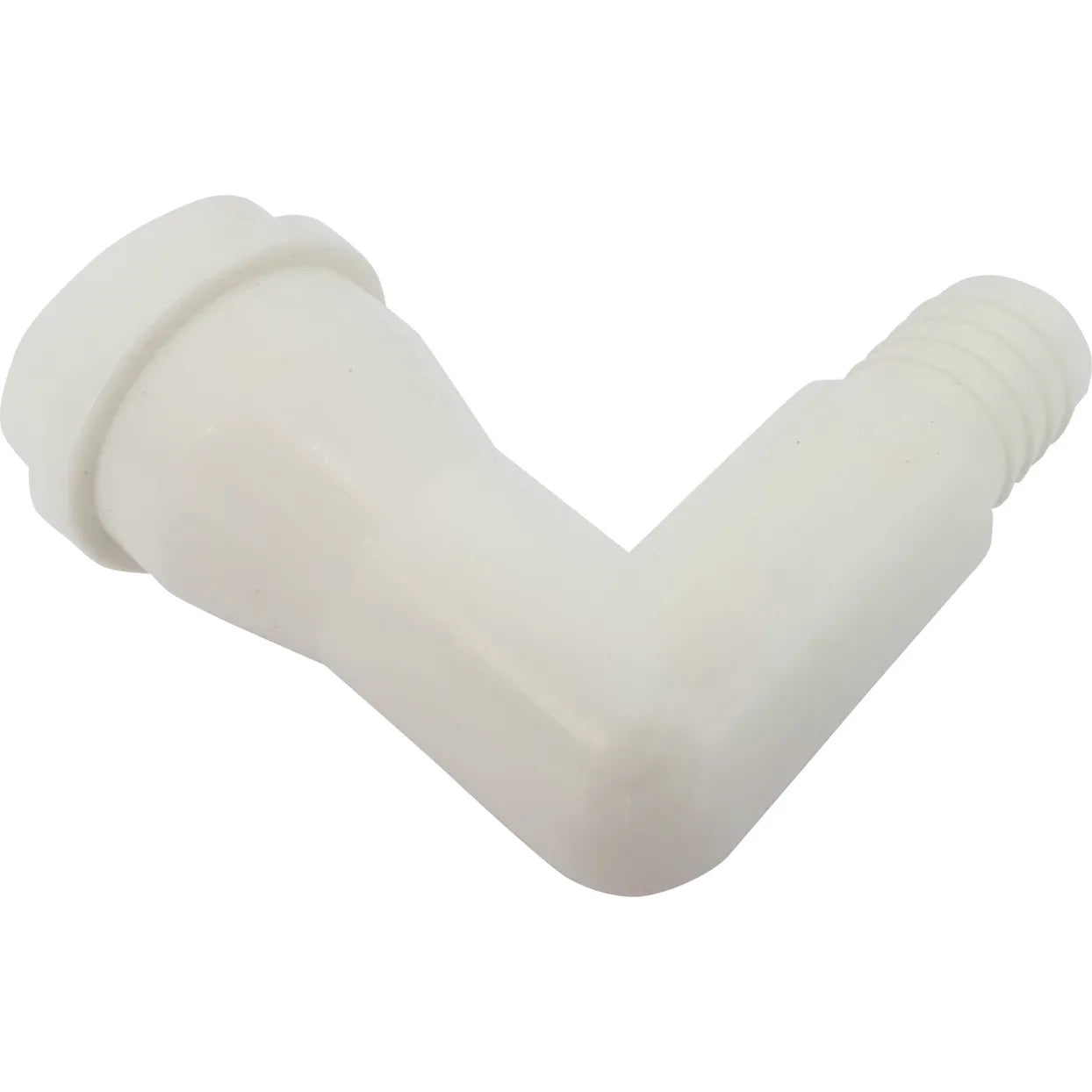

Elbow connector PVC suitable
330672 for Farmdrinker valve
Female thread on 3/4" hose nozzle

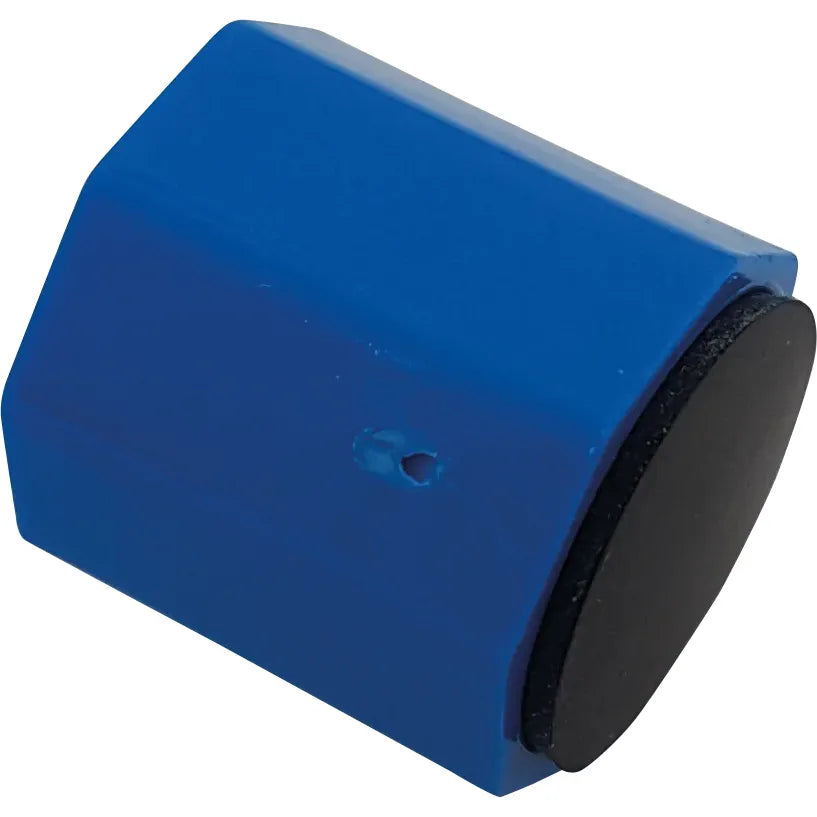

6-KT flask for
330513 Farmdrinker valve
1, 2 and 4 ball

Drinking hole ball for
330449 1-ball Farmdrinker
24 cm diameter

Lid seal for 1-ball
330433 Farmdrinker
Length 2.50 m, 15x15 mm, self-adhesive

Plastic screw connection
330356 3/4" I/A
for riser pipe/farm drinker

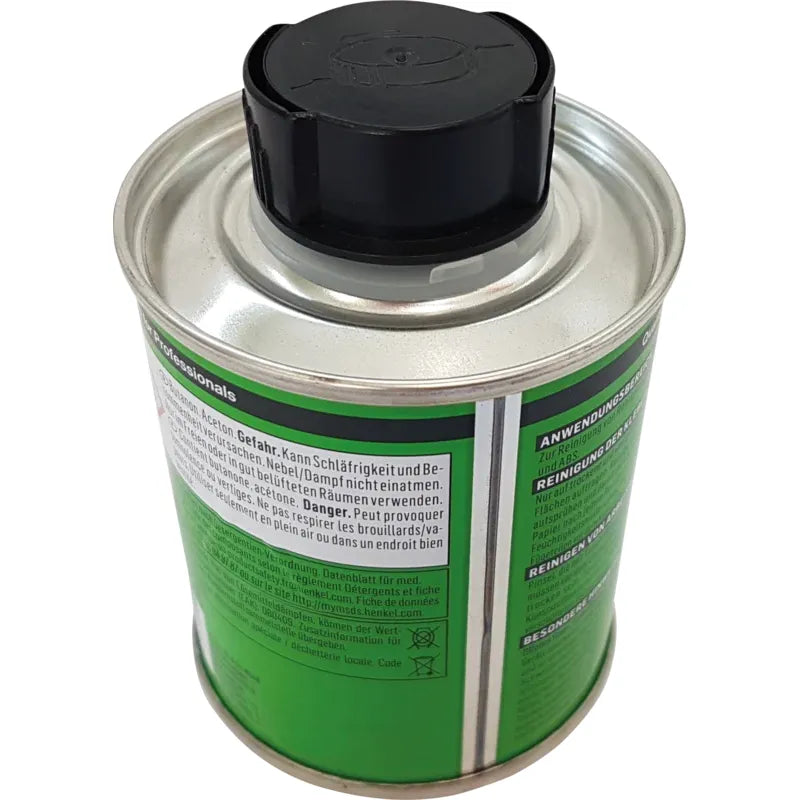

Special cleaner
330901 for
Farmdrinker assembly

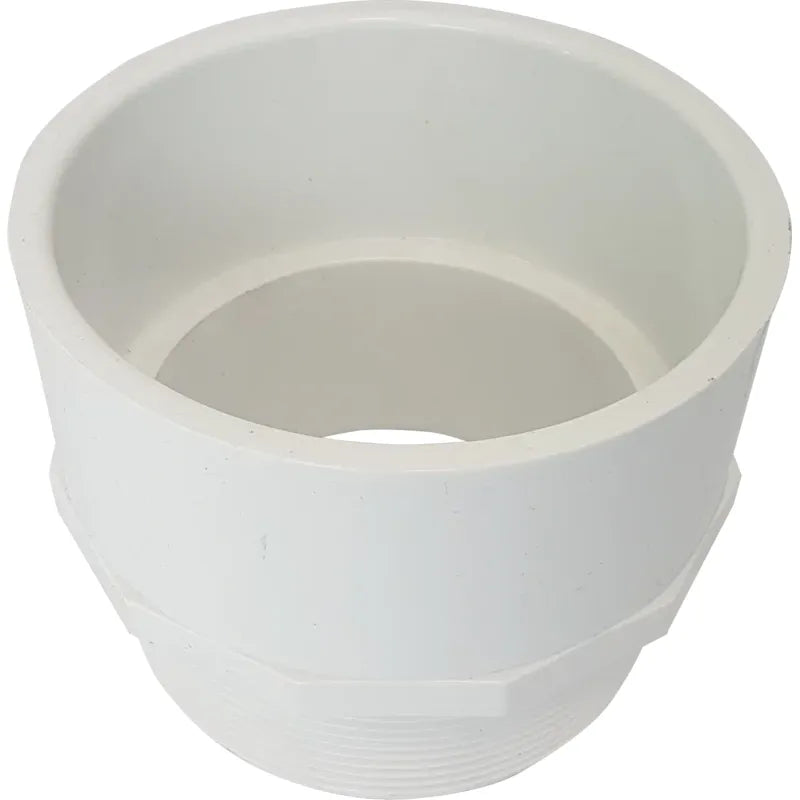

Riser pipe
330409 Socket 4"
male thread

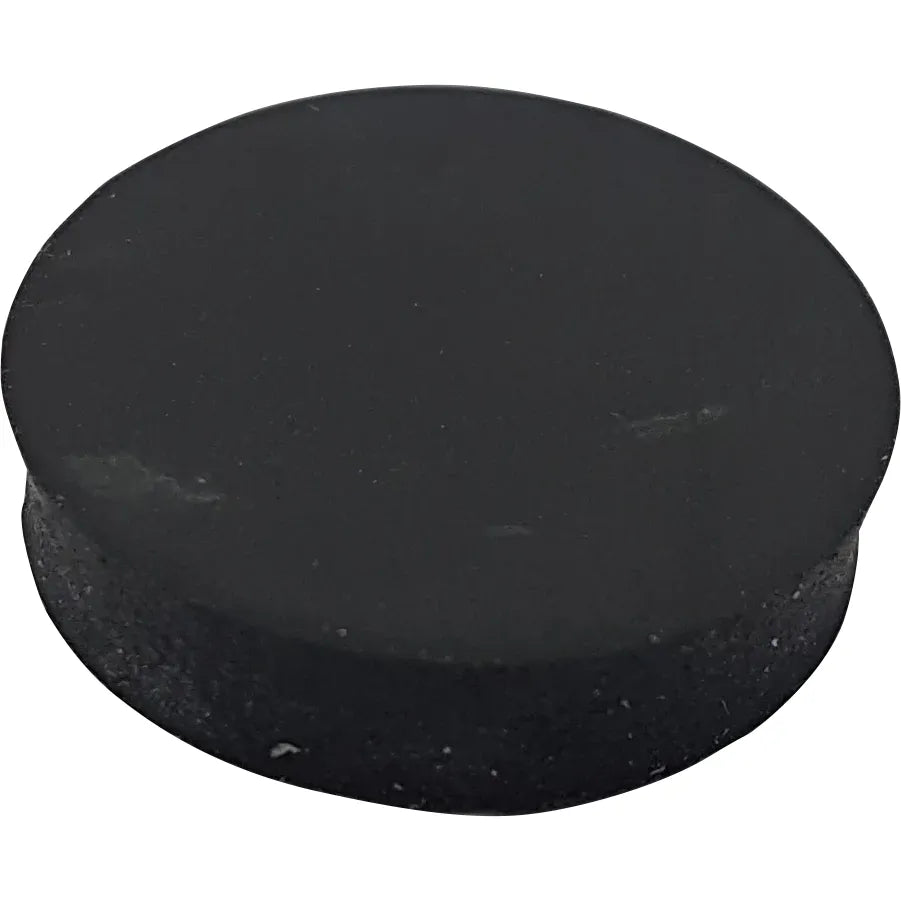

Rubber seal for
330512 Valve piston suitable for
Farmdrinker

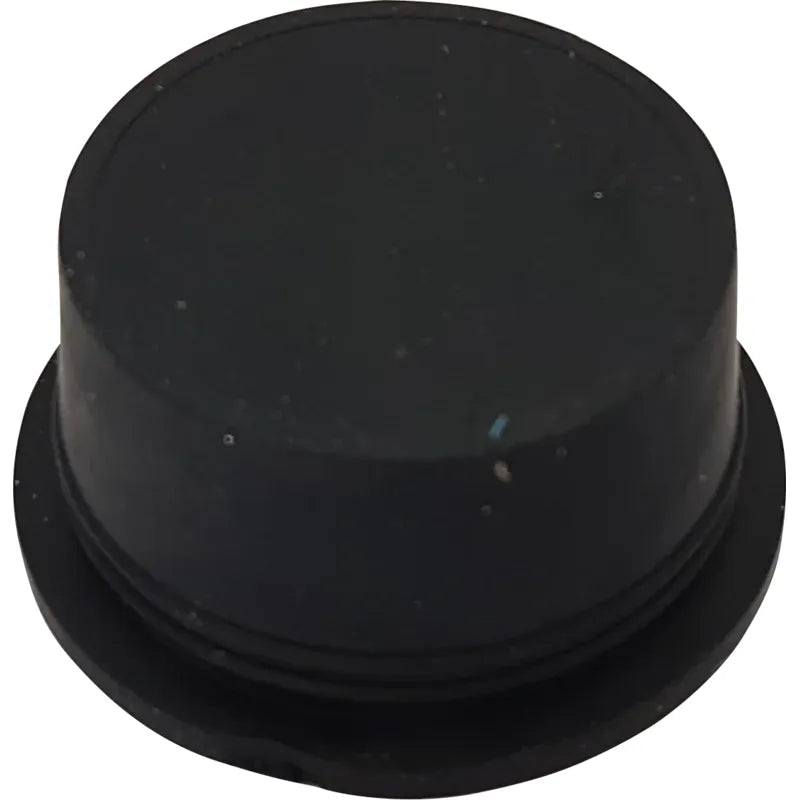

Rubber stopper for
330322 Outlet opening
Farmdrinker
