Valve double trough drinker model 520

Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
Ventil-Doppel-Trogtränke Modell 520 PATURA
  • Ideal for playpens with 30-40 animals
  • High water flow of up to 30 l/min for high-performance animals
  • Low water consumption, optimum hygiene, self-cleaning

Artikelnummer: 1300520

Valve double trough drinker model 520

Artikelnummer: 1300520
  • Ideal for playpens with 30-40 animals
  • High water flow of up to 30 l/min for high-performance animals
  • Low water consumption, optimum hygiene, self-cleaning


incl. VAT Shipping information

Delivery time 3-5 working days – 📦 Parcel shipping

/
twint kauf pf mc visa paypal ae

Galvanized protective bracket for trough drinker models 490, 520 and 620 Default Title

Mounting bracket for posts 1 ¼" - 2" Default Title

Valve heater 24 V, 7 W Default Title

Frost protection heating cable 200 cm - 24V / 20W

Transformer Mod. 100 (24V / 100W)

Frost protection thermostat Default Title

Pipe contact thermostat Default Title

Ideal für:

Milchkuh Mutterkuh Bulle

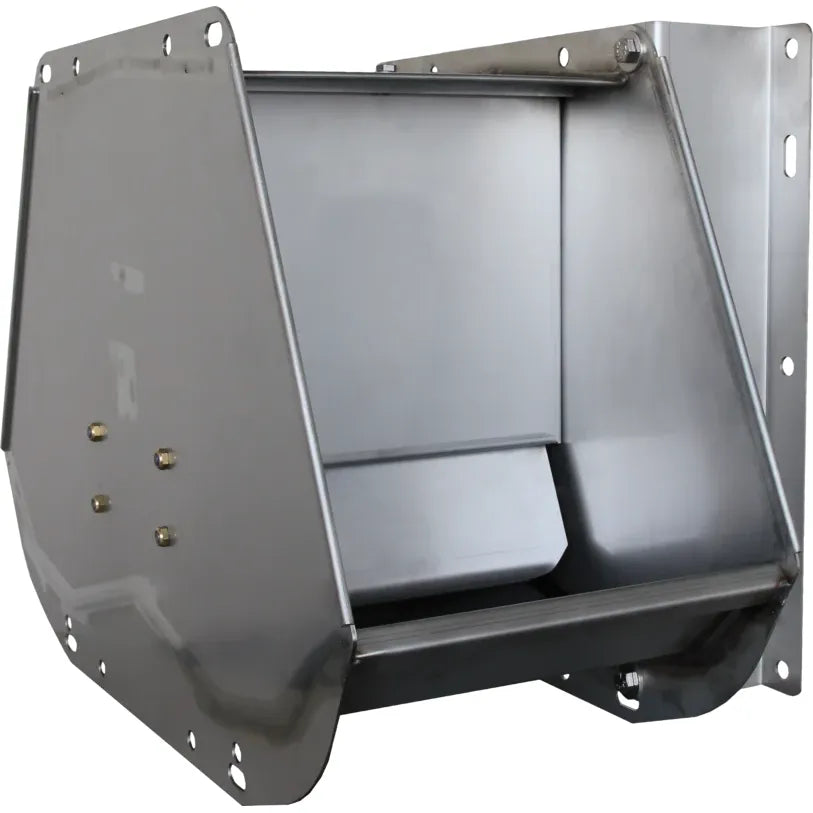

SUEVIA double-valve trough drinker Mod. 520 stainless steel

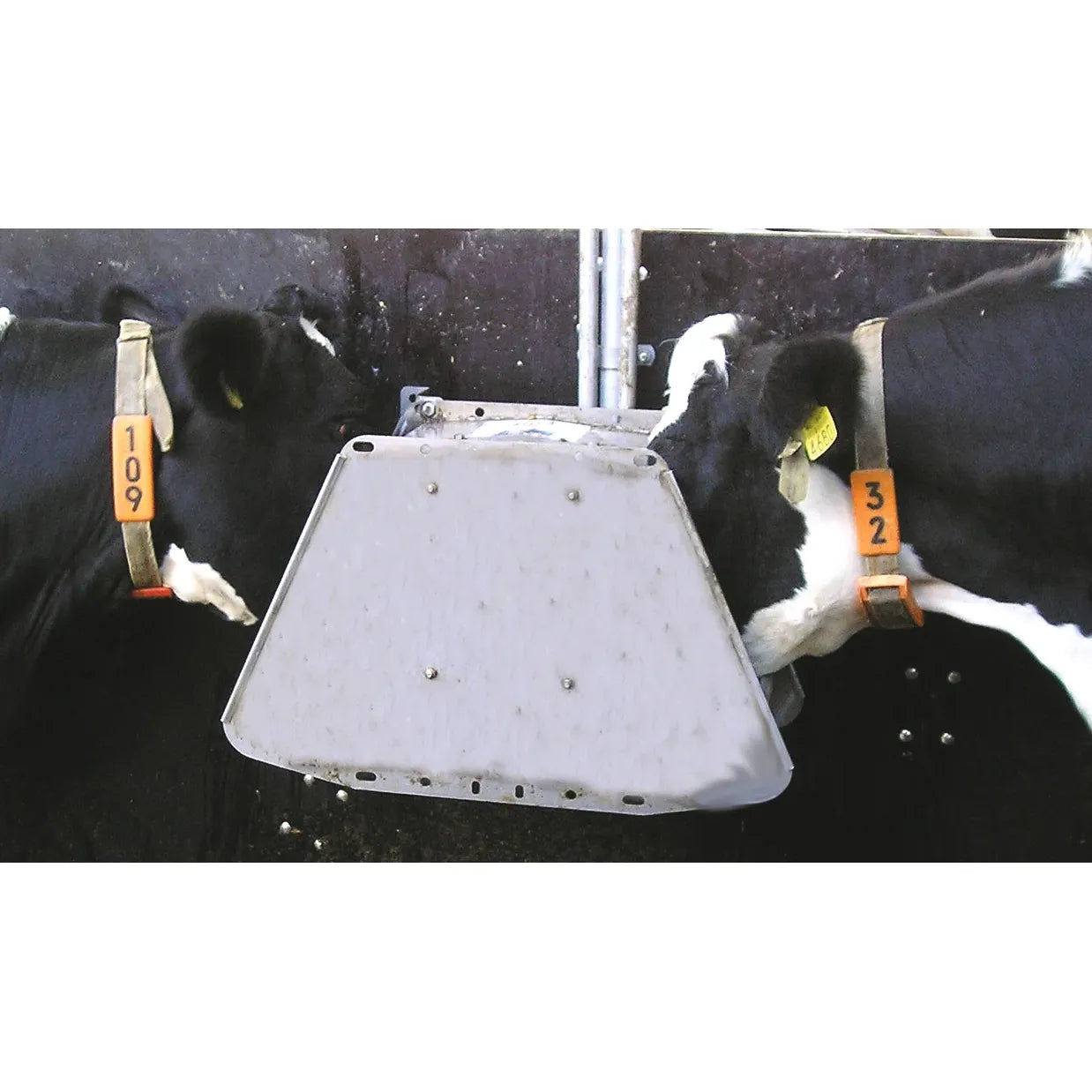

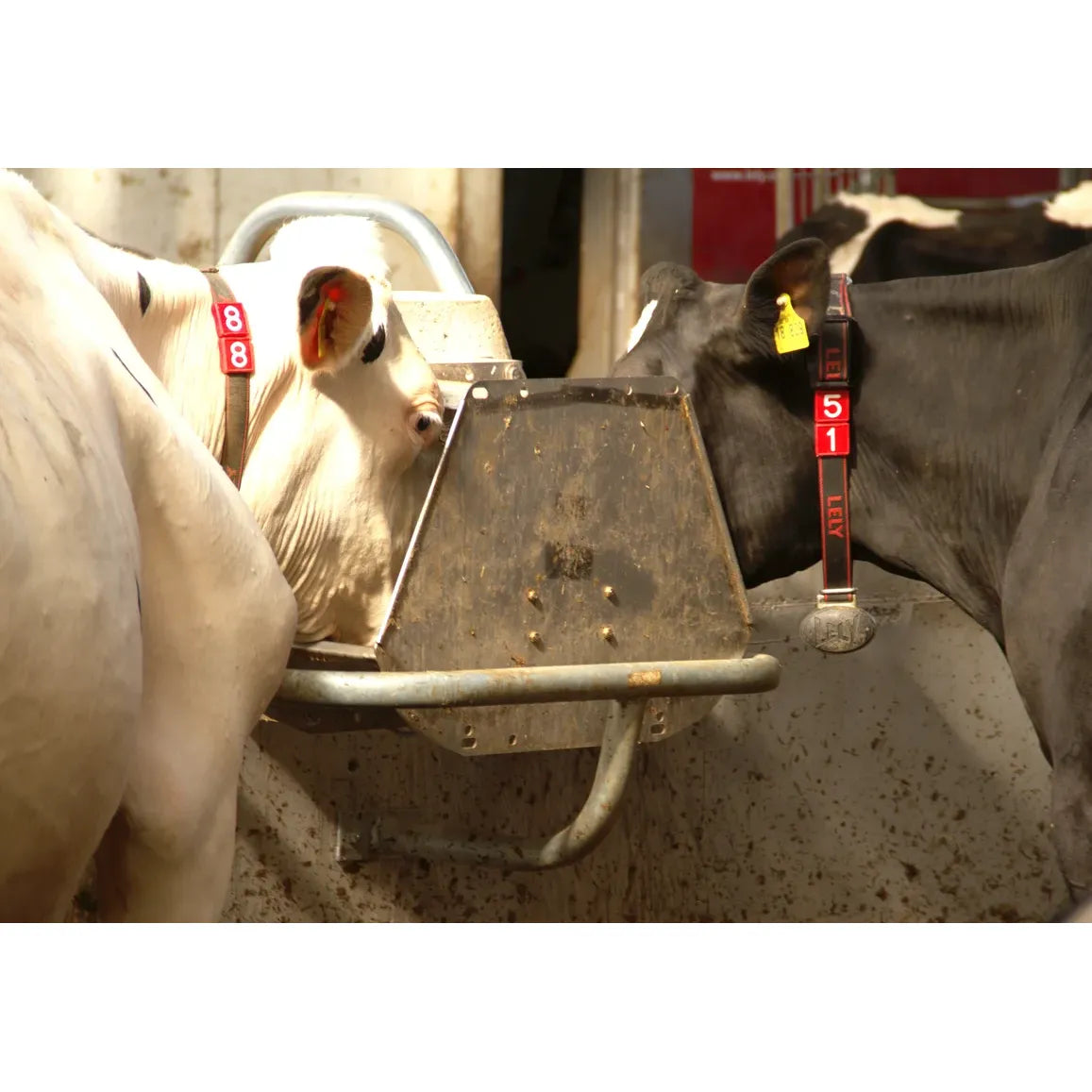

  • Drinker with two opposite drinking points for 30 - 40 animals
  • No displacement battles like at longitudinal troughs, thus simultaneous water intake of two animals possible
  • Stainless steel
  • Lateral connection 3/4"

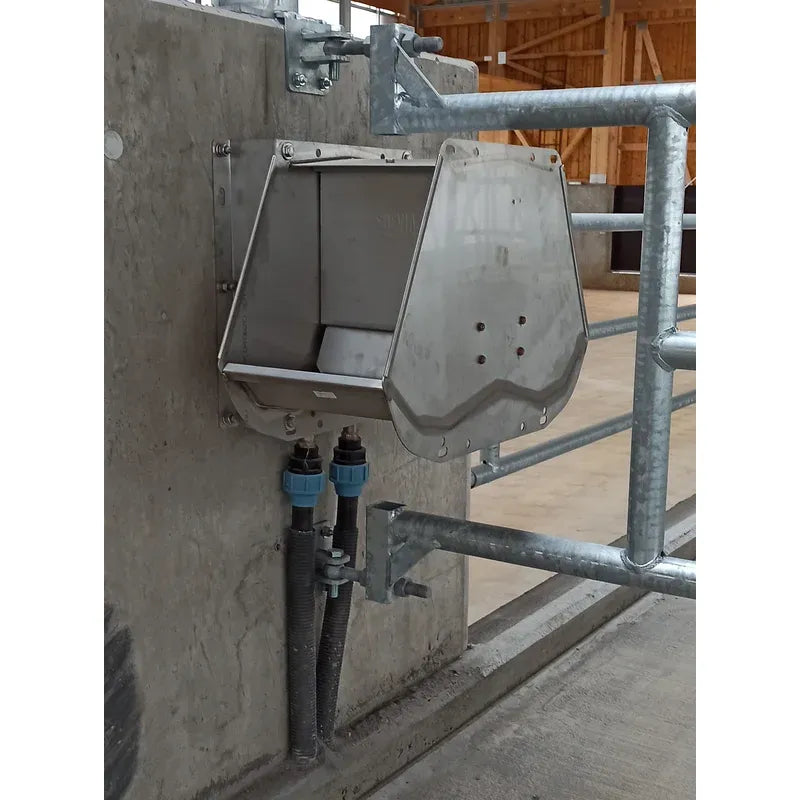

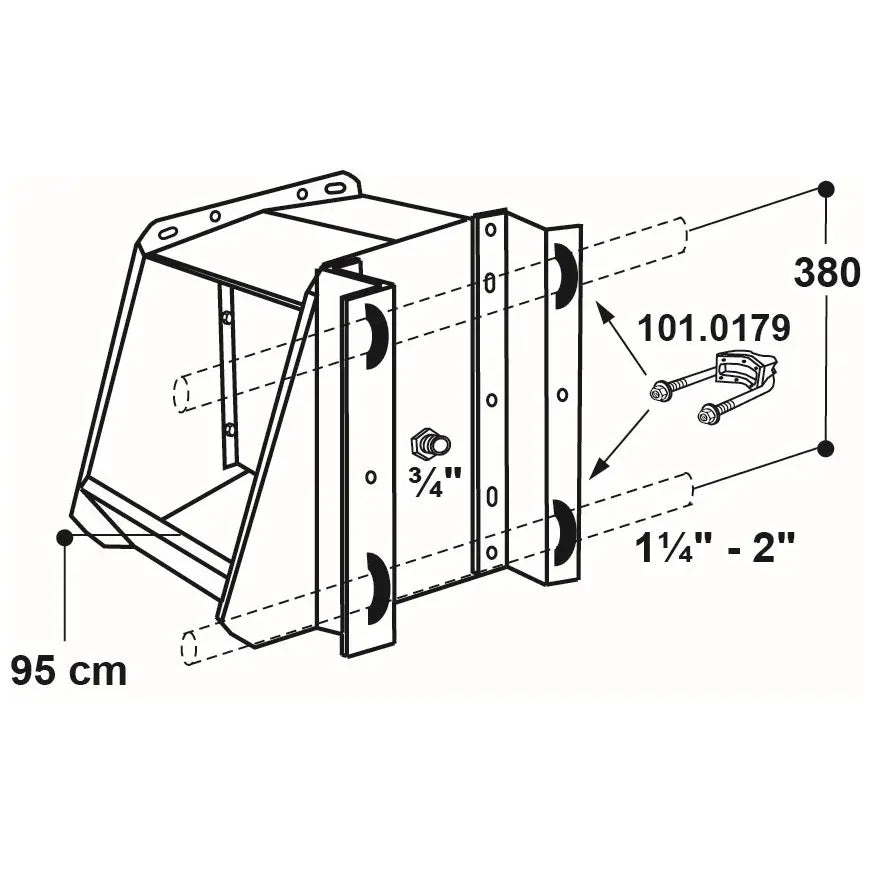

  • Wall or pipe mounting
  • Inlet up to 30 l / min at 5 bar
  • 2 drinking points
  • High water inflow up to 30 l / min: ideal for high-performance animals
  • Low water level for optimum hygiene and self-cleaning
  • Low water consumption: no pouring out necessary

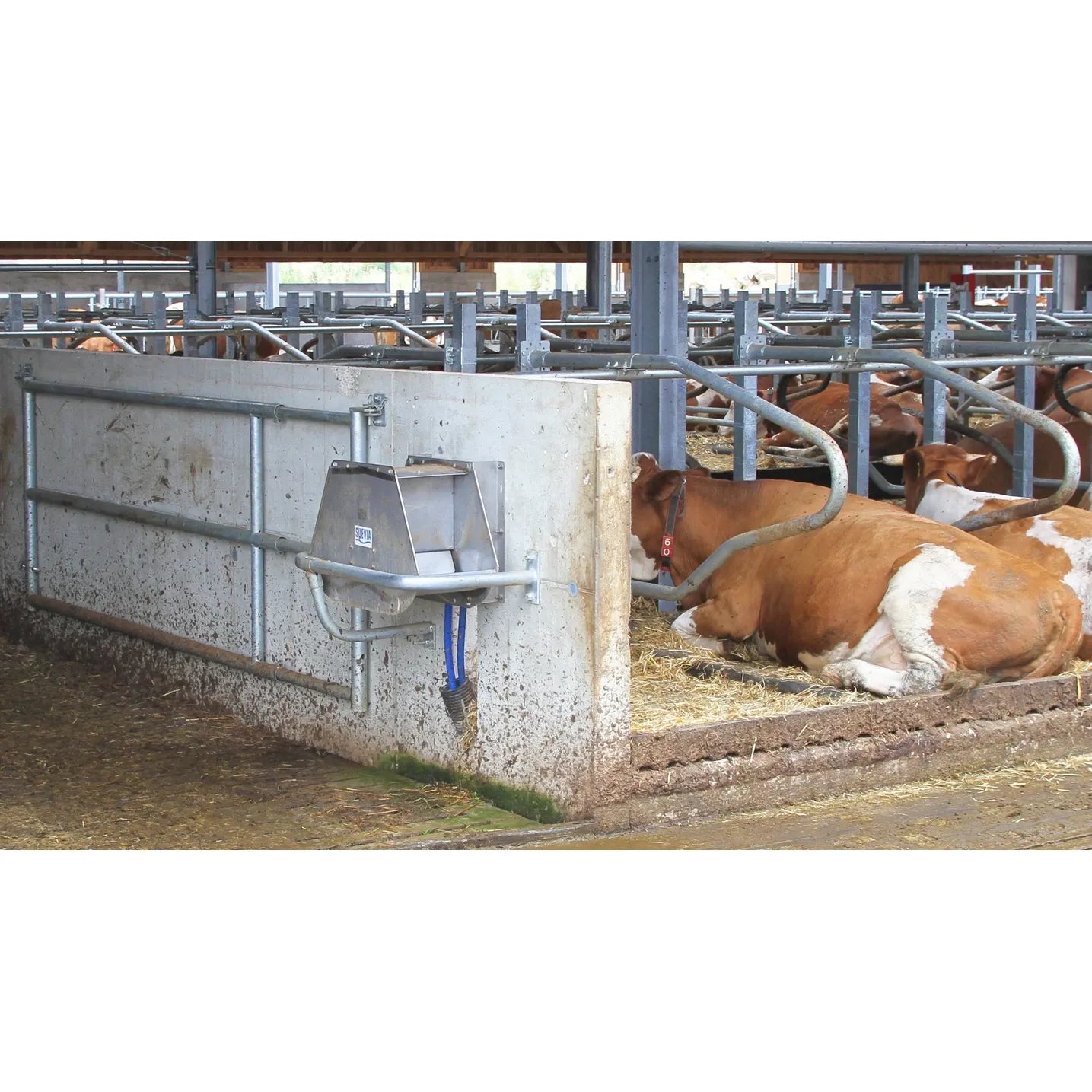

  • Ideal for loose housing
  • Assembly instructions

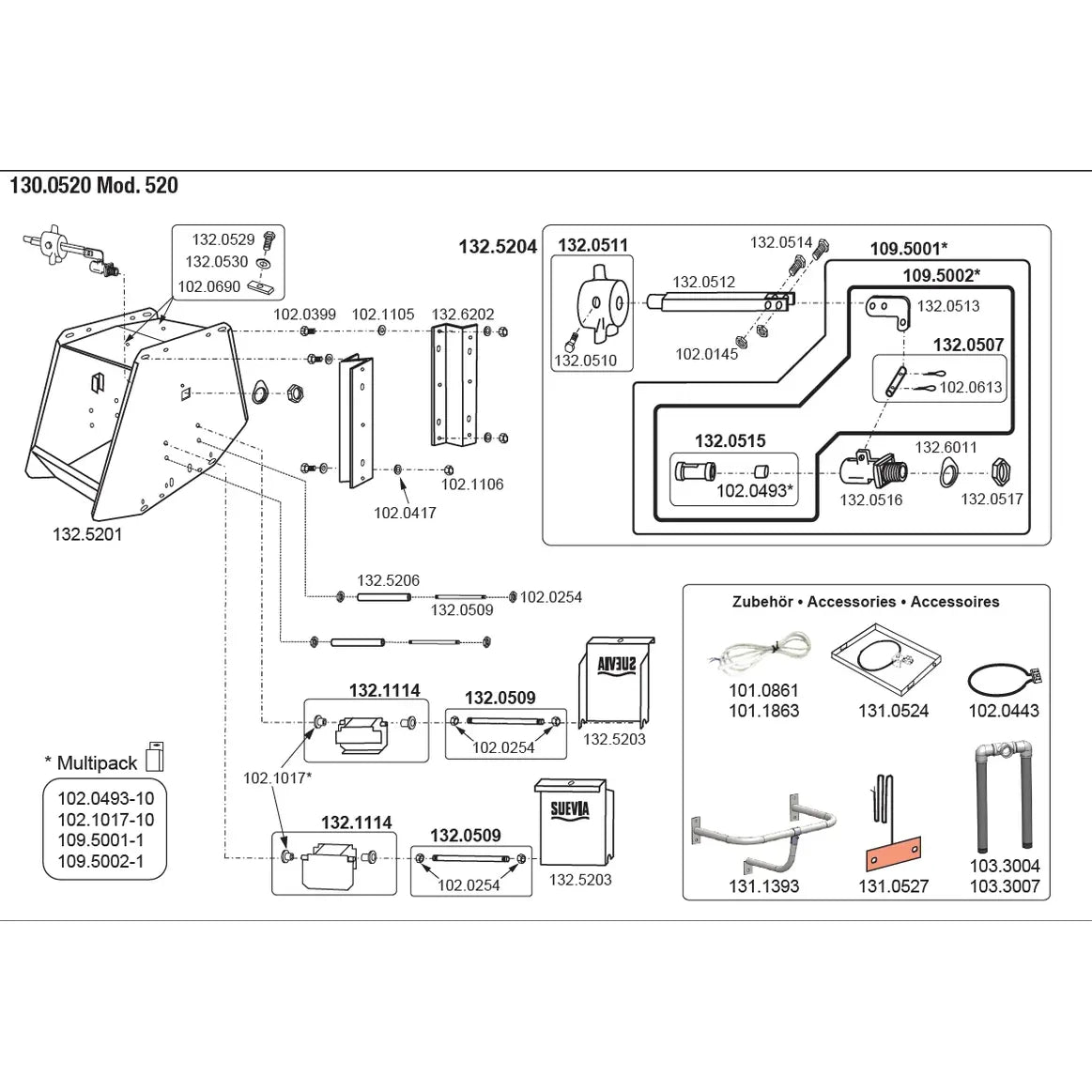

  • Spare parts
Downloadbereich:
